As electric vehicles (EVs) become more popular and widespread, the need for efficient, reliable, and standardized charging infrastructure is becoming increasingly important. Among the various charging protocols, CHAdeMO and CCS (Combined Charging System) stand out as two of the most prominent DC fast-charging standards. While both offer significant advantages in terms of speed and convenience, they operate on different principles and have unique features that cater to different market needs.
In this article, we will explore what CHAdeMO and CCS are, how they compare, and which one might be best suited for different EV owners and charging scenarios.
What is CHAdeMO?
CHAdeMO, short for CHArge de MOve, is a fast-charging standard designed for electric vehicles. It was developed by Nissan in collaboration with several other Japanese companies, and has been in use since 2010. Over the years, CHAdeMO has become a well-established and widely adopted DC fast-charging standard, particularly in Japan and parts of Asia.
How CHAdeMO Works
CHAdeMO is a DC fast-charging system, which means it charges EVs by supplying direct high-voltage current from the charger to the vehicle’s battery. This results in much faster charging times compared to traditional AC EV charging. A typical CHAdeMO charging station is rated at 50 kW or higher, enabling it to charge an electric vehicle to 80% in under an hour.

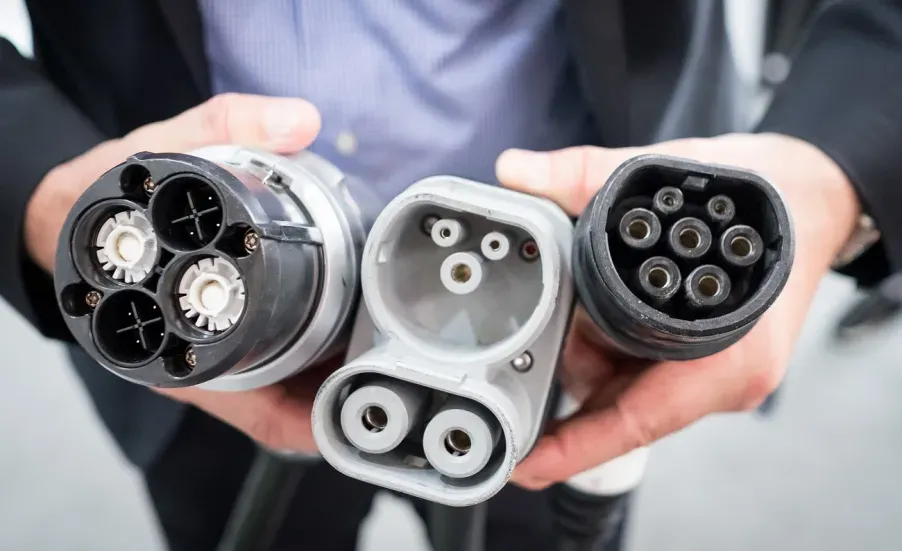

The charging process utilizes a CHAdeMO connector, which is distinct from the Type 1 and Type 2 connectors typically used in Europe. CHAdeMO connectors include additional pins that facilitate DC fast charging. One of the key features of CHAdeMO is its bidirectional charging capability. Not only can electricity flow from the charger into the EV, but it can also flow the other way—from the EV back to the grid or even to a house. This makes CHAdeMO particularly useful for applications like Vehicle-to-Grid (V2G) technology, where an EV can supply power to the grid during peak demand periods.
What is CCS (Combined Charging System)?
The Combined Charging System (CCS) is a standardized charging protocol developed to provide both AC and DC charging through a single connector. It is increasingly becoming the go-to standard for electric vehicle charging, particularly in Europe and North America. The CCS system simplifies the charging process by integrating both AC and DC charging options into one interface, reducing the need for multiple charging connectors.
How CCS Works
CCS allows for both AC charging (at lower speeds) and DC fast charging (at higher speeds), using the same unified connector. It typically operates through the Type 2 connector in Europe and the Type 1 connector in North America, with additional pins for DC charging. The CCS protocol is designed for compatibility with a range of EV models from major automakers like BMW, Volkswagen, Ford, and General Motors.
In terms of charging speed, CCS is known for being one of the fastest options available. CCS chargers can deliver up to 350 kW, enabling EVs to charge to 80% in as little as 30 minutes, depending on the vehicle’s charging capabilities. This makes CCS an appealing option for long-distance travelers or commercial fleets that require fast turnaround times for their vehicles.
Comparison: CHAdeMO vs. CCS
When comparing CHAdeMO and CCS, there are several factors to consider, including charging speed, availability, cost, compatibility, and features. Let’s break down these differences in more detail.
|
Factor |
CHAdeMO |
CCS |
|
Charging Speed |
Up to 50 kW, charging to 80% in less than an hour |
Up to 350 kW, charging to 80% in as little as 30 minutes |
|
Charging Options |
DC fast charging only |
AC and DC charging through a single connector |
|
Compatibility |
Compatible with Nissan, Mitsubishi, and other vehicles |
Compatible with most major automakers (BMW, Volkswagen, GM, etc.) |
|
Bidirectional Charging |
Yes (Vehicle-to-Grid capability) |
Yes (Vehicle-to-Grid capability) |
|
Availability |
Widely available in Japan and parts of Asia |
Common in Europe, North America, and expanding globally |
|
Cost |
Generally less expensive than CCS |
Typically more expensive, especially for fast chargers |
|
Adoption |
Rate Widely adopted in Japan and Asia |
Increasingly common in Europe and North America |
Advantages of CHAdeMO
Widespread Availability in Japan and Asia: CHAdeMO charging stations are particularly common in Japan, where it was developed, and other parts of Asia. For Nissan Leaf owners and drivers of other CHAdeMO-compatible vehicles, this provides an extensive and accessible network of charging stations.
Faster Charging Times
While CCS can charge an EV to 80% in as little as 30 minutes, CHAdeMO chargers generally take about an hour for a similar charge. This difference might be negligible for some drivers but could be important for those who require faster turnaround times.
Bidirectional Charging
CHAdeMO supports Vehicle-to-Grid (V2G), meaning an EV can return power to the grid or provide power to a home. This feature is becoming more important as renewable energy adoption grows, enabling EVs to act as mobile energy storage units.
Compatibility with Popular EVs
Vehicles like the Nissan Leaf, Mitsubishi i-MiEV, and several other Japanese EVs are built to support CHAdeMO. This makes CHAdeMO a solid choice for owners of these vehicles.
Lower Charging Costs
CHAdeMO charging stations are generally less expensive to install and operate compared to CCS chargers, which means users may experience lower charging fees in some areas.
Advantages of CCS
Broad Compatibility with Major Automakers: One of the key benefits of CCS is its wide compatibility with a variety of electric vehicles from major automakers, including BMW, Volkswagen, General Motors, Ford, and others. This makes it a more versatile option for a broader range of EV owners.
Faster Charging Speed
CCS chargers can deliver up to 350 kW of power, allowing for a much faster charge compared to CHAdeMO. Many CCS stations can charge an EV to 80% in as little as 30 minutes, which is ideal for long-distance travel and commercial fleets.
Dual Charging Modes (AC & DC)
Unlike CHAdeMO, which is limited to DC fast charging, CCS supports both AC and DC charging. This provides more flexibility for drivers and means that a single connector can handle a wide range of charging scenarios.
Wider Availability in Europe and North America
CCS is rapidly becoming the preferred charging standard in Europe and North America, where its charging infrastructure is growing at a faster rate. Many highway corridors and urban locations feature CCS chargers, making it a convenient choice for many EV drivers.
Future-Proof
As more automakers adopt CCS and as fast-charging technology improves, CCS is poised to remain a key standard for electric vehicle charging, with an expanding network of ultra-fast chargers (up to 350 kW).
Which Charging Standard is Right for You?
The decision between CHAdeMO and CCS ultimately comes down to your specific vehicle, location, and charging needs.
If you own a Nissan Leaf or other vehicles that support CHAdeMO, and you live in or frequently travel to regions like Japan or East Asia, CHAdeMO might be the best option for you. The charging infrastructure is well-established in these areas, and its bidirectional charging capabilities could be a significant advantage.
If you drive a BMW, Volkswagen, Ford, or other vehicles that support CCS, and you reside in Europe or North America, CCS offers faster charging times and a growing network of stations, making it a highly convenient choice for long-distance travel and everyday charging.
Conclusion
Both CHAdeMO and CCS are vital charging standards that cater to different EV owners and needs. While CHAdeMO has proven reliability and is the dominant standard in Asia, CCS is rapidly becoming the global standard due to its dual charging capabilities and faster charging speeds. As the world shifts toward a more electrified future, both standards will play crucial roles in shaping the EV charging infrastructure, ensuring that all electric vehicle owners have the ability to charge conveniently and efficiently.
