As electric vehicles (EVs) become more popular, the need for efficient and rapid charging infrastructure is growing just as quickly. EV charging is categorized into three levels—Level 1, Level 2, and Level 3—each offering different charging speeds and capabilities. Among these, Level 3 charging stations stand out as the fastest and most powerful option currently available for public and commercial use.
Often referred to as DC Fast Charging (DCFC), Level 3 chargers are engineered for speed and efficiency, capable of delivering power outputs ranging from 50 kilowatts (kW) to over 500 kW. However, not all EVs are designed to take advantage of the highest speeds offered by Level 3 chargers. The actual charging rate is limited by the maximum input power the vehicle can accept. For example, if your EV supports a maximum of 50 kW, plugging into a 350 kW charger won’t make it charge any faster—it will simply charge at its own top speed.
This article explores the technology behind Level 3 charger, how it differs from Level 1 and Level 2 charging stations, and the implications for EV drivers, property owners, and fleet operators.
To understand how Level 3 charging works, it's essential to first understand the difference between alternating current (AC) and direct current (DC):
AC power is the type of electricity that comes from the grid and powers our homes and businesses.
DC power is the type of electricity stored in batteries—including those found in EVs.
EV batteries can only store DC power. This means that at some point, the electricity from the grid (AC) needs to be converted to DC before it can be stored in the battery. The key difference between the three levels of EV charger lies in where and how quickly that AC-to-DC conversion occurs.
In Level 1 and Level 2 charging, the AC-to-DC conversion happens inside the EV using an onboard charger. This process is limited by the capacity of the onboard system, which restricts how fast energy can be delivered to the battery.
Level 1 Charging: Uses a standard 120-volt household outlet. It’s the slowest method and typically adds about 2 to 5 miles of range per hour of charging.
Level 2 Charging: Uses a 240-volt outlet, similar to what’s used for appliances like dryers or ovens. It can deliver 10 to 60 miles of range per hour, making it suitable for residential, commercial, and workplace settings.
Unlike Levels 1 chargers and Level 2 chargers, Level 3 chargers handle the AC-to-DC conversion externally, in the charger itself. This bypasses the vehicle’s onboard charging limitations and feeds DC power directly into the battery, significantly reducing charging time.
This external conversion allows Level 3 chargers to deliver much higher power levels—typically between 50 kW and 350 kW, and even up to 500 kW with ultra-fast chargers. As a result, many EVs can charge from 20% to 80% in 15 to 45 minutes, depending on the vehicle and battery capacity.
The infrastructure requirements for Level 3 charging are much more demanding than for Level 1 chargers or 2 chargers.
Level 2 Charging: Operates on a 240-volt circuit, similar to residential appliances.
Level 3 Charging: Requires a 480-volt three-phase power supply, commonly found in industrial and commercial environments.

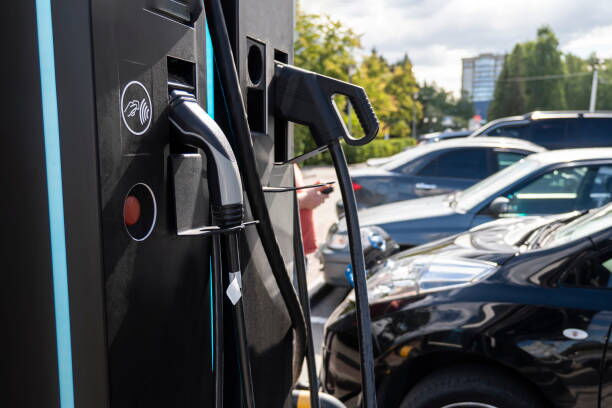

Due to their high energy demand, Level 3 chargers are not suitable for home installation and are typically installed at public charging stations, rest stops, fleet depots, and commercial properties.
Level 3 charger equipment is significantly larger and heavier than Level 2 chargers. Some Level 3 charging units can weigh upwards of 500 pounds, requiring a more complex installation process that includes secure mounting and robust cooling systems to manage the heat generated during high-speed charging.
Additionally, the plug types used for Level 3 charging differ from those used in Level 2 chargers:
Level 2 Chargers: Use the J1772 connector, a standard for most North American EVs.
Level 3 Chargers: Use one of the following plug types:
CCS (Combined Charging System): The most widely adopted fast-charging connector in North America and Europe.
CHAdeMO: An older standard, mostly used by Asian EV models.
Tesla Supercharger Connector: Proprietary to Tesla vehicles, though adapters are available for compatibility.
One of the biggest advantages of Level 3 charging is time savings.
|
Charging Level |
Voltage |
Power Output |
Charging Time (Typical) |
Range Added (per 30 mins) |
|
Level 2 |
240V |
3.3–19.2 kW |
4–8 hours (full charge) |
10–30 miles |
|
Level 3 (DCFC) |
480V+ |
50–500 kW |
15–45 mins (20–80% charge) |
60–200+ miles |
These are estimates and vary depending on battery size, state of charge, ambient temperature, and the car’s charging capacity.
Because of their high cost and power demands, Level 3 chargers are best suited for specific applications:
Public Charging Stations: Located along highways and in urban centers to reduce range anxiety and enable long-distance travel.
Fleet Charging: Ideal for delivery vans, buses, and ride-share vehicles that operate continuously and need rapid turnaround.
Commercial Properties: Businesses like shopping centers, hotels, and gas stations use Level 3 chargers to attract EV drivers.
Level 3 charger isn’t always necessary for every driver. Many EV owners who charge overnight at home or during the day at work may never need to use a DC fast charger. But for those who take road trips or operate in time-sensitive environments, Level 3 charger is essential.
While the benefits of Level 3 charging are significant, there are several challenges to consider:
Installing a Level 3 charger can cost $30,000 to $100,000+, depending on the equipment, permitting, site preparation, and power upgrades required. Commercial property owners must consider:
Utility upgrades
Demand charges
Installation costs
Maintenance and network fees
Not all EVs are equipped to handle fast DC charging. Some older or budget models may be limited to Level 2 charger speeds, even when plugged into a Level 3 charger.
High-speed charging places a substantial load on the electrical grid, especially when multiple chargers operate simultaneously. This can lead to peak demand charges for property owners and requires careful coordination with utility providers.
Compared to Level 2 chargers, Level 3 chargers are less widespread due to their high cost and complex installation needs. However, investment is growing rapidly as federal and local governments promote EV infrastructure through funding and incentives.
Despite the challenges, Level 3 charging offers a host of benefits, particularly for businesses and fleet operators:
Rapid charging minimizes downtime, allowing businesses and fleet vehicles to get back on the road quickly.
Commercial locations equipped with Level 3 chargers can attract more customers who prefer convenience and speed.
Offering EV charger aligns with corporate sustainability initiatives and may qualify businesses for tax incentives and green certifications.
As battery technologies evolve and vehicle ranges increase, demand for high-speed charging will continue to rise. Investing in Level 3 infrastructure today helps businesses stay ahead of tomorrow’s mobility trends.
Level 3 charging stations are revolutionizing the EV landscape by drastically reducing the time it takes to recharge. As the EV market grows, so does the need for fast, efficient, and accessible charging options.
Although the cost and infrastructure requirements for Level 3 chargers are significant, the return on investment—through increased customer satisfaction, commercial visibility, and environmental responsibility—can be substantial.
Whether you're a fleet operator looking to optimize turnaround, a business hoping to attract eco-conscious consumers, or a driver planning a long-distance trip, Level 3 charger provides the speed, power, and convenience to keep the EV movement accelerating forward.
As more automakers develop EVs with faster charging capabilities, and governments continue to invest in charging infrastructure, Level 3 stations will play an increasingly important role in the transition to a cleaner, electrified future.
