Introduction
As electric vehicles (EVs) become more prevalent on the roads, the need for reliable and efficient charging infrastructure has never been more critical. One of the most talked-about charging options is DC fast charging, which promises rapid battery replenishment for EVs. Unlike traditional charging methods, DC fast chargers offer significant time savings, but understanding when and how to use them optimally is key to preserving your vehicle's battery health and making the most of your charging sessions.
This guide will explore the workings of DC fast chargers, the ideal times to use them, and how they compare to AC chargers. Additionally, we'll delve into the factors that impact DC fast charging speed and provide advice on optimizing the process.
What Is DC Fast Charging?

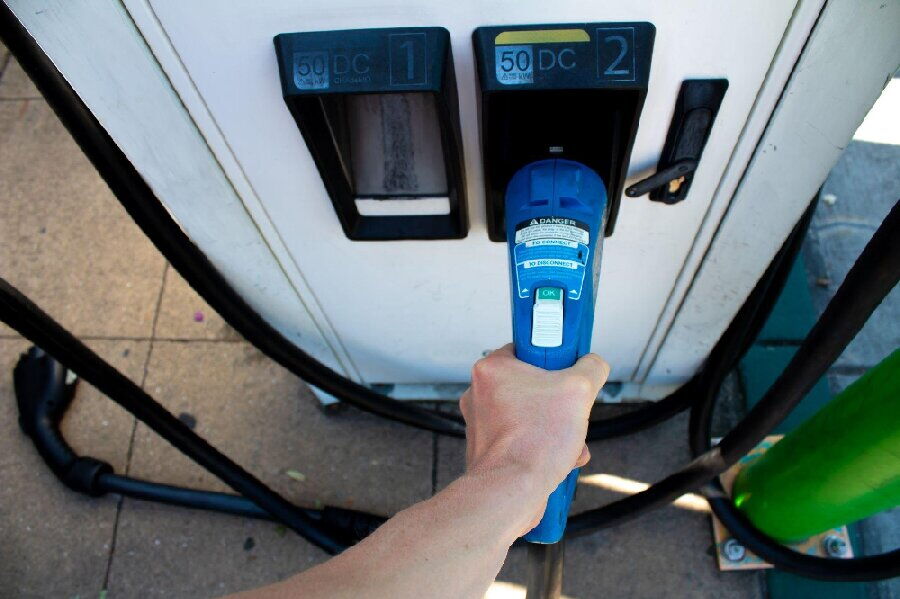

DC fast charging is a method that delivers direct current (DC) power directly to an electric vehicle’s battery, bypassing the vehicle's onboard charger. The DC fast charger connects directly to the battery, which allows for faster charging speeds. In contrast, alternating current (AC) charging, which is used by Level 1 and Level 2 chargers, requires the vehicle to convert AC power into DC power via the onboard charger.
This distinction is important because while AC charging is common and convenient—since it is similar to the electricity you find in household outlets—DC fast charging is used when rapid replenishment of the battery is necessary.
Why Use DC Fast Charging?

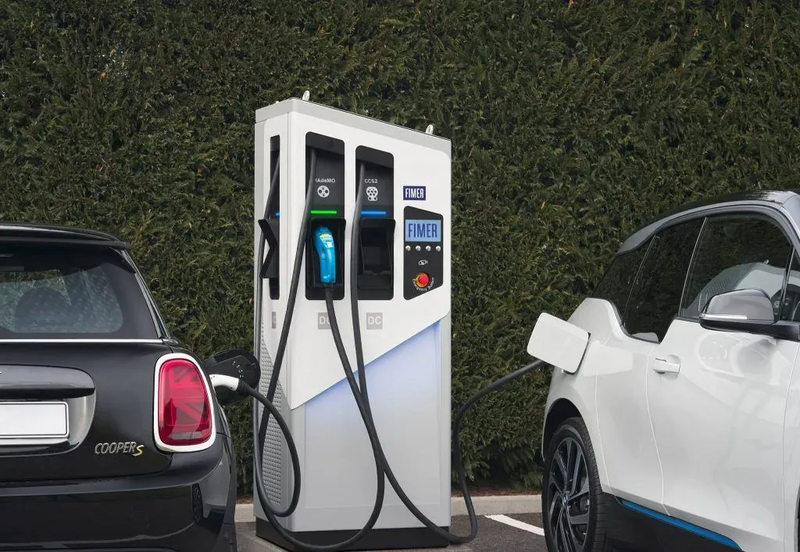

DC fast chargers are ideal when quick charging is required, typically during long-distance trips or when there is insufficient time for a full charge. These chargers are often located in public spaces like highways, shopping centers, and gas stations, where speed is essential to minimize charging time and continue on your journey.
However, DC fast charging isn’t meant for everyday use, especially when there is ample time for slower charging at home or work. Frequent use of DC fast charging can stress the vehicle’s battery and reduce its overall lifespan. This is because DC fast chargers deliver a high amount of power in a short period, generating heat, and increasing wear and tear on the battery over time.
How Does DC Fast Charging Work?
While typical home chargers use AC power, DC fast chargers utilize a different method. Here’s a breakdown of how it works:
AC vs. DC
In a Level 2 AC charger, power is delivered as alternating current (AC) to the vehicle’s onboard charger, which then converts it to direct current (DC) for the battery. On the other hand, DC fast chargers directly deliver DC power to the vehicle's battery, allowing much faster charging speeds.
Power Deliver
DC fast chargers are designed to deliver large amounts of power quickly. Depending on the charger and the vehicle’s battery acceptance rate, DC chargers can charge an EV from 0% to 80% in 30 to 60 minutes, whereas Level 2 chargers might take several hours to do the same.
Optimal Times for Fast Charging
The best times to use DC fast charging depend on a combination of factors, including the state of charge (SoC) of the vehicle’s battery, the vehicle’s battery acceptance rate, and the travel schedule.
State of Charge (SoC)
DC fast charging is most effective when your battery’s SoC is between 20% and 80%. Within this range, the battery is able to accept charge more quickly, reducing the total time spent at the charger. The charging rate typically slows down after 80%, to prevent overcharging and protect battery life.
Charging below 10% and above 80% should be avoided when using DC fast chargers. Charging from a very low SoC (below 10%) can cause the battery to heat up rapidly, accelerating degradation. Similarly, charging above 80% can stress the battery, leading to faster wear.
When in a Rush
If you are on a long-distance trip or facing time constraints, DC fast charging is ideal to quickly top off your battery and get back on the road. For instance, if you need to stop for a rest or lunch, a 30-minute fast charge might add enough range for the next leg of your journey.
Long-Term Use Considerations
For routine charging, DC fast charging is not the best option. Level 1 and Level 2 chargers, although slower, are better suited for daily use because they don’t stress the battery as much. These methods allow the battery to charge more gently, improving its long-term health.
AC Charger vs. DC Charger
To better understand when to use DC fast charging, it's crucial to distinguish between AC and DC charging:
AC Charging (Level 1 and Level 2)
AC chargers are the most common and are often used for home or workplace charging. Level 1 uses a standard 120-volt outlet, while Level 2 chargers use a 240-volt outlet.
AC charging is generally slower because the power is converted from alternating current to direct current within the vehicle’s onboard charger. This process takes more time, but is perfectly suited for overnight charging or daily top-offs when you don’t need to quickly replenish your battery.
AC chargers are convenient because they are readily available, and most homes and businesses have the necessary infrastructure to install them.
DC Fast Charging
DC chargers, on the other hand, are much faster but come with specific limitations. They can charge an EV to 80% in about 30-60 minutes, depending on various factors, but this rapid charging generates significant heat and can strain the battery over time.
Unlike AC chargers, DC fast chargers don’t require the vehicle to convert power; they directly supply DC power to the battery, which allows the charging process to bypass the vehicle’s onboard charging system.
Factors Affecting DC Fast Charging Speed
There are several factors that influence how quickly an EV can charge using a DC fast charger. These include:
1. Battery Pack Limitations
Each EV battery has a maximum charge acceptance rate, which is the maximum rate at which the battery can accept DC power. If the DC charger delivers more power than the battery can accept, the vehicle will limit the charging rate to protect the battery. For example, a charger rated at 150 kW may be connected to an EV that can only accept 100 kW, which means the charging time will be longer.
EV manufacturers are working to upgrade their batteries from 400V systems to 800V systems, allowing for higher charging rates and faster times, with more efficient charging overall.
2. Temperature
Both extremely hot and cold temperatures can affect charging rates. Batteries perform less efficiently in extreme temperatures, and cold weather, in particular, can significantly slow down charging. This happens because chemical reactions within the battery slow down in cold conditions.
High temperatures also cause the battery to generate more heat during the charging process, which can lead to throttling (reducing the charge rate) to prevent damage. This is why managing heat is critical to efficient DC fast charging.
3. State of Charge (SoC)
The SoC of the battery plays a crucial role in the charging rate. Generally, charging speeds are fastest when the battery is at a low SoC and slow down as the battery fills up. The charging rate significantly reduces after 80%, as this helps to preserve battery health and prevent overcharging.
4. Charging Infrastructure Limitations
DC fast charging stations have their own limitations in terms of the maximum power output they can provide. Most fast chargers today are limited to 200A to 300A. While some next-generation stations are pushing 500A capabilities, these are more expensive and harder to install, limiting their widespread adoption.
5. Heat Generation
DC fast charging generates heat, which is something that needs to be managed carefully. High currents flow through the cables, connectors, and battery, which increases the temperature of the system. If the temperature becomes too high, the charger will reduce the current to protect the components, leading to slower charging.
Managing heat effectively is essential, and standards like J1772 and IEC 62196 ensure that the temperature of the charger and connections remain safe.
Conclusion: When to Use DC Fast Chargers
DC fast chargers are an essential tool for EV owners who need quick charging during long trips or when time is of the essence. They are ideal for charging when your EV’s state of charge is between 20% and 80% to maximize charging efficiency and protect the battery.
However, frequent use of DC fast chargers can lead to battery degradation due to the high charging speeds and heat generated. As such, for daily use, it’s better to rely on slower AC charging options like Level 1 or Level 2 chargers.
Understanding when and how to use DC fast charging stations effectively can help you maintain your EV’s health while ensuring that you have the flexibility to quickly recharge when needed.
