As the electric vehicle (EV) market continues to grow, understanding the different types of charging systems is key to making the most of your EV experience. Among the most commonly discussed are Level 2 and Level 3 chargers, each offering unique capabilities for both home and commercial use. While they share the ultimate goal of charging electric vehicles, they differ significantly in terms of power output, installation costs, charging speeds, and their ideal use cases. In this article, we’ll explore the key differences between Level 2 and Level 3 charging and help you determine which option might be best for your needs.
What is a Level 2 Charger?
A Level 2 charger is an advanced charging system that is widely used for residential and commercial EV charging. Unlike the standard 120V outlet found in most homes (which is known as Level 1 charging), Level 2 chargers use a 240V outlet—similar to the type used by clothes dryers and other high-demand appliances. This higher voltage allows for faster charging times, making it ideal for users who need a reliable charging solution at home or work.
Level 2 chargers typically use the SAE J1772 connector, commonly referred to as a "J Plug," although Tesla vehicles require a proprietary connector (though adapters are available). The charger itself is often a box or pole, which houses the electronics and software necessary to communicate with your EV, manage the charging process, and ensure safe and efficient operation. These chargers can be installed in a variety of locations, including residential garages, parking lots, and commercial properties.
One of the primary advantages of Level 2 charging is its speed. While a Level 1 charger might take over 24 hours to fully charge an EV, a Level 2 charger can typically deliver a full charge in 4 to 8 hours, depending on the size of the vehicle's battery and the charger’s power output. For most people, Level 2 charging is ideal for overnight charging at home or for regular use at work.
What is Level 3 Charging?
Level 3 charging, also known as DC fast charging, is the cutting edge of EV charging technology. Unlike Level 2 chargers, which deliver alternating current (AC) to the vehicle's onboard charger, Level 3 chargers bypass the onboard charger entirely and deliver direct current (DC) power directly to the EV’s battery. This allows for significantly faster charging speeds and is designed to quickly recharge EVs during long trips or in high-traffic areas.
Level 3 chargers can provide a wide range of power outputs, typically between 50 kW and 350 kW, although newer, high-capacity models are pushing the upper limits of that range. For example, a typical Level 3 charger can add up to 100 miles of range in just 30 minutes, and in some cases, even more. The rapid charging speeds make Level 3 charging the go-to option for commercial charging stations along highways and for fleet operations where fast turnaround times are critical.
The key difference here is the speed and power delivery. With Level 3 charging, users can recharge an EV’s battery much faster than with Level 2 charging, making it possible to charge up and get back on the road in a fraction of the time. However, Level 3 chargers are typically much more expensive to install and require more advanced infrastructure than Level 2 chargers.

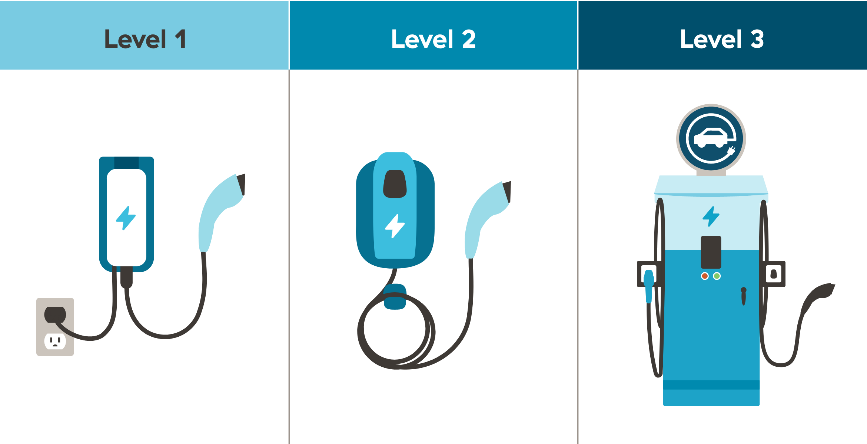

Level 2 vs. Level 3 Charging: Key Differences
To fully understand the differences between Level 2 and Level 3 chargers, it’s important to break down the various aspects that differentiate the two systems:
1. Power Requirements
Level 2 Charging: Requires a 240V AC outlet, similar to those used by electric dryers. The power delivery typically ranges from 3.3 kW to 19.2 kW, with the typical output being around 6 kW to 10 kW for home use.
Level 3 Charging: Operates using DC power and can deliver anywhere from 50 kW to 350 kW of power. This enables much faster charging, with higher-end models capable of charging EVs to 80% in as little as 20-30 minutes.
2. Physical Specifications
Level 2 Chargers: The equipment for Level 2 chargers is typically smaller, compact, and can be installed in a variety of settings, from residential garages to parking lots and workplaces. The charger is connected to the vehicle using a standard SAE J1772 plug or a Tesla-specific connector (with an adapter available for non-Tesla cars).
Level 3 Chargers: These chargers are significantly larger and require more specialized equipment. They are typically found in public charging stations or highway rest stops. The system includes high-power converters and complex infrastructure that are not suitable for home installation. The CHAdeMO or CCS (Combined Charging System) connectors are used for these chargers, with specific standards depending on the vehicle make.
3. Installation Cost
Level 2 Charging: Installation costs for Level 2 chargers can range from $500 to $2,500, depending on the complexity of the installation and the location. For home installation, the primary cost factors include the purchase of the charger, the need for a licensed electrician, and potential electrical panel upgrades.
Level 3 Charging: Level 3 chargers require significant investment, often costing between $50,000 and $150,000 to install, depending on the location and power requirements. These chargers require more advanced infrastructure and are typically installed in commercial or high-traffic locations.
4. Charging Time
Level 2 Charging: Charging times with Level 2 chargers typically range from 4 to 8 hours for a full charge, depending on the EV's battery size and the charger's power output. This is ideal for overnight charging or when your vehicle will be parked for several hours.
Level 3 Charging: Due to the high power delivery, Level 3 chargers can charge an EV to 80% in as little as 20-30 minutes, depending on the charger’s output and the vehicle’s battery size. This rapid charging makes Level 3 chargers the preferred option for long-distance travel and public charging stations along highways.
5. Use Cases
Level 2 Charging: Best suited for daily use at home, work, or other locations where the vehicle is parked for extended periods. This includes overnight charging or during working hours. It is ideal for drivers who have a predictable daily commute and need a reliable, cost-effective way to keep their EV charged.
Level 3 Charging: Perfect for long-distance travel, fleet operations, and high-traffic areas where quick charging is a necessity. Level 3 charging enables EV owners to quickly top up their batteries during stops, reducing downtime and making long trips more feasible without the need to wait for extended periods at charging stations.
Which Charging Option is Right for You?
When choosing between Level 2 and Level 3 charging, the decision largely depends on your specific needs and driving habits.
Level 2 Charging is the ideal choice for individuals who use their EV for daily commuting or regular local trips. It provides a convenient, efficient, and affordable solution for home or workplace charging, allowing users to top up their vehicle overnight or during the day while they are not using it.
Level 3 Charging is better suited for those who need fast charging while traveling long distances or for fleet operators who need to keep vehicles on the road for as long as possible. It’s also the ideal choice for public charging stations along highways where drivers need to quickly recharge and continue their journey without significant delays.
Conclusion
As the demand for EVs continues to grow, the charging infrastructure must evolve to meet the needs of both individual drivers and businesses. Level 2 chargers remain the standard for home and office use, offering a balance of cost-effectiveness and convenience for daily use. Level 3 chargers, on the other hand, represent the future of fast, high-capacity charging, enabling long-distance travel and commercial fleet operations to thrive in an increasingly electrified world.
Understanding the differences between Level 2 and Level 3 charging systems is crucial in making the right decision for your EV. Whether you prioritize convenience, cost, or speed, there is a charging solution tailored to your needs.
