Introduction
As the electric vehicle (EV) market continues to grow, the importance of a reliable and fast charging infrastructure becomes more critical. Among the various charging technologies available, the Combined Charging System (CCS) stands out as one of the most versatile and widely used rapid charging options. Offering both high-speed DC fast charging and the flexibility of AC charging, CCS provides an efficient solution for EV owners seeking to power up quickly on the go.
But what exactly is CCS, and why is it becoming the go-to charging method in many parts of the world? In this article, we will dive deep into the technical aspects of CCS, its types, benefits, and its impact on the future of EV charging.
What is CCS (Combined Charging System)?

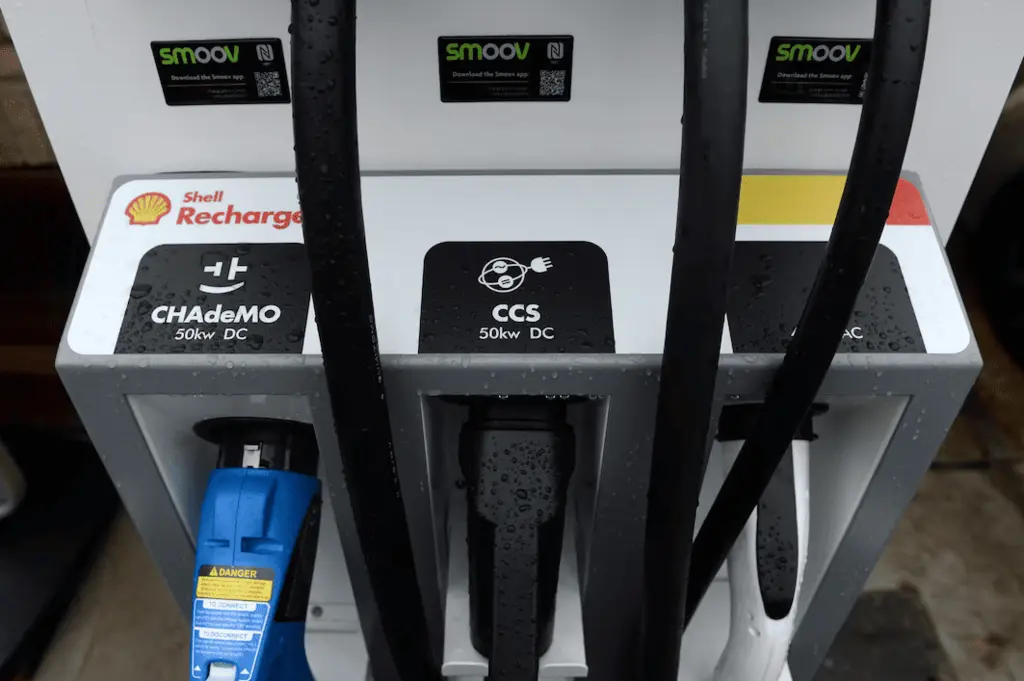

CCS is a fast-charging standard developed to address the needs of electric vehicle owners who require quicker charging times than traditional methods allow. Like other rapid charging systems such as CHAdeMO, CCS is designed to provide a fast charge for EVs, reducing downtime and increasing the convenience of owning and operating an electric vehicle.
The system itself is built upon the Type 2 EV charging connector, which is universally adopted for AC charging across Europe and parts of North America. What makes CCS unique is that it adds two additional high-voltage DC power lines to this Type 2 connector. These additional lines enable higher power delivery, allowing CCS to charge EVs much faster compared to standard connectors.
The name "Combined Charging System" refers to the fact that it combines both the capabilities of the Type 2 connector (used for AC charging) and the ability to fast-charge with DC power. This combined functionality makes CCS one of the most versatile and widely adopted charging standards globally.
Types of CCS Chargers
There are two main types of CCS chargers, each designed to meet the needs of different markets and vehicle configurations.
1. CCS Combo 1 (CCS1)
CCS Combo 1 is primarily used in North America and Japan. This version combines the SAE J1772 connector, which is the standard for Level 2 AC charging in these regions, with the additional DC fast-charging pins. The combination of AC and DC connectors allows for seamless compatibility across different charging scenarios.
2. CCS Combo 2 (CCS2)
CCS Combo 2, also known as IEC 62196-3, is the European version of the CCS standard. Like the CCS1, it uses the Type 2 connector for AC charging, but with the added DC fast-charging capability for rapid charging. This type is prevalent in Europe and other parts of the world where the Type 2 connector is the standard for AC charging.
While the primary difference between CCS1 and CCS2 lies in the AC connectors (J1772 for CCS1 and Type 2 for CCS2), both systems are capable of DC fast charging using the same style of connector. This ensures global compatibility for high-speed charging regardless of the region.
Benefits of CCS Chargers
As EV adoption increases, drivers are looking for charging options that not only offer speed but also convenience, cost-effectiveness, and accessibility. CCS charging stations tick all of these boxes, offering several distinct advantages over other charging systems.
1. Faster Charging Speeds
One of the main benefits of CCS charging is its ability to deliver high-speed charging. CCS chargers can refuel EVs at a rate of up to 350 kW, which is significantly higher than other rapid charging technologies such as Tesla’s Superchargers (which are limited to 250 kW). This means that CCS chargers can replenish a vehicle's battery much faster, helping to reduce the wait time for drivers.
For example, Lucid Motors, a leading EV manufacturer, has leveraged CCS technology to develop a 900-volt battery architecture. This allows the Lucid Air to charge up to 200 miles of range in approximately 12 minutes, making it one of the fastest-charging vehicles on the market.
2. Widespread Adoption by Multiple Brands
Unlike Tesla's Supercharger network, which is primarily limited to Tesla vehicles, the CCS charging standard is supported by many major automakers, including Hyundai, Kia, Volvo, Mercedes-Benz, and Lucid. This widespread adoption makes CCS chargers an ideal solution for owners of different EV models, ensuring that drivers have access to a vast and growing network of charging stations.
3. Plug-and-Charge Functionality
Much like Tesla's NACS system, CCS chargers also offer plug-and-charge functionality. This means that EV owners can simply plug their vehicle into a CCS charger and begin charging without the need for additional steps like authentication or app-based sign-ins. The simplicity and ease of this process make it incredibly convenient for EV drivers on the go.
4. More Charging Locations
While Tesla Superchargers have a higher density of charging stations in certain regions, CCS chargers are more widely distributed across Europe and North America. The larger number of CCS stations means that EV drivers are more likely to find a nearby charger, improving the accessibility of charging networks for all EV owners.
Disadvantages of CCS Chargers
While CCS chargers offer a range of benefits, they are not without their challenges. There are a few considerations and potential drawbacks to keep in mind when it comes to this charging system.
1. Complex Connector Design
The design of the CCS connector is more complex than some other charging systems, such as Tesla's NACS. The connector has separate pins for both AC and DC charging, which can make it bulkier and potentially less user-friendly for some drivers. This complexity can also lead to compatibility issues in some instances, particularly with older charging stations or vehicles.
2. Inconsistent User Experience
The user experience with CCS charging stations can vary significantly depending on the provider, the specific charging station, and the vehicle in use. This inconsistency can lead to confusion or frustration for drivers, especially if they encounter a station that is not well-maintained or if the charging process doesn't work as smoothly as expected.
3. Slower AC Charging
While CCS chargers excel at DC fast charging, they are not necessarily as fast when it comes to AC charging. For example, CCS supports AC charging at slower rates compared to dedicated high-power AC chargers like Tesla's destination chargers. This may be a limitation for EV owners who rely primarily on home-based AC charging solutions.
4. Infrastructure Development
Although the number of CCS charging stations is increasing, infrastructure development is still ongoing, particularly in less densely populated areas. As a result, there may be regions where CCS stations are less prevalent, limiting the convenience and accessibility of this charging standard for some EV drivers.
5. Cost of Implementation
The installation and maintenance of high-power CCS chargers can be expensive. These costs can be passed on to consumers in the form of higher charging fees, which could deter some potential EV buyers from opting for this system. As demand for CCS chargers grows, however, economies of scale may help lower costs over time.
CCS Charger Compatibility
CCS chargers are designed to be compatible with a wide range of EV models, particularly in regions where the standard is widely adopted. The compatibility of a vehicle with a CCS charger depends on the type of connector used (CCS1 or CCS2), which is determined by the regional charging standard.
In North America, vehicles using CCS1 connectors are compatible with CCS1 chargers, while in Europe, vehicles using CCS2 connectors can charge at CCS2 stations. EV manufacturers ensure that their vehicles are equipped with the appropriate connector for their intended markets, allowing for seamless charging experiences across different regions.
Conclusion
The Combined Charging System (CCS) is a key player in the evolution of electric vehicle infrastructure. Offering fast charging capabilities, widespread compatibility, and the potential for higher-powered charging, CCS is positioned to play a central role in supporting the growing demand for EVs worldwide. However, challenges remain in terms of infrastructure development and user experience, and these issues will need to be addressed as the technology continues to evolve.
As more automakers adopt CCS as the standard for their vehicles, and as charging infrastructure continues to expand, the future of CCS charging looks bright. For EV owners, this means greater convenience, faster charging, and more access to a rapidly growing network of charging stations, paving the way for a greener and more sustainable future.
