AC EV Chargers: A Comprehensive Guide to Electric Vehicle Charging Infrastructure

As the global shift toward electric mobility accelerates, the infrastructure needed to support electric vehicles (EVs) becomes increasingly critical. Among the many elements powering this transformation, AC EV chargers—specifically Level 1 and Level 2 chargers—play a foundational role. These chargers offer reliable, efficient, and affordable solutions for residential, workplace, and commercial settings, making them a cornerstone of the modern EV ecosystem.

This article dives deep into what AC EV chargers are, the different levels of charging available, the distinctions between AC and DC charging, and the key factors that influence charging performance. Whether you are an EV owner, charging station operator, fleet manager, or policymaker, understanding the nuances of AC charging is vital to optimizing electric vehicle usage.

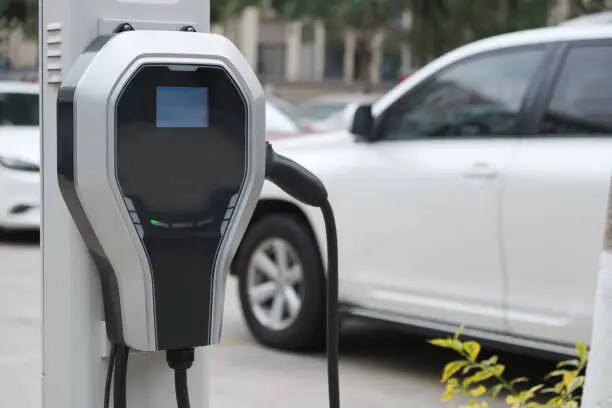

An AC EV charger delivers alternating current (AC) to an electric vehicle, which is then converted into direct current (DC) by the onboard charger (OBC) inside the EV itself. This conversion enables the energy to be safely stored in the battery.

There are two primary types of AC chargers:

Level 1 Chargers

Level 2 Chargers

Both are classified based on the input voltage and power output they provide.

Compared to DC EV chargers, which convert AC to DC externally before delivering it to the battery, AC chargers tend to be more affordable, easier to install, and better suited to locations where long-term parking is common, such as homes, workplaces, and hotels.

Level 1 chargers typically use a standard 120V (in North America) or 240V outlet (in some regions) and deliver charging speeds of up to 3.5 kW. These are ideal for overnight charging and are particularly well-suited for:

Two-wheelers and e-scooters

Compact passenger cars

Home garages or personal EV use

Low-mileage urban commuting

In emerging markets like India, Level 1 chargers can operate on Bharat AC-001 standards, delivering AC charging through Type 1 connectors. Some Level 1 chargers are even available in DC versions (known as DC Level 1), offering power outputs of up to 15 kW via Bharat DC-001, catering to smaller EVs that benefit from faster recharge capabilities.

Level 2 AC chargers operate at 240V (in North America) or 380–400V in other global markets, offering power outputs ranging from 7.2 kW to 22 kW. These chargers are more versatile and are commonly found in:

Residential complexes

Office buildings and commercial parking lots

Public parking garages and retail centers

Fleet charging depots

Level 2 chargers support a range of connectors such as Type 1, Type 2, GB/T, and Bharat AC-001, enabling compatibility with a wide range of EV models. Charging times can vary based on the vehicle, but most passenger EVs can be fully charged in 4 to 8 hours using Level 2 infrastructure.

Though technically Level 3 chargers are more commonly associated with DC fast charging, some high-power AC chargers (over 22 kW) are occasionally grouped in this category.

AC Level 3 Chargers: Operate between 200–1000V, delivering 22–43 kW of power, ideal for rapid top-ups at commercial stations, particularly for four-wheelers.

DC Level 3 Chargers: Provide up to 400 kW of power and are built for fast charging heavy-duty vehicles or long-distance travel. These are found at highway rest stops and transportation hubs and significantly reduce charging time to under 30 minutes in many cases.

For most daily and routine charging, however, Level 1 and Level 2 AC chargers remain the more practical and cost-effective solutions.

Choosing between AC and DC charging comes down to use case, budget, and infrastructure:

If you're primarily charging overnight at home, during work hours, or in places where cars stay parked for extended periods, AC charging offers a better cost-performance ratio. DC charging is most useful when time is of the essence, especially for taxi fleets, long-distance drivers, and commercial transport operations.

While the power output of a charger determines the theoretical maximum charging speed, real-world performance depends on several variables—many of them linked directly to the vehicle’s battery system:

Every EV battery has specific voltage and current limits. Larger batteries can typically absorb higher power, but charging speeds will still be governed by the vehicle’s Battery Management System (BMS) and internal onboard charger capacity.

Cold temperatures negatively impact battery chemistry, slowing down charging and reducing overall efficiency. During winter, energy diverted to cabin heating can reduce range by up to 40%. Modern EVs combat this with battery pre-conditioning, allowing batteries to be warmed in advance for faster, safer charging.

Like any lithium-ion battery, EV batteries degrade over time due to heat, age, and usage patterns. Degraded batteries may take longer to charge and offer reduced capacity, though most EVs have protective systems that help extend battery life under normal conditions.

The BMS is the "brain" of the EV battery. It controls charge rates, monitors cell voltages, balances temperature, and safeguards battery health. It plays a crucial role in regulating charging speed, especially at higher states of charge.

If the EV is drawing power during charging—say for heating, air conditioning, or entertainment systems—it will slow down charging by redirecting energy. Reducing these active loads can improve charging efficiency.

Charging speed is fastest when the battery is nearly empty, but as the SoC increases, charging slows down to prevent overcharging and overheating. This is why most fast chargers advertise charging from 20% to 80%, not full-to-full.

Cost-Effective Installation: Most homes already have the necessary wiring for Level 1 or Level 2 AC chargers. Installation costs are significantly lower than for DC systems.

Safety and Battery Health: Slower charging puts less thermal and electrical stress on battery cells, prolonging battery life.

Ideal for Long Dwell Times: Whether it’s overnight at home or 9 hours at work, AC charging aligns well with typical user behavior.

Energy Management Integration: AC chargers can easily integrate with smart energy systems, allowing load balancing, off-peak charging, and solar power optimization.

To fully realize the benefits of electric mobility, a layered charging network is essential. DC fast chargers handle peak needs, but AC chargers provide the backbone of daily EV usage.

AC EV chargers:

Encourage adoption by reducing entry barriers

Support fleet electrification at workplaces

Enable smart grid integration for cities

Offer scalable solutions for residential developments and apartment complexes

Governments and utilities worldwide are increasingly offering incentives and rebates for AC charger installations, reinforcing their role in the energy transition.

While DC fast charging gets most of the spotlight due to its high-speed appeal, it’s AC EV charging that does the heavy lifting in our daily lives. With its affordability, accessibility, and compatibility with a wide range of electric vehicles, AC charging is the most practical and sustainable solution for homes, workplaces, and urban centers.

As electric vehicles become more prevalent, understanding and investing in robust AC charging infrastructure will be vital to enabling widespread EV adoption. Whether you're an individual buyer or a large business planning an EV fleet transition, starting with AC EV chargers is a smart, strategic step toward a cleaner, electrified future.
