As the electric vehicle (EV) market continues its rapid growth, the infrastructure required to support this transition is evolving just as quickly. Central to this transformation is DC fast charging—a technology designed to dramatically reduce charging times and empower EV drivers with greater flexibility, convenience, and efficiency.
While Level 1 and Level 2 chargers serve an essential role for overnight or workplace charging, they often fall short for drivers with tight schedules, long commutes, or commercial demands. That’s where DC fast chargers (DCFCs), or Level 3 chargers, come into play. By bypassing the limitations of AC charging and delivering high-voltage direct current directly to the battery, these chargers have become critical infrastructure for long-distance travelers, ride-hailing drivers, logistics fleets, and public charging networks.
DC fast chargers are advanced EV charging stations that convert AC power from the electrical grid into direct current (DC) before delivering it directly to an EV’s battery. This makes them significantly faster than Level 1 (110–120V) and Level 2 (208–240V) chargers, which rely on the vehicle’s onboard converter to perform this conversion—often at limited power levels.
With a DC fast charger, vehicles can receive high-voltage power at up to 350 kW, depending on both the charging station’s capacity and the EV’s compatibility. The result is the ability to charge a battery to 80% in as little as 20–30 minutes, compared to the 8–12 hours typically required with a Level 2 charger.
For EV drivers on road trips or highway commutes, the ability to recharge quickly is essential. Fast chargers installed along major travel corridors allow drivers to cover long distances with minimal downtime.
Fleet operators—such as delivery services, taxis, and rideshare companies—depend on fast turnaround times. DC fast chargers enable vehicles to be quickly charged and back on the road, reducing idle time and increasing operational efficiency.
As more EVs hit the roads, public charging infrastructure needs to scale up. DC fast chargers are being installed in urban hubs, shopping centers, and service stations to meet the growing demand for fast, reliable charging solutions.
The electricity supplied to our homes and businesses from the grid is alternating current (AC). However, batteries—like those in EVs—can only store direct current (DC). So, to charge an EV battery, AC must be converted into DC.
Level 1 and Level 2 chargers: Use the car’s onboard AC/DC converter. These converters are limited in capacity due to size and cooling constraints. For instance, most Teslas have onboard chargers rated at 11.5 kW (at 48 amps), with some lower-end models (like the Tesla Model 3 RWD) limited to 7.7 kW (at 32 amps).
DC Fast Chargers: Contain large, external AC/DC converters within the charging station itself. This allows them to deliver significantly more power—ranging from 15 kW up to 350 kW—resulting in much faster charging.
By externalizing the power conversion, DCFCs bypass the vehicle’s internal limitations and directly feed DC power into the battery.
Power Electronics Unit (PEU) – Converts AC to DC and regulates voltage/current.
Cooling System – Maintains optimal temperature of internal components during high-power operation.
Communication Interface – Allows the EV and charger to “talk” to each other for optimal power delivery, safety, and charging efficiency.
Connector and Cable – Transmits high-current DC from the charger to the EV. These components are robust and often liquid-cooled in high-power systems (e.g., 350 kW).
User Interface/Software – Touchscreens, apps, or RFID systems used to initiate and monitor charging sessions.

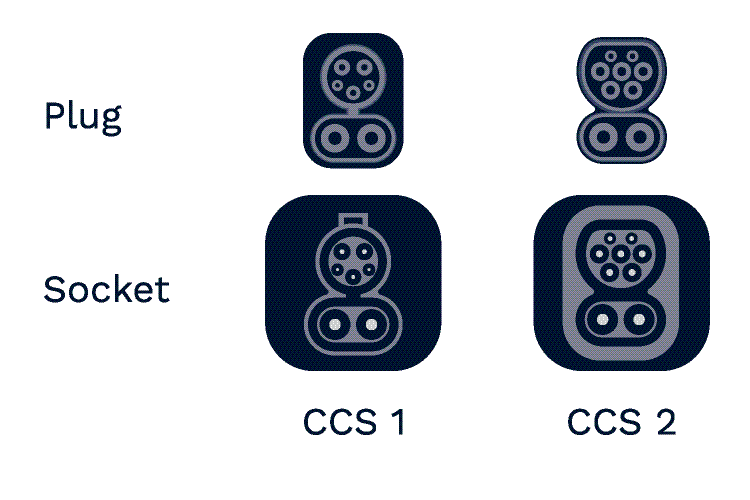

The Combined Charging System is one of the most widely adopted DC charging standards in North America and Europe. It combines AC and DC capabilities into a single connector design and supports power levels of up to 350 kW.
Benefits:
Universal compatibility for most new EVs.
Backed by major automotive OEMs.
Simple, streamlined plug-and-play experience.

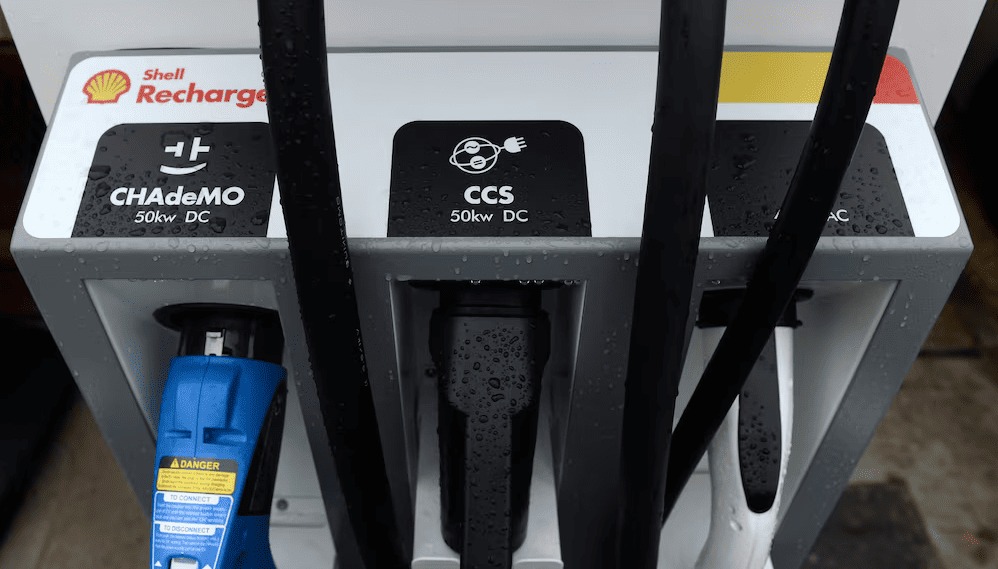

Developed in Japan, CHAdeMO was one of the first DC fast charging protocols. It supports power levels of up to 400 kW (with the latest version) and allows for bidirectional charging, enabling vehicle-to-grid (V2G) capabilities.
Common in: Japan, some parts of Europe, and select models like the Nissan Leaf.
Challenges: Being phased out in favor of CCS in many global markets.

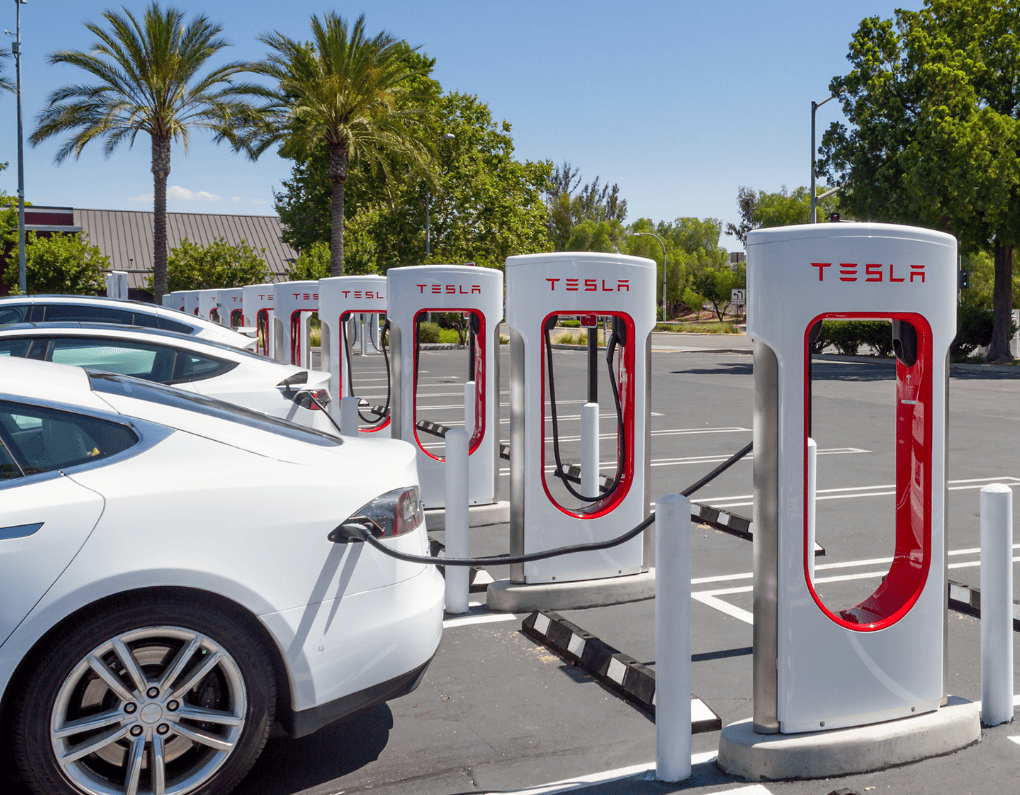

Tesla's proprietary Supercharger network provides Tesla drivers with high-speed charging at thousands of global locations. The latest V3 Superchargers deliver up to 250 kW, enabling extremely short charging times for compatible vehicles.
Tesla is also gradually opening its Supercharger network to non-Tesla EVs with CCS compatibility, particularly in Europe and select areas in North America.
It’s important to note that not all vehicles can accept the maximum output of a DC fast charger. The actual charging speed depends on:
Vehicle’s battery size
Maximum DC input rating
Battery temperature and state of charge
Charger output capacity
For example:
A 50 kWh battery with a 100 kW input limit can go from 10% to 80% in approximately 30–40 minutes.
A larger 100 kWh battery that supports 250 kW charging may do the same in just 15–20 minutes, assuming optimal conditions.
As battery technologies improve, more vehicles will support higher-speed DC charging, reducing wait times and making EV ownership even more practical.
Despite its growing importance, DC fast charging is still misunderstood by many potential EV owners. Let’s debunk some of the most common myths:
A: No, modern EVs are engineered to handle DC fast charging safely. Battery Management Systems (BMS) monitor temperature, voltage, and current to ensure safe operation. While frequent fast charging may contribute to slightly faster battery degradation over many years, occasional use—especially during road trips or tight schedules—is not harmful for most vehicles.
A: It’s true that DC fast chargers have higher upfront installation costs due to equipment and infrastructure needs. However, for businesses operating high-mileage fleets or public charging networks, the long-term ROI in terms of uptime, fleet efficiency, and customer satisfaction is significant.
A: Most newer EVs are compatible with at least one major DC fast charging standard (CCS, CHAdeMO, or Tesla Supercharger). It’s important to check your vehicle’s charging capabilities and connector type before using a fast charger.
A: Standard DC fast chargers typically operate at 50–60 kW, which can add around 178 miles of range per hour of charging. More powerful units, ranging from 150 to 350 kW, are becoming common and can recharge vehicles with large battery packs in under 30 minutes.
A: Generally, no. Level 3 DC fast chargers require high-voltage (480V or more) and high-current electrical infrastructure, making them suitable primarily for commercial, public, and industrial settings. Most homes are not equipped to handle this level of electrical demand. Instead, Level 2 chargers are recommended for residential use.
Commercial operators such as FedEx, Amazon, and public transit systems are deploying DC fast chargers at their depots to support electrified fleets. Reduced refueling time improves route efficiency and minimizes vehicle downtime.
Governments and private companies are installing fast chargers along major highways to support long-distance EV travel. Initiatives like the U.S. National Electric Vehicle Infrastructure (NEVI) program aim to place chargers every 50 miles on key corridors.
Retail centers, parking garages, and office buildings are integrating DC fast chargers to attract EV drivers and offer convenient top-ups during shopping or work hours.
The future of fast charging is not just faster—it’s smarter, more efficient, and more connected.
Ultra-Fast Charging: Power outputs beyond 400 kW are being tested, potentially enabling 100-mile top-ups in under 5 minutes.
Battery Preconditioning: Some EVs can now preheat or cool their battery en route to a charger, ensuring optimal charging speeds upon arrival.
Dynamic Load Management: Intelligent systems balance power distribution across multiple chargers to avoid grid overloads and reduce peak demand charges.
Solar + Storage Integration: Fast charging stations paired with solar panels and battery storage can reduce grid dependence and improve sustainability.
Wireless Fast Charging: Emerging technologies may eliminate cables entirely, enabling hands-free, high-speed charging.
DC fast chargers represent a crucial advancement in EV infrastructure. As the demand for electric mobility continues to rise, these high-powered systems will play an indispensable role in meeting charging needs—whether it’s getting a passenger vehicle back on the road in minutes or powering an entire fleet of electric trucks overnight.
By providing rapid, convenient, and scalable charging solutions, DC fast chargers are helping pave the way to a cleaner, more electrified transportation future. With continued innovation in charging speed, vehicle compatibility, and renewable integration, the evolution of DC fast charging is only just beginning.
