As electric vehicles continue to gain popularity worldwide, the infrastructure that supports them—especially charging stations—must be designed to withstand a wide range of operating environments. Whether installed in private garages, commercial parking lots, or outdoor public charging hubs, EV chargers require not only electrical safety but also effective protection against environmental factors such as dust, rain, snow, heat, moisture, or accidental splashes. This is where the importance of IP (Ingress Protection) ratings becomes critical.

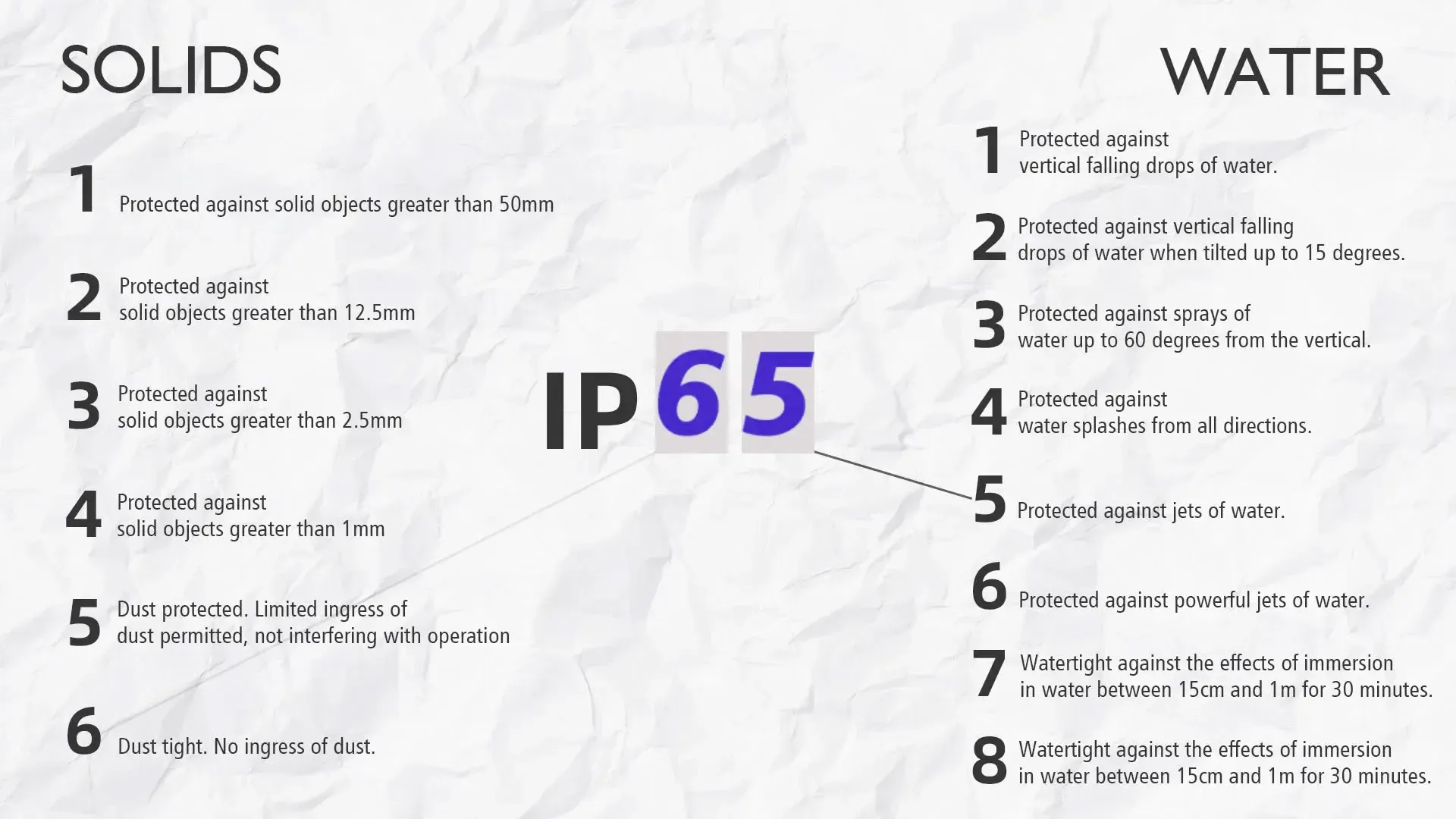

IP stands for “Ingress Protection,” defined by the international standard IEC 60529. It indicates how well an electrical enclosure is sealed against the intrusion of foreign objects, including both solid particles and liquids. The IP code consists of two numerical digits:
The first digit (0 to 6) denotes protection against solid particles like dust, sand, or debris.
The second digit (0 to 9) indicates protection against liquids such as dripping water, rain, spray, or even high-pressure water jets.
For example, an EV charger with a rating of IP65 is completely dust-tight (6) and protected against water jets (5), making it suitable for most outdoor environments.
Not all EV chargers are built the same. Selecting a charging station with the right IP rating is especially important if the unit will be installed outside or in areas exposed to weather and dust.
Typical IP ratings commonly seen in EV charging equipment include:
IP44 – Splash-proof; suitable for indoor or sheltered outdoor areas
IP54 – Dust-repellent and splash-proof; minimum level recommended for outdoor installations
IP65 – Dust-tight and protected from water jets; ideal for outdoor use in rainy or dusty environments
IP66 / IP67 – Even higher resistance, suitable for harsher conditions, heavy rain, snow, or industrial zones
Understanding these ratings helps users choose the right product for residential use, commercial applications, or public charging networks.
Dust, sand, or small particles can harm internal components, interfere with electrical connections, and reduce the efficiency or lifespan of a charger. Chargers installed in urban construction areas, coastal regions, or zones with high pollution levels require a higher IP rating, such as IP54 or IP65, to resist dust ingress and extend the internal circuitry’s reliability.
Rain, humidity, or accidental water spray can cause short circuits, corrosion, or complete system failure. This is why outdoor EV chargers are often designed with at least an IP55 or IP65 rating. For areas with frequent storms or heavy rains, IP66 or IP67-rated chargers are recommended since they remain safe even during temporary flooding or high-pressure water splashes.
The location of installation largely determines the IP rating requirement:
Home garages with a roof or cover may only need IP44–IP54.
Commercial outdoor parking lots, city sidewalks, and public areas exposed to rain/snow typically require IP65 or higher.
Industrial or coastal environments may require IP66 or IP67 due to high dust or saltwater corrosion risk.
The IP rating depends not only on design but also on the materials used. Chargers must include high-grade gaskets, robust housing enclosures, watertight connections, and UV resistance. Lower-quality materials may degrade over time, reducing the actual protection.
Public chargers used frequently by many users are subject to more wear and tear than private chargers. Open-close cycles of charging covers, plug insertions, and daily exposure require a stronger seal over time. Higher IP-rated chargers maintain their protection level even with repeated use.
Investing in high IP-rated chargers boosts operational stability in harsh outdoor environments. This translates to longer equipment life, fewer failures, and lower maintenance costs. Businesses that install durable, weatherproof chargers promote user confidence and attract EV drivers looking for reliable charging on the go.
For public charging operators, maintaining uptime is essential. Downtime due to water damage or dust clogging can quickly harm reputation and revenue. Thus, selecting chargers with IP65 or IP67 protects long-term investment.
Major EV charger manufacturers build their products in compliance with IEC 60529 as well as IEC 61851 for EV equipment safety. High IP-rated chargers not only meet regulatory standards but also support installation approvals in regions with strict safety codes, such as the European Union, United States, or the Middle East.
Certification and compliance reassure both installers and end users. Governments and municipalities deploying large charging networks often specify minimum IP ratings in their procurement guidelines.
An often-overlooked benefit of IP ratings is reduced maintenance. Chargers with IP65 or above typically require fewer repairs and less frequent component replacement. The sealed enclosure protects not only the electronics but also the display screens, communication modules, and smart metering components. This is particularly valuable for fast DC chargers or smart chargers equipped with displays, RFID readers, or payment modules.
Chargers placed near sea coastlines or in cold regions with snow and ice may suffer from condensation. High IP ratings minimize water seepage and internal corrosion, extending lifespan significantly.
|
Use Scenario |
Recommended IP Rating |
Reason |
|
Indoor garage or carport |
IP44 to IP54 |
Minimal weather exposure |
|
Residential outdoor wall |
IP54 to IP65 |
Exposed to rain, humidity |
|
Commercial parking lot |
IP65 |
Public use, weatherproof |
|
Coastal or sandy area |
IP66 / IP67 |
Saltwater, sand, wind |
|
Industrial or heavy-duty zone |
IP66 or above |
Heavy dust, machinery spray |
Temperature Range: Look for chargers rated to operate under wide temperature ranges (-25°C to +50°C).
UV and Sunlight Protection: For open outdoor locations, UV-resistant materials preserve the enclosure against cracking or fading.
Corrosion Resistance: Metal housings should be coated or treated to withstand corrosion. Aluminum alloy or stainless steel enclosures may be preferred.
Cable and Connector Waterproofing: The charging gun and cable must also meet waterproof standards. For example, handing an IP67-rated charging head ensures safety even if the connector is exposed to rain or accidentally dropped in water.
Smart Features: Even high-tech functionalities (Wi-Fi, 4G, RFID) must remain protected behind sealed interfaces without compromising signals.
As public and private sectors invest in EV adoption, governments are rolling out nationwide plans for charging infrastructure. Regulations increasingly require IP65+ protection for any charger installed outdoors. Manufacturers are responding with rugged, modular charger designs that not only meet IP ratings but also integrate smart sensors, automated diagnostics, and modular upgrades—all while maintaining high levels of ingress protection.
In colder regions (e.g., Northern Europe, Canada, parts of the U.S.), chargers may be exposed to snow, ice, or hail. These areas increasingly demand IP66–IP67-certified products to prevent moisture ingress during freeze-thaw cycles. Similarly, desert or tropical climates need better dust and rain resistance as standard.
The IP (Ingress Protection) rating is one of the most critical factors in selecting a safe, reliable, and long-lasting EV charging station—especially in outdoor or semi-outdoor environments. Understanding the level of protection provided against dust and water helps both consumers and commercial operators make informed decisions.
A higher IP rating, such as IP65 or IP67, ensures better durability, lower maintenance, and greater safety—resulting in improved performance and longer service life. It ultimately leads to higher user satisfaction and lower total cost of ownership.
Whether you’re a homeowner, installer, fleet manager, or charging station operator, choosing an EV charger with the right IP rating is essential for protecting your investment and ensuring uninterrupted service.
