The global automotive industry is undergoing a monumental shift. As nations move toward carbon neutrality and sustainable transportation, electric vehicles (EVs) have emerged as the centerpiece of a cleaner, more efficient mobility future. Yet behind the rising popularity of EVs lies a crucial foundation — the EV charging pile, the indispensable link connecting vehicles to the power grid.
An EV charging pile, also known as Electric Vehicle Supply Equipment (EVSE), is the equivalent of a modern fuel pump for electric cars. It channels electricity from the grid, transforms it into the correct form for storage, and ensures a safe, efficient, and intelligent energy transfer to EV batteries. Whether located in a home garage, office parking lot, shopping mall, or highway rest stop, these devices enable the practical use of EVs by providing consistent, convenient access to power.
Today, as EV adoption accelerates worldwide, EV charging piles are becoming a cornerstone of modern infrastructure — a symbol of innovation, sustainability, and energy transformation.
At its core, an EV charging pile is a power conversion and control device that draws electricity from the grid and delivers it to an electric vehicle’s battery system. It bridges the gap between stationary electrical infrastructure and mobile electric transport.
The charging pile consists of several integrated systems:
Power Module – converts and stabilizes the electrical current.
Control Unit – manages communication between the EV and the charger.
Connector and Cable Assembly – transfers electricity safely to the vehicle.
Monitoring and Protection Systems – safeguard both user and equipment from overvoltage, overheating, or current leakage.
EV charging piles come in various designs and power levels. Some are compact wall-mounted units suited for home use, while others are floor-standing fast chargers for public stations and commercial fleets. Regardless of the setup, all share a common goal: to make EV charging as seamless and safe as possible.
EV charging piles can be categorized based on installation type, power level, or current type (AC/DC). Understanding the differences helps users and businesses choose the most appropriate solutions for their needs.
These are lightweight and ideal for residential use. Installed on walls of garages or building exteriors, they typically operate at 3.7–22 kW and use a standard AC connection. Wall-mounted piles are compact, affordable, and convenient for overnight charging.

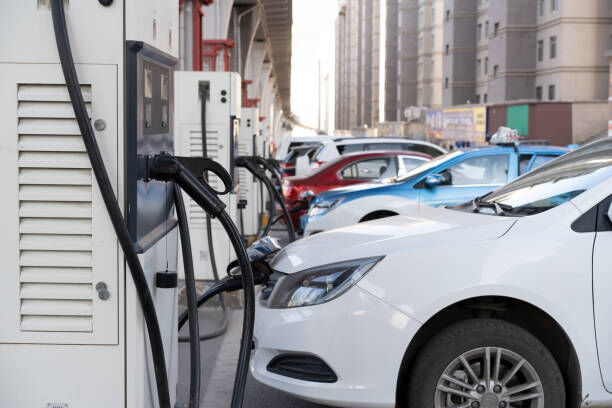

Commonly seen in public areas such as parking lots, office buildings, and shopping centers, floor-mounted chargers are designed for durability. They provide higher charging capacity, weatherproof enclosures, and can support both AC and DC configurations.
Portable chargers, often resembling compact boxes with cables, provide emergency or travel-friendly charging. They plug into standard outlets and serve as a backup solution, though typically slower than fixed installations.
The latest generation of EV charging piles integrates cloud connectivity, mobile app control, and data analytics. Through Wi-Fi, 4G, or Ethernet connections, users can:
Monitor charging sessions in real time.
View power consumption and cost data.
Schedule charging during off-peak electricity hours.
Make digital payments or scan QR codes for easy use.
For fleet operators and property managers, smart chargers also provide valuable insights into energy usage patterns and maintenance requirements.
The operation of a charging pile may appear straightforward, but inside lies advanced electrical engineering and digital control. The process can be summarized in three stages:
Once the user plugs the charger into the vehicle, the system verifies the connection and establishes communication with the car’s Battery Management System (BMS). This ensures compatibility and determines the correct charging parameters.
Electricity flows from the grid to the pile, where it’s either delivered as AC or converted to DC, depending on the charger type. The pile precisely controls current and voltage levels to match the battery’s specifications.
During charging, embedded sensors continuously monitor power flow, temperature, and voltage. Safety features like short-circuit protection, overcurrent cutoff, and automatic shutoff ensure stable and secure operation.
Advanced chargers use intelligent load management to balance total grid demand, preventing overloads in high-traffic areas.
The user experience remains simple: plug in, authenticate (via card, app, or automatic recognition), and charging begins — a process designed for maximum safety and convenience.
Modern EV charging piles have evolved far beyond basic power supply units. They now embody innovation across multiple dimensions.
Fast-charging piles, often rated between 60 kW and 350 kW, can charge most EVs to 80% capacity in under 30 minutes. Ultra-fast chargers, now emerging with 800V architectures, push this even further — offering near full charges in as little as 10–15 minutes.
To function outdoors year-round, charging piles are built with IP54–IP65 protection ratings. They resist water, dust, UV rays, and temperature extremes ranging from -30°C to +60°C. Rugged stainless-steel or aluminum housings ensure longevity in public environments.
Safety is a core requirement in all charging equipment. Common protection mechanisms include:
Ground fault and overcurrent protection.
Surge and lightning protection.
Thermal monitoring to prevent overheating.
Emergency stop buttons and fault alarms.
Integration with IoT (Internet of Things) platforms allows users and operators to remotely monitor performance, receive fault alerts, and manage energy usage. Mobile apps can also locate nearby chargers, display availability, and handle electronic payments seamlessly.
Modern piles optimize charging during off-peak hours and can integrate renewable energy sources such as solar or wind power. Some even feature bidirectional power flow, enabling vehicle-to-grid (V2G) functionality — where EVs can return electricity to the grid during high demand.
EV charging piles can be broadly classified into AC (Alternating Current) and DC (Direct Current) types, each serving different purposes.
An AC charging pile provides alternating current directly to the vehicle, where the onboard charger converts it to DC for battery storage. Because conversion capacity inside the vehicle is limited, AC charging tends to be slower — ideal for residential or workplace charging.
Power Range: 3.7 kW to 22 kW
Charging Time: 4 to 10 hours for a full charge (depending on battery size)
Best For: Home use, offices, long-term parking areas
A DC charging pile performs the AC-to-DC conversion internally, bypassing the vehicle’s onboard charger and delivering DC power directly to the battery. This enables much higher charging speeds.
Power Range: 50 kW to 350+ kW
Charging Time: 20–45 minutes for 80% capacity
Best For: Public charging stations, highway rest stops, fleet depots
The two systems complement each other. While AC chargers handle daily needs conveniently, DC chargers support long-distance travel and commercial operations requiring rapid turnaround.
Although often used interchangeably, charging stations and charging piles represent different components of EV infrastructure.
A charging pile is the individual device that connects to an EV to supply electricity. A charging station, however, is a complete facility — similar to a modern fuel station — that houses multiple charging piles along with supporting systems like transformers, monitoring platforms, and payment systems.
Charging stations typically include:
Distribution Equipment – manages electricity from the grid.
Charging Modules – the piles themselves, often in clusters.
Energy Management Systems (EMS) – monitor and balance load distribution.
Payment and Network Systems – for user authentication, billing, and data tracking.
In large-scale installations, these components work together to ensure high uptime, efficiency, and user convenience — crucial for the mass adoption of EVs.
As electric mobility becomes mainstream, the global rollout of charging infrastructure has accelerated dramatically. According to recent industry reports, the worldwide EV charging market is projected to surpass USD 150 billion by 2032, with an annual growth rate exceeding 30%.
China remains the undisputed leader in EV charging infrastructure. By mid-2025, the country had deployed over 8 million charging piles, accounting for more than half of the global total. Strong government initiatives, urban electrification policies, and local manufacturing capacity have made China a powerhouse in this field.
Europe’s focus lies in building a unified, interoperable charging network. The adoption of IEC 61851 and ISO 15118 standards ensures compatibility across countries. Investments in “TEN-T” corridors (Trans-European Transport Network) are also creating seamless cross-border EV travel.
In the U.S., the National Electric Vehicle Infrastructure (NEVI) program aims to install tens of thousands of DC fast chargers along major highways. Leading companies such as Tesla, ChargePoint, and Electrify America are working with states to standardize connectors and expand coverage.
Countries in Southeast Asia, the Middle East, and Latin America are now entering rapid expansion phases, supported by renewable energy initiatives and urban smart mobility projects.
The next generation of EV charging piles is defined by intelligence and sustainability.
Key innovations shaping the industry include:
These dynamically adjust charging rates based on grid load, electricity pricing, and user preferences, reducing energy costs and preventing overload.
Bidirectional chargers allow EVs to feed excess power back into the grid, effectively turning them into mobile energy storage units.
Artificial intelligence monitors charging data, predicts usage trends, and performs preventive maintenance — reducing downtime and optimizing performance.
Solar-powered charging piles and microgrid systems are emerging as sustainable solutions for regions with limited grid access.
Solid-state batteries and high-power chargers are pushing boundaries. Meanwhile, wireless inductive charging is being tested for convenience and autonomous vehicle compatibility.
Together, these advances are transforming EV charging piles into smart energy nodes, crucial to future smart cities and green power systems.
While progress is rapid, the industry still faces challenges:
Grid Load Management: As EV adoption rises, ensuring stable electricity supply is critical.
Standardization: Global harmonization of connectors (like CCS, CHAdeMO, and GB/T) remains a work in progress.
Installation Costs: Infrastructure deployment requires coordination between governments, utilities, and private investors.
Maintenance and Cybersecurity: Smart chargers must be protected against software vulnerabilities and network failures.
Yet, these challenges also create vast opportunities for innovation — from modular designs and energy storage integration to digital payment ecosystems.
EV charging piles are the unsung heroes of the electric vehicle revolution. They provide the foundation upon which the future of clean transportation is built — connecting renewable energy, smart grids, and sustainable mobility.
From AC home chargers that keep daily commuting effortless to DC fast chargers powering long-haul travel, the diversity of charging solutions is expanding rapidly. Governments, automakers, and technology providers are aligning efforts to make EV charging more universal, efficient, and user-friendly.
As technology evolves and global cooperation strengthens, the vision of “charge anywhere, anytime” is becoming a reality. The humble EV charging pile — once a niche utility — is now a symbol of the world’s transition toward greener energy, smarter cities, and a more sustainable planet.
