The electric vehicle (EV) revolution is reshaping transportation worldwide. Governments, automakers, and consumers are accelerating the shift to clean mobility, but the pace of adoption depends heavily on one crucial factor: charging infrastructure. While EV technology is evolving rapidly, charging speed and convenience remain central to the driver experience.
For many households, a single-phase wall-mounted EV charger rated at 7kW is sufficient. It allows overnight charging and ensures that the car is ready each morning. But as batteries get bigger, daily commutes get longer, and more households own multiple EVs, the limitations of single-phase charging are becoming increasingly evident.
This is where 3-phase EV chargers step in. Offering up to three times faster charging compared to single-phase systems, they deliver power more efficiently and reliably. Already widespread in commercial and industrial facilities, 3-phase technology is now beginning to transform residential EV charging and public charging networks alike.
This article explores everything you need to know about 3-phase EV chargers: how they work, their advantages, challenges, global adoption trends, and why they represent a future-proof solution for the growing world of electric mobility.
To understand 3-phase EV chargers, we first need to understand the difference between single-phase and three-phase electricity supplies.
Found in most homes worldwide.
Uses one alternating current (AC) waveform.
Voltage rises and falls in cycles, creating peaks and troughs.
Simple and cost-effective but limited in capacity.
Common in factories, commercial buildings, and some residential areas.

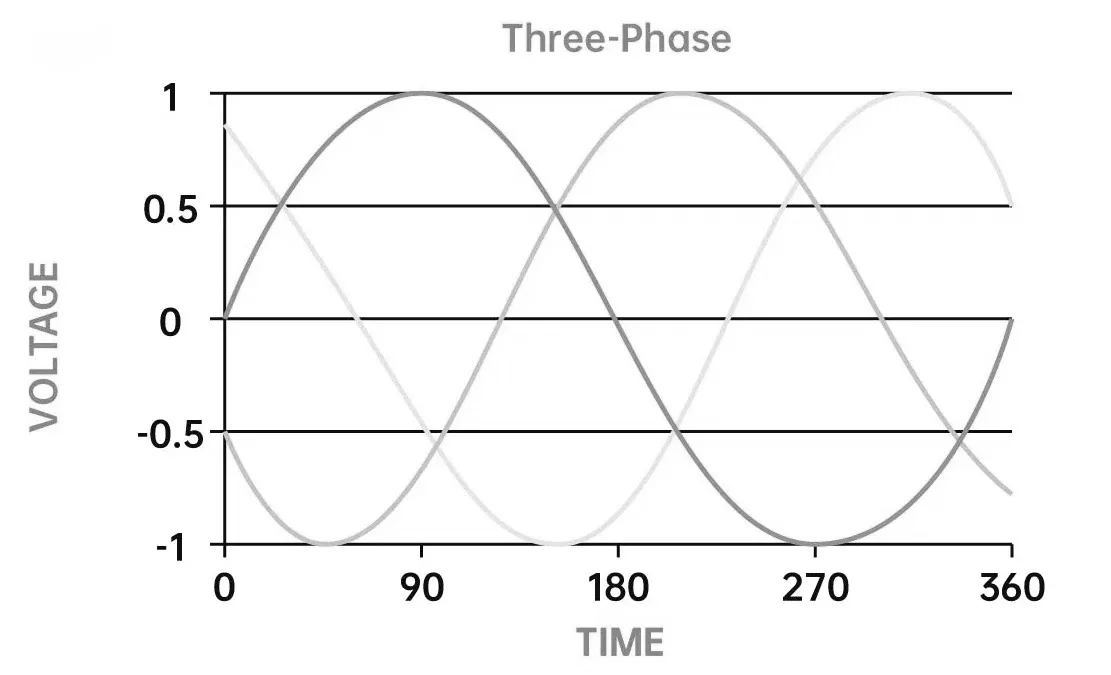

Uses three separate AC waveforms, each offset by 120 degrees.
At any given moment, at least one phase is at peak voltage.
Delivers a smooth, consistent flow of electricity with higher efficiency.
Key electrical differences:
Voltage between a live wire and neutral: ~230V.
Voltage between two live wires: ~400V.
With three wires supplying power, a 3-phase system can handle heavier loads without increasing current flow in any single wire.
This makes 3-phase power the preferred choice for high-demand applications like air conditioning systems, industrial machinery, and — increasingly — EV chargers.
A 3-phase EV charger is designed to tap into a three-phase power supply, drawing electricity through three separate live wires instead of one. This allows the charger to deliver significantly more power to the EV battery.
The principle is simple: more power flow = faster charging.
7kW single-phase charger: Adds around 30 miles (48 km) of driving range per hour.
11kW three-phase charger: Adds around 50–60 miles (80–96 km) per hour.
22kW three-phase charger: Adds up to 90 miles (145 km) per hour.
The charger communicates with the EV’s onboard charger (OBC), which determines how much power the vehicle can accept. If the OBC is limited to 11kW, even a 22kW charger will only deliver 11kW. Many premium EVs, especially in Europe, now feature 11kW or 22kW OBCs to take advantage of faster charging speeds.
Unlike DC fast charging, which bypasses the onboard charger and delivers power directly to the battery, 3-phase charging is still AC charging. This means it’s generally less expensive to install and operate, making it attractive for residential and workplace use.
When people talk about “fast AC charging,” they are usually referring to 22kW three-phase charging. This is the highest capacity commonly available for AC systems in residential and light commercial environments.
7kW (single-phase): Standard for home chargers.
11kW (three-phase): A practical middle ground.
22kW (three-phase): The fastest realistic option for home or workplace charging.
Time savings: Fully charging a 60kWh EV battery takes:
~9 hours on a 7kW charger.
~5.5 hours on an 11kW charger.
Just ~3 hours on a 22kW charger.
Convenience: Shorter charging times mean greater flexibility. You can top up during the day instead of relying only on overnight charging.
Fleet efficiency: Delivery vans, rideshare cars, and company fleets benefit from rapid turnaround.
This is one of the most common questions EV drivers ask. The answer depends on where you live and what kind of electricity supply your property already has.
Most homes in the UK and US: Single-phase supply, limited to ~7.4kW chargers.
Many homes in mainland Europe: Already wired with 3-phase supply, enabling 11kW or 22kW chargers without major upgrades.
High-end or large homes: Sometimes built with 3-phase to support heavy appliances.
Requires work by your electricity distribution company.
Can involve new cabling, meter upgrades, and service connection changes.
Costs vary widely, from a few hundred dollars in some regions to several thousand in others.
Load balancing: An electrician must ensure household loads are distributed evenly across phases.
Future-proofing: If upgrading, it’s wise to plan ahead for solar integration, heat pumps, or multiple EVs.
While charging speed is the most obvious advantage, there are several other benefits that make 3-phase chargers a compelling choice:
The difference between adding 30 miles per hour and 90 miles per hour is enormous. For busy households or commercial operations, the time saved is invaluable.
Because charging happens over a shorter time, there’s less energy lost to heat and resistance. This makes the process slightly more energy-efficient overall.
One 3-phase supply can support multiple chargers, making it ideal for:
Apartment buildings.
Workplaces.
Fleet depots.
EV batteries are growing in size — from 40kWh in early models to over 100kWh in some modern SUVs. Installing a 3-phase charger ensures you’re ready for the future.
Many solar power systems use 3-phase inverters. Pairing them with 3-phase chargers allows you to maximize self-consumption of solar energy, lowering bills and carbon footprint.
From single-car households to logistics companies, 3-phase chargers adapt to a wide variety of use cases.
Installing a 3-phase EV charger at home makes the most sense for:
Multi-EV households: Where both vehicles need to be charged overnight.
High-mileage drivers: Who cannot wait long for a full recharge.
Solar-powered homes: Where maximizing renewable energy usage is a priority.
For many families, the investment may not be essential today, but it adds long-term value to the property and ensures readiness for future EVs.
Commercial sites are where 3-phase chargers truly shine.
Key Use Cases
Delivery fleets: Require vehicles to be charged quickly between shifts.
Taxis and rideshare hubs: High vehicle turnover demands rapid top-ups.
Workplaces: Providing reliable charging options for employees.
Public charging stations: Faster AC charging improves availability and customer satisfaction.
Hospitality and retail: Hotels, malls, and restaurants can attract EV-driving customers with convenient high-speed charging.
For businesses, 3-phase charging is not just about speed — it’s about efficiency, customer service, and competitive advantage.
Widespread 3-phase power availability makes 11kW and 22kW chargers common.
Many EVs are sold with 11kW or 22kW onboard chargers.
Workplace and apartment charging infrastructure often prioritizes 3-phase.
Most residential areas only have single-phase.
3-phase chargers are mostly seen in commercial and fleet settings.
Growing demand for upgrades as EV adoption spreads.
Countries like China and South Korea are investing heavily in public charging, including 3-phase systems.
Japan still leans heavily on DC fast charging, but 3-phase AC is expanding.
Installing a 3-phase charger is more expensive than a single-phase setup, especially if an electrical upgrade is needed.
Typical costs include:
Hardware (charger): $1,000–$2,500 depending on brand and features.
Installation (without upgrade): $500–$1,500.
3-phase supply upgrade: $1,000–$5,000+ depending on local utility.
Businesses often view this as a strategic investment, offset by benefits like customer attraction, employee satisfaction, and reduced fleet downtime.
Cost: Higher installation and potential upgrade expenses.
Vehicle compatibility: Not all EVs support 22kW charging; many are capped at 7.4kW or 11kW.
Grid capacity: Widespread adoption could strain local electricity networks if not managed carefully.
Availability: Many regions still do not offer residential 3-phase service.
As EVs evolve, so will charging technology. Several future trends could shape the role of 3-phase chargers:
Bidirectional charging (V2G): 3-phase systems will support energy flow both ways, allowing EVs to power homes or supply the grid.
Smart load balancing: Advanced software will distribute demand intelligently, minimizing grid impact.
Integration with renewables: 3-phase charging will pair seamlessly with solar, wind, and battery storage systems.
Fleet electrification: Logistics, taxis, and buses will increasingly rely on 3-phase AC chargers for efficient depot operations.
The rise of electric vehicles is reshaping how we think about energy, mobility, and infrastructure. While single-phase chargers remain a practical choice for many, the advantages of 3-phase EV chargers are undeniable: faster charging, greater efficiency, scalability, and future readiness.
Whether you’re a homeowner with multiple EVs, a business managing a fleet, or a city planning public charging infrastructure, investing in 3-phase technology is a strategic move. It ensures that you’re prepared not just for today’s EVs, but for the next generation of electric mobility.
The shift to electric transportation is inevitable. With 3-phase charging, we can make that transition faster, smarter, and more sustainable.
