Complete Guide to Home EV Charging Stations: Components, Installation, and Benefits
On this page
As electric vehicles (EVs) become more prevalent, home EV charging stations are emerging as a key part of the green energy transition. With a home charging station, electric car owners can enjoy the convenience of charging their vehicle right in their own driveway or garage, avoiding the long waits often associated with public charging stations. But what exactly makes up a home EV charging station, how does it work, and how can you install one at home? This guide will walk you through the essential components, the process of choosing the right charger, and the steps for installation.
In addition to saving time, home charging stations are generally more affordable in the long run compared to public charging stations. Public charging can incur higher fees, and the costs often vary depending on location and availability. With a home station, the cost of charging is typically lower, as you are simply using your home’s electricity supply.
Furthermore, home charging stations can contribute to sustainability efforts by reducing the need for fossil-fuel-based energy and enabling you to use renewable energy sources like solar panels to power your EV. Many home charging stations are designed to integrate seamlessly with solar power systems, allowing you to charge your vehicle using green energy.
As the demand for electric vehicles continues to grow, the technology behind home charging stations will continue to evolve. The increased focus on electromobility will drive innovation in charging station design and functionality, ensuring that future solutions are even faster, more efficient, and more eco-friendly.
However, if you are looking for a faster charging solution, some home charging stations support DC fast charging. These stations can provide power ratings of up to 50 kW and can charge an electric vehicle in as little as one hour, depending on the battery size. DC fast chargers are typically used in commercial settings, but as demand for faster charging grows, they may become more common in home installations as well.
It’s also worth noting that the actual charging speed may vary depending on your EV’s battery size, the condition of the battery, and the type of charger being used. For example, larger battery capacities may take longer to charge, and some older EV models may not be capable of charging at the highest speeds.
When choosing a charger, make sure it is compatible with your vehicle’s charging requirements. For BEVs, a Level 2 charger is the most common and offers faster charging speeds. For PHEVs and HEVs, you may not need a Level 2 charger, but a standard Level 1 charger might be sufficient for their needs.
Components of a Home Charging Station
A home charging station is composed of several key components, each playing an essential role in ensuring the safe and efficient charging of your electric vehicle. Let’s break down the major components of a typical home EV charging station:1. Housing
The housing of a home charging station serves as the protective shell that shields the internal components from the elements. Made from durable, weather-resistant materials, the housing ensures that the system remains functional and safe under various conditions, whether it’s rain, wind, or extreme temperatures. It also contributes to the overall aesthetic of the station, making sure it blends well with your home or garage.2. Charging Controls
The charging controls are the brain of the charging station, managing the flow of electricity between the charging station and the vehicle. These controls ensure that the battery is charged at the correct voltage and current, preventing overcharging or overheating, which can damage the car’s battery. Modern charging controls often include smart technology features, such as the ability to automatically adjust the charging speed based on the time of day or the condition of the battery. These features ensure the longevity of both the car and the charging station.3. Connectors

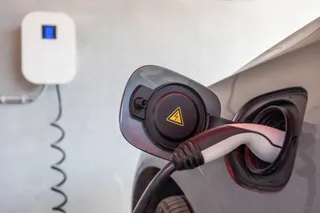

Connectors are the physical interface that links your electric vehicle to the charging station. In most European countries, the standard connector for EVs is the Type 2 connector, which is used in home charging stations. This connector is designed for AC charging and is compatible with most modern electric cars. In some cases, the connector may be permanently attached to the charging station, while in others, it can be removed for flexibility.4. Electricity Meter
Many home charging stations come equipped with an integrated electricity meter. This feature helps track the amount of electricity being consumed during the charging process. Having an electricity meter can be especially useful for calculating the cost of charging your vehicle. Depending on your local electricity rates, it can help you monitor your energy usage and save on your electric bill.5. Ground Fault Current Interruption (GFCI) Breaker
The GFCI breaker is an essential safety feature in any home charging station. It protects both the electrical system and users from potential electrical hazards. If a fault is detected in the electrical current, such as a leakage, the GFCI breaker will immediately disconnect the power supply to prevent electrical shock or damage to the system. Many charging stations include this feature as a built-in safety measure.6. Circuit Breaker
The circuit breaker is another critical safety component that prevents damage due to electrical overload or short circuits. It is designed to automatically interrupt the flow of electricity if it detects excessive current, preventing potential fires or damage to the electrical components. Circuit breakers are standard in most home EV charging stations.7. Cable
The cable is the conduit that carries electricity from the charging station to your vehicle. In most home charging stations, the cable is permanently attached to the unit, but in some cases, it may be removable. The cable typically has a plug at the end that connects to the car’s charging port. The length of the cable can vary, but it’s important to ensure that it is long enough to reach from the wallbox to your vehicle without straining the connection.A Home Charging Station: A Long-Term Investment
Investing in a home charging station for your electric vehicle is not just about convenience; it also brings a host of other benefits. Having a dedicated charging station at home allows you to charge your vehicle whenever you need, without worrying about finding a public charging station. This level of convenience can save time and make owning an electric vehicle more practical.In addition to saving time, home charging stations are generally more affordable in the long run compared to public charging stations. Public charging can incur higher fees, and the costs often vary depending on location and availability. With a home station, the cost of charging is typically lower, as you are simply using your home’s electricity supply.
Furthermore, home charging stations can contribute to sustainability efforts by reducing the need for fossil-fuel-based energy and enabling you to use renewable energy sources like solar panels to power your EV. Many home charging stations are designed to integrate seamlessly with solar power systems, allowing you to charge your vehicle using green energy.
As the demand for electric vehicles continues to grow, the technology behind home charging stations will continue to evolve. The increased focus on electromobility will drive innovation in charging station design and functionality, ensuring that future solutions are even faster, more efficient, and more eco-friendly.
How Quickly Can You Charge Your Car at Home?
The speed at which you can charge your car at home depends largely on the power rating of your charging station. Most home EV chargers, also known as wallboxes, have a power output of 11 kW, which allows them to fully charge an electric vehicle in about 4-6 hours. For most drivers, this is more than sufficient, as it allows the car to be fully charged overnight.However, if you are looking for a faster charging solution, some home charging stations support DC fast charging. These stations can provide power ratings of up to 50 kW and can charge an electric vehicle in as little as one hour, depending on the battery size. DC fast chargers are typically used in commercial settings, but as demand for faster charging grows, they may become more common in home installations as well.
It’s also worth noting that the actual charging speed may vary depending on your EV’s battery size, the condition of the battery, and the type of charger being used. For example, larger battery capacities may take longer to charge, and some older EV models may not be capable of charging at the highest speeds.
How to Install Your Own Level 2 EV Charging Station at Home
Installing a Level 2 EV charging station at home is a relatively straightforward process, but it’s important to have a professional electrician handle the installation to ensure that it meets all safety requirements. Here’s an overview of the installation steps:Choose the Location
Decide where you want to install the charging station. The best location is typically near your garage or driveway, where the vehicle can be parked easily. Ensure that the location is close to your electrical panel for easier access to power.
Check Electrical Capacity
Before installation, your electrician will assess the electrical capacity of your home. Most Level 2 chargers require a 240V circuit, which is higher than the standard 120V used for home appliances. Your electrician will ensure your home’s electrical system can support this higher voltage.
Install the Charging Station
The electrician will mount the charger to the wall, run wiring to the electrical panel, and install a dedicated circuit breaker for the charging station. The wiring must be done carefully to ensure that it complies with local building codes and safety standards.
Test the Installation
After the charger is installed, the electrician will test the system to ensure everything is working correctly. They will check the functionality of the charger, the safety features, and the power supply.
Enjoy Convenient Charging
Once the installation is complete, you’ll have a fully functional home charging station. Simply plug your vehicle in whenever you return home, and it will be ready to go when you need it.
Understanding EV Types and Choosing the Right Charger
There are three main types of electric vehicles (EVs), and it’s essential to understand these differences when choosing the right home charging station:
Battery Electric Vehicles (BEVs)
Fully electric vehicles powered only by batteries. They have no tailpipe emissions and rely entirely on electric power.
Hybrid Electric Vehicles (HEVs): These vehicles combine a gasoline engine with an electric motor. The battery is charged through regenerative braking, and there is no need to plug them in.
Hybrid Electric Vehicles (HEVs): These vehicles combine a gasoline engine with an electric motor. The battery is charged through regenerative braking, and there is no need to plug them in.
Plug-in Hybrid Electric Vehicles (PHEVs)
Similar to HEVs, but with the added ability to charge the battery via a standard electrical outlet or charging station. They can operate in electric mode for shorter distances before switching to gasoline.
When choosing a charger, make sure it is compatible with your vehicle’s charging requirements. For BEVs, a Level 2 charger is the most common and offers faster charging speeds. For PHEVs and HEVs, you may not need a Level 2 charger, but a standard Level 1 charger might be sufficient for their needs.
Conclusion
As the world transitions toward more sustainable energy solutions, home EV charging stations are becoming an essential feature for electric vehicle owners. These stations offer unmatched convenience, cost savings, and environmental benefits. By understanding the key components, installation process, and choosing the right charger for your vehicle, you can ensure a smooth transition to electric driving. With the growing demand for EVs, home charging stations will only continue to improve, providing faster, more efficient, and greener solutions for all.
