Electric car charging stations have become a cornerstone of the electric vehicle (EV) revolution, enabling EV owners to conveniently charge their vehicles and stay on the road. These stations provide the right type and amount of energy to recharge batteries efficiently, addressing one of the most crucial aspects of EV ownership: range and accessibility. With the growing adoption of EVs worldwide, understanding the different types of chargers, installation considerations, and emerging technologies is essential for individuals, businesses, and municipalities alike.
In this comprehensive guide, we delve into the fundamentals of EV charging stations, explore the factors to consider before installing them, and discuss their benefits, challenges, and future trends
Types of EV Charging Stations
EV chargers are broadly classified into three levels—Level 1, Level 2, and Level 3—each catering to different charging needs, power requirements, and use cases.
Level 1 Charging
Level 1 charging uses a standard 120V alternating current (AC) outlet, making it the simplest and most accessible option for EV owners.
Speed: Delivers 2–4 miles of range per hour of charging, making it the slowest option.
Pros: Requires no special installation or upgrades, as it can plug into any standard household outlet.
Cons: Slow charging speeds make it impractical for long trips or heavy daily driving needs.
Use Case: Suitable for overnight home charging or for users with low daily mileage.
Cost: Typically included with new EV purchases, making it the most affordable charging option.
Level 2 Charging
Level 2 chargers use 240V AC power, significantly increasing the charging rate compared to Level 1 systems.
Speed: Provides 12–32 miles of range per hour, depending on the vehicle and charger specifications.
Pros: Faster and more efficient, ideal for daily use.
Cons: Requires installation of a dedicated 240V outlet or an electrical panel upgrade, which can add costs.

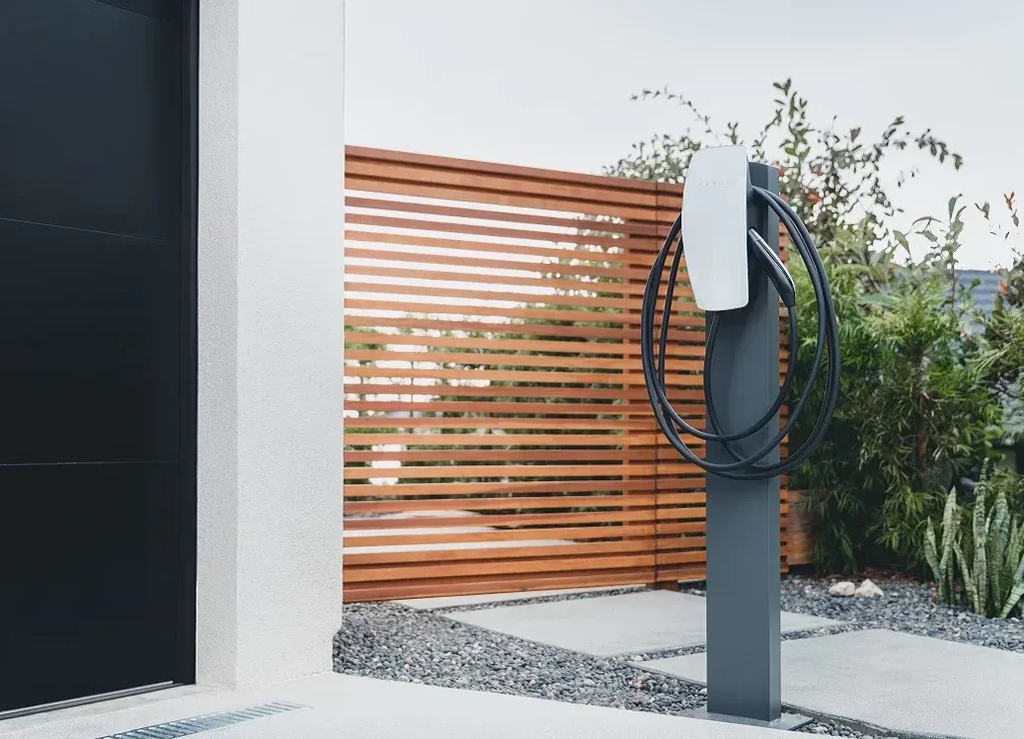

Use Case: Commonly used for home installations, workplaces, and public charging stations in parking lots and shopping centers.
Cost: Moderately priced; installation fees may vary depending on the complexity of electrical work.
Level 3 Charging (DC Fast Charging)
Level 3 chargers, also known as DC fast chargers, deliver high-voltage direct current (DC) power directly to the EV battery.
Speed: Adds 100–250 miles of range in under 45 minutes, depending on the charger and vehicle.
Pros: Ultra-fast charging, essential for long-distance travel and rapid top-ups.
Cons: Expensive to install and operate, with limited availability compared to Level 2 chargers.

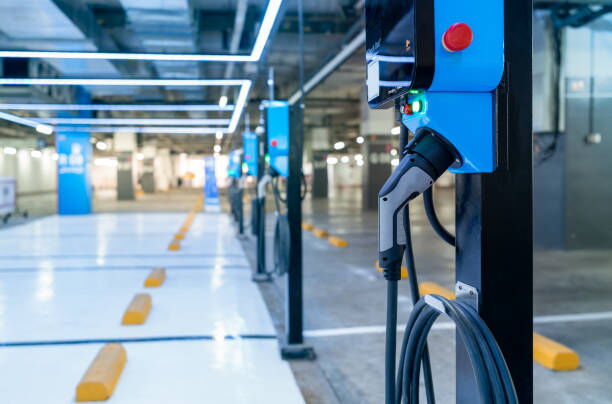

Use Case: Found in commercial locations, highways, and charging hubs. Ideal for busy urban areas and travelers.
Cost: The most expensive option, typically funded by governments, businesses, or charging networks.
Key Considerations for Installing EV Charging Stations
Installing an EV charging station requires careful planning and consideration of several factors to ensure optimal performance and usability.
1. Location
The choice of location plays a crucial role in the success and convenience of an EV charging station.
Accessibility
Stations should be easily accessible, with clear signage and ample parking spaces.
Parking Layout
Ensure parking spaces can accommodate vehicles approaching from different directions.
Cable Length
Standard cables are typically 4–5 meters long; account for this when planning the layout.
Weather Protection
Outdoor chargers should include covers or canopies to protect against rain, snow, and extreme sunlight.
Height Considerations
For wall-mounted chargers, a mounting height of approximately 120 cm is ideal for user convenience.
2. Type of Charger
The type of charger selected should align with the anticipated charging behavior of users.
Standard AC Chargers (up to 22 kW)
Suitable for locations like workplaces and hotels where vehicles are parked for extended periods (2+ hours).
Fast DC Chargers (50–150 kW)
Ideal for retail locations and restaurants, where users stay for shorter durations (30 minutes to 2 hours).
Ultra-fast DC Chargers (150 kW and above)
Perfect for high-traffic areas like highways and gas stations, where charging times need to be minimized.
3. Electrical Capacity
Evaluate the site’s electrical infrastructure to determine its capacity to handle EV chargers.
Power Supply
Ensure the grid can support the required load for the chargers.
Upgrades
Higher-powered chargers may require significant upgrades to electrical panels, transformers, or circuits.
Smart Load Management
Implement systems that balance power distribution to avoid overloading the grid.
4. Permits and Compliance
Obtaining necessary permits and ensuring regulatory compliance is an essential step in the installation process.
Building Permits
Check local requirements for installing electrical equipment.
Safety Standards
Adhere to national and local safety regulations for electrical installations.
Inspections
Post-installation inspections by certified authorities ensure proper setup and functionality.
5. Partnering with Experts
The complexity of EV charging systems requires collaboration with experienced professionals.
Electricians
Certified electricians handle safe installation and electrical compliance.
Hardware Providers
Choose reliable manufacturers of EV chargers to ensure quality and durability.
Software Providers
Advanced software enables monitoring, billing, and smart energy management.
Transporters
Ensure timely delivery and proper setup of the equipment.
Benefits of EV Charging Stations
1. Convenience for EV Owners
The availability of charging stations enhances convenience, eliminating range anxiety and supporting the growing number of EVs on the road.
2. Revenue Generation for Businesses
Commercial EV charging stations can generate income through usage fees and attract customers with additional amenities.
3. Environmental Benefits
Widespread adoption of EVs and charging infrastructure supports the transition to cleaner energy, reducing greenhouse gas emissions and promoting sustainability.
4. Enhancing Property Value
Adding EV charging stations can increase property value and appeal to environmentally conscious tenants and customers.
5. Future-Ready Infrastructure
Investing in EV charging infrastructure prepares businesses and communities for the inevitable shift to electric mobility.
Challenges in EV Charging Infrastructure
Despite their advantages, EV charging stations present challenges that must be addressed to maximize their potential.
High Initial Costs
The installation of charging stations, particularly Level 3 chargers, involves significant capital investment for equipment, electrical upgrades, and permits.
Grid Impact
High-powered chargers can strain the electrical grid, especially in areas with high EV adoption. Integration with renewable energy sources can help mitigate this challenge.
Maintenance and Reliability
Regular maintenance is essential to ensure consistent performance. Advanced management systems can streamline operations and minimize downtime.
Limited Access in Rural Areas
Urban areas often benefit from robust charging networks, while rural regions may face limited access due to lower demand and higher installation costs.
Future Trends in EV Charging
The EV charging landscape is evolving rapidly, with several exciting trends on the horizon.
1. Wireless Charging
Inductive charging technology eliminates cables, offering a seamless and user-friendly charging experience.
2. Ultra-fast Charging
Advancements in technology are enabling chargers with even higher power outputs, reducing charging times to just a few minutes.
3. Vehicle-to-Grid (V2G) Technology
V2G systems allow EVs to supply power back to the grid, enhancing energy efficiency and grid stability.
4. Renewable Energy Integration
Pairing EV chargers with renewable energy sources, such as solar panels and wind turbines, creates sustainable charging solutions.
5. Smart Charging Networks
Intelligent software solutions optimize energy usage, monitor station performance, and provide real-time data for users and operators.
Conclusion
Electric car charging stations are more than just a convenience—they are the backbone of the EV revolution. From understanding the different types of chargers to planning installations and embracing future trends, these stations play a vital role in supporting the transition to a sustainable transportation system.
By investing in EV charging infrastructure and collaborating with experienced professionals, businesses, governments, and individuals can help accelerate the adoption of electric vehicles, reduce environmental impact, and pave the way for a cleaner, greener future.
