How Many Amps Are Required for a Level 2 EV Charging Station
On this page

Introduction

As the adoption of electric vehicles (EVs) continues to grow, more homeowners and businesses are looking into installing Level 2 charging stations. But one of the most common questions that arises during this process is: How many amps does a Level 2 EV charger require?

Understanding amperage is critical, as it directly impacts the speed at which your EV charges, the electrical load on your system, the cost of installation, and the long-term safety of your setup. This article dives deep into what amps are, how they relate to Level 2 EV charging, how to determine the right amp rating for your needs, and what you need to know about installation requirements—whether at home or in a commercial setting.

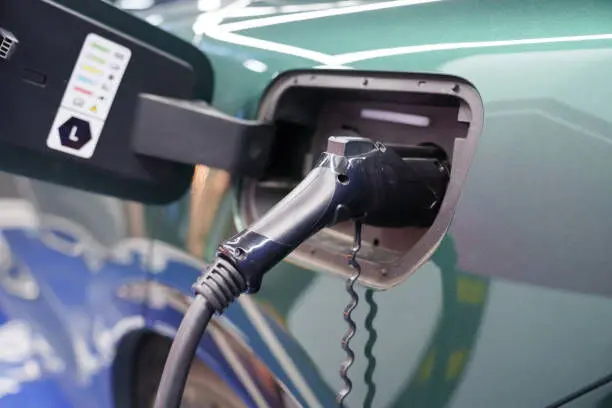

Level 2 Home EV Charger

What Are Amps and Why Do They Matter for EV Charging?

To put it simply, amps—short for amperes—are units that measure the flow of electrical current. Think of electricity as water flowing through a pipe: volts are like the water pressure, amps measure how much water is flowing, and watts (the power) are the product of the two.

In the world of EV charging, the amp rating indicates how much electrical current the charger can deliver to your car’s battery at any given moment. The higher the amps, the faster your EV can recharge—assuming your vehicle can accept the higher current.

However, faster isn’t always better if your electrical system isn’t prepared for the extra load. That’s why it’s important to understand how amperage, power output, and charging times are connected.

Level 2 EV Charging: The Basics

Level 2 charging stations operate at 240 volts—double the voltage of a typical household outlet. They deliver current anywhere from 15 amps to 80 amps. Portable Level 2 chargers often max out at around 32 amps, while hardwired models can deliver up to 80 amps for the fastest possible charging speeds.

For comparison, a standard Level 1 charger that plugs into a regular 120-volt outlet typically delivers just 12 to 16 amps—translating into much slower charging times.

How Fast is Level 2 Charging?

Level 2 chargers can deliver between 3.3 kW and 17.2 kW of power output, depending on the combination of voltage and amperage. In practical terms, this means you can add anywhere from 10 to 52 miles of driving range per hour of charging.

For example:

A 16-amp Level 2 charger might deliver around 3.8 kW of power—adding about 12-15 miles of range per hour.

A 40-amp charger can deliver closer to 9.6 kW—adding roughly 30 miles of range per hour.

An 80-amp charger can reach the upper limit—up to 17.2 kW—giving you the maximum possible speed for compatible vehicles.

Of course, the actual charge rate depends on your car’s onboard charging capacity. Some EVs can’t accept more than a certain amount of power, no matter how high the charger’s output.

Choosing the Right Amp Rating for Your Home EV Charger

Selecting the best amp rating for your home charger comes down to balancing three main factors: your vehicle’s charging capability, your daily driving habits, and your home’s electrical capacity.

1. Know Your Vehicle’s Maximum Charging Capacity

Not all EVs can take advantage of a high-amp charger. For example, many popular EVs have onboard chargers rated for 32 amps or 40 amps. Plugging into an 80-amp station won’t make your car charge faster if it’s only built to accept 40 amps.

Always check your vehicle’s specs to find its maximum AC charging rate.

2. Understand Your Driving Needs

If you only drive short distances each day, you might not need a high-amp charger. A 16-amp or 24-amp unit may be perfectly adequate to replenish your battery overnight.

On the other hand, if you have a longer daily commute or multiple EVs in the household, stepping up to a 32-amp or 40-amp charger can help ensure your car is ready to go every morning—especially if you need to top off quickly.

3. Verify Your Electrical System’s Capacity

Before choosing a high-amp charger, you’ll need to confirm that your home’s electrical panel can handle the extra load. A Level 2 charger requires a dedicated 240-volt circuit, and your electrician will need to install a circuit breaker sized appropriately.

As a safety rule, the National Electrical Code (NEC) recommends that continuous loads like EV chargers should run at no more than 80% of the circuit’s capacity. So if you install a 40-amp charger, you need a circuit rated for at least 50 amps. An 80-amp charger would require a 100-amp circuit.

This is why it’s crucial to involve a licensed electrician—they can evaluate your panel, check for available capacity, and help you plan any necessary upgrades.

Calculating Charging Speed: An Example

Let’s look at a practical scenario:

Charger rating: 32 amps at 240 volts

Power output: 32 amps × 240 volts = 7.7 kW

Miles of range per hour: Roughly 25 miles, depending on your vehicle’s efficiency

So, if you drive 50 miles per day, a 32-amp charger should be able to recharge your battery in about two hours.

Compare that to a lower 16-amp charger delivering about 3.8 kW—it would take roughly twice as long to replenish the same range.

Installation Requirements for Level 2 Chargers

Home Installation

Installing a Level 2 charger at home is relatively straightforward for an experienced electrician, but there are a few important considerations:

Dedicated 240-volt circuit: A dedicated line ensures your charger doesn’t share a circuit with other appliances, which helps prevent overloads.

Outlet or hardwired: Many home Level 2 chargers use a NEMA 14-50 outlet—similar to what’s used for electric dryers or RVs. Others are hardwired directly into your electrical panel.

Indoor vs. outdoor: An indoor installation, such as in a garage, offers better protection from weather and extends the charger’s lifespan. If you need to install outdoors, choose a unit with an appropriate weatherproof rating.

Depending on your home’s existing electrical panel and wiring, you may need to add a subpanel or upgrade your main service panel to accommodate the new circuit.

Commercial Installation

For workplaces, retail locations, and multi-unit dwellings, Level 2 charging installations require more planning:

Assess building capacity: The property’s existing electrical infrastructure must be able to handle multiple chargers running simultaneously.

Plan for growth: Many businesses choose to “future-proof” by installing extra conduit or panel space for adding more chargers later.

Load management: Advanced commercial chargers often include smart software to balance load, monitor usage, and ensure safe power distribution across multiple stations.

Businesses may also need to work with utility providers to manage demand charges and potentially qualify for rebates or incentives.

Electrical Codes and Safety Considerations

No matter where you install your Level 2 charger, local electrical codes and the National Electrical Code (NEC) govern how the installation must be done.

Key requirements include:

Properly sized conductors (wires)

Correct circuit breaker sizing (remember the 80% rule for continuous loads)

GFCI protection for certain outdoor outlets

Weatherproof enclosures for outdoor use

Safe routing and support of wiring

Failing to follow code can lead to safety hazards, fire risks, and voided warranties or insurance claims.

How to Future-Proof Your Installation

Even if you don’t currently need a high-amp charger, it’s worth considering your future needs. Many homeowners choose to install a higher-capacity circuit now, even if they use a lower-amp charger initially. That way, upgrading to a more powerful charger later is easier and less expensive.

For example, you might install a 50-amp circuit and use a 32-amp charger today. If you buy an EV with a higher onboard charger in a few years, you’ll be ready to upgrade without major rewiring.

How Amps Impact Cost

Higher-amp chargers tend to cost more—not just for the unit itself but also for installation. Heavier gauge wire, larger breakers, and potential service upgrades can all add to the total cost.

Before making a decision, it’s smart to get quotes from licensed electricians, compare options, and consider whether you might benefit from local utility incentives or tax credits for home EV charger installations.

Key Takeaways

Amps measure the flow of electrical current, determining how fast your EV can charge.

Level 2 chargers typically deliver between 15 to 80 amps, providing 10 to 52 miles of range per hour.

Choose an amp rating based on your EV’s capacity, driving habits, and your home’s electrical system.

Proper installation is crucial—a licensed electrician should install the charger, size the circuit breaker correctly, and ensure compliance with local codes.

Plan ahead: Installing a higher-capacity circuit now can make future upgrades easier and more cost-effective.

Conclusion

Installing a Level 2 EV charger is one of the best ways to make owning an electric vehicle more convenient and practical. By understanding how amps work, what your charging needs are, and what your home or commercial building can support, you can make a well-informed decision that balances speed, safety, and cost.

Always consult with an experienced electrician and your local utility provider to ensure your system is ready for the additional load—and to take advantage of any rebates or incentives that can help offset installation costs.

With the right Level 2 charging setup, you’ll enjoy faster, safer, and more reliable charging—making it easier than ever to keep your EV ready for the road ahead.
