Level 3 Electric Vehicle Charger: Speed, Technology, and the Future of EV Charging

As the electric vehicle (EV) revolution gains momentum, the need for faster, more efficient charging infrastructure becomes increasingly critical. Among the various charging options available, Level 3 electric vehicle chargers, also known as DC Fast Chargers (DCFC), stand out as the gold standard for rapid charging. These chargers are designed to dramatically reduce charging time, making them ideal for highway rest stops, commercial fleets, and urban mobility hubs.

Whether you're driving a Tesla, a Nissan Leaf, or a Porsche Taycan, chances are you’ll encounter a Level 3 electric vehicle charger on your journey—especially if you’re looking to recharge in under an hour. With the ability to deliver anywhere from 50 kW to 500 kW of power, Level 3 electric vehicle chargers can add 100 to 250 miles of range in just 30 to 45 minutes, depending on the vehicle’s capacity and state of charge.

In this article, we’ll break down how Level 3 EV chargers work, what makes them different from Level 1 and Level 2 chargers, how much power they deliver, and why they’re essential for the future of electric mobility.

Unlike Level 1 and Level 2 charging systems that rely on a vehicle’s onboard charger to convert Alternating Current (AC) to Direct Current (DC), Level 3 electric vehicle chargers perform the AC-to-DC conversion internally. This allows them to bypass the limitations of the EV’s built-in charger and supply electricity directly to the battery at high voltage and high current—resulting in much faster charging times.

Level 3 charging requires specialized equipment and is typically installed in commercial or public settings due to the infrastructure and power requirements. These chargers operate at voltages ranging from 400V to 800V, and in some cases up to 1000V DC, to accommodate newer EV models with high-voltage battery systems.

Power Output: Ranges from 50 kW to 500 kW.

Voltage Range: Typically 400V to 800V; some models support up to 1000V DC.

Charging Time: Can add up to 20 miles of range per minute.

Ideal For: Long-distance travel, fleet operations, urban fast-charging stations.

Tesla’s Supercharger network is one of the most well-known implementations of Level 3 charging, with chargers capable of delivering up to 250 kW. Other major players include EVgo, Electrify America, ChargePoint, and EVESCO, all of which offer public Level 3 DC fast-charging stations across North America and other parts of the world.

EVESCO’s EVDC series is a prime example of next-generation DC fast chargers. These units offer power outputs from 60 kW to 360 kW, support both 400V and 800V EV architectures, and can charge two electric vehicles simultaneously using intelligent power splitting. If only one vehicle is connected, it receives the full power; when a second vehicle connects, the system evenly distributes the power load.

EVESCO’s chargers are OCPP 1.6 and ISO 15118 compliant, support a variety of connector configurations, and feature modular designs for flexible deployment in different environments.

To appreciate why Level 3 charging is so fast, it helps to understand how electricity works in an EV. While electricity is transmitted over long distances using Alternating Current (AC) for efficiency, EV batteries require Direct Current (DC) to charge. In Level 1 and Level 2 charging, this conversion happens inside the vehicle via an onboard charger, which limits the speed of charging to about 1.4 kW (Level 1) or up to 19.2 kW (Level 2).

Level 3 Electric Vehicle chargers handle the AC-to-DC conversion externally and deliver pure DC power directly into the battery, sidestepping the onboard charger. This is not only faster but also more efficient.

One important characteristic of Level 3 charging is that charging speed varies with the battery’s state of charge (SOC). When the battery is nearly empty, it can accept high power levels. However, as it fills up—especially beyond 80%—the system automatically reduces the charging rate to avoid overheating or damaging the battery cells.

For this reason, EV manufacturers and infrastructure providers often recommend charging up to 80% for optimal speed and efficiency, unless you truly need the additional range.

For example, charging from 10% to 80% might take 30 minutes, but going from 80% to 100% could take another 30 minutes on its own. This behavior is governed by sophisticated battery management systems that monitor temperature, voltage, and charging current in real-time.

Most Level 3 Electric Vehicle chargers deliver between 50 kW and 350 kW of power, with some advanced models now reaching up to 500 kW. However, the actual charging speed is also influenced by the EV’s onboard charging capacity. If your car can only handle 100 kW, that will be the maximum rate—even when plugged into a 350 kW charger.

Here’s a breakdown of how charging speed translates into range:

These figures are approximate and vary by vehicle efficiency, battery size, and environmental conditions.

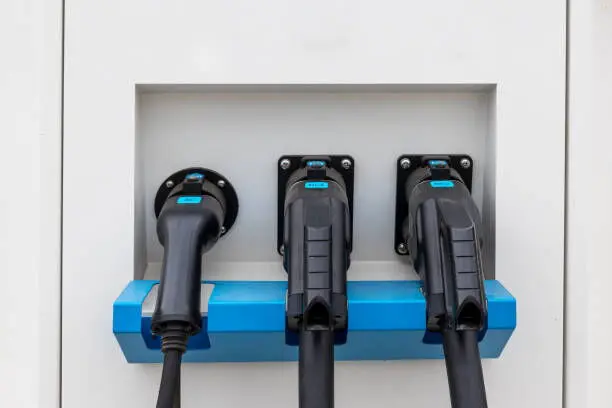

Level 3 electric vehicle chargers come with different types of connectors, including:

CCS (Combined Charging System) – Most common in Europe and North America.

CHAdeMO – Popular in Japanese EVs like the Nissan Leaf.

Tesla Supercharger – Proprietary but now being adapted to support CCS in some markets.

Some chargers offer multiple connectors to support different vehicle types. Compatibility is improving across the board as manufacturers adopt more universal standards, and many Level 3 stations now offer adapter solutions as well.

Frequent use of Level 3 charging has sparked discussions around battery degradation. While it's true that high-speed charging generates more heat, modern EVs are engineered to handle these conditions using advanced thermal management systems. Occasional Level 3 charging won’t significantly harm the battery, but daily reliance on fast charging may reduce battery lifespan over time compared to slower charging options.

For most EV owners, the best approach is to use Level 1 or Level 2 chargers for daily use and reserve Level 3 electric vehicle chargers for long-distance trips or emergencies.

Level 3 electric vehicle chargers are a game-changer in several use cases:

Highway Corridors: Ideal for long-distance drivers who need to recharge quickly.

Fleet Operations: Electric taxis, buses, and delivery vehicles benefit from rapid turnaround times.

Urban Fast-Charging Hubs: Essential for rideshare drivers and busy EV owners in metropolitan areas.

Commercial Properties: Shopping centers and restaurants use Level 3 stations to attract EV-driving customers.

EVESCO’s EVDC series, with its modular design and smart charging features, is particularly well-suited for commercial and municipal applications, enabling simultaneous multi-vehicle charging with smart energy distribution.

With the rapid growth of EV adoption, the demand for ultra-fast charging is set to surge. Automakers are already releasing vehicles capable of handling 800V charging architectures, enabling them to take full advantage of 300 kW+ chargers.

Governments and private companies are investing heavily in expanding fast-charging networks. The U.S. Infrastructure Investment and Jobs Act, for example, allocates billions toward nationwide EV charging infrastructure, with a strong emphasis on Level 3 DC fast chargers.

Moreover, new technologies like battery-swapping, vehicle-to-grid (V2G) integration, and AI-powered charging management systems are on the horizon, promising to further enhance the efficiency and reliability of Level 3 chargers.

Level 3 electric vehicle chargers are revolutionizing the way we think about refueling. By offering the fastest charging speeds available, these chargers are making EVs more practical for a wider range of drivers—especially those with long commutes or who travel frequently.

With advancements in battery technology, charging standards, and power electronics, Level 3 chargers are set to become even more powerful, versatile, and accessible in the years ahead.

Whether you're an EV owner, fleet operator, or infrastructure planner, understanding the capabilities and benefits of Level 3 chargers is essential for navigating the future of electric mobility.
