The rapid expansion of electric mobility across North America has intensified the need for a simpler, more efficient, and universally accepted charging infrastructure. For years, the EV ecosystem has been fragmented by competing charging standards, varying connector designs, and inconsistent charging experiences across networks. Against this backdrop, the emergence of the North American Charging Standard (NACS)—officially standardized as SAE J3400—represents one of the most significant developments in the evolution of electric vehicle (EV) charging systems.
Originally developed and deployed by Tesla as a proprietary charging connector, NACS has now transitioned into an open and standardized system that is rapidly being adopted by global automakers and charging network operators. In November 2022, Tesla made its charging connector design and technical specifications publicly available, allowing the broader industry to integrate it into their vehicles and infrastructure. This move has accelerated the standardization process and positioned NACS as a potential dominant charging interface in North America.
Today, SAE J3400 is widely recognized as a next-generation EV charging standard that combines compact design, high power capability, and dual AC/DC functionality into a single connector system. Its growing adoption marks a shift toward interoperability, cost efficiency, and improved user experience in EV charging networks.
The North American Charging Standard, commonly referred to as NACS, is an EV charging connector system designed to support both alternating current (AC) and direct current (DC) charging through a single unified interface. Unlike earlier charging standards that required separate pins or connectors for different charging modes, NACS uses a simplified architecture that enables both AC and DC power delivery through the same set of electrical contacts.
Now formally standardized under SAE J3400 by SAE International, the system has moved from a proprietary Tesla technology to an industry-wide charging standard. SAE International plays a central role in developing and maintaining global mobility engineering standards, ensuring safety, compatibility, and performance across automotive technologies.
One of the most important milestones in the evolution of NACS was its public release by Tesla. This allowed other automakers and charging infrastructure providers to adopt the connector without licensing restrictions, accelerating its spread across the North American EV market.

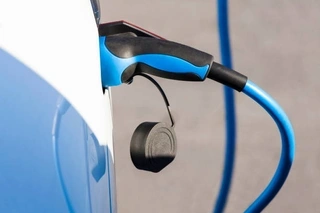

The NACS connector is designed to be compact yet highly capable, supporting high-power fast charging while maintaining ease of use. Compared to traditional EV connectors, it integrates multiple functions into a streamlined physical interface.
One of the most notable advancements in the SAE J3400 standard is its ability to support up to 1000V system architecture and charging power levels reaching approximately 350 kW. This enables significantly faster charging times, especially for modern high-voltage EV platforms.
The increased voltage capability allows manufacturers to design vehicles with more efficient powertrains and larger battery packs without compromising charging speed.
The physical design of the NACS connector is smaller and lighter than many existing alternatives, particularly when compared to CCS1 (Combined Charging System Type 1). This reduction in size improves ergonomics for users and reduces mechanical stress on charging cables and ports.
The lighter cable weight also enhances usability in public charging environments, making it easier for drivers to handle the connector during frequent charging sessions.
A defining feature of NACS is its ability to support both AC and DC charging using a shared set of power pins. This eliminates the need for separate interfaces and reduces complexity in both vehicle and charging station design.
This unified architecture simplifies manufacturing, reduces costs, and streamlines infrastructure deployment.
Before the widespread adoption of NACS, the dominant charging system in North America was CCS1 (Combined Charging System Type 1). CCS1 uses separate pins for AC and DC charging, resulting in a more complex connector design.
In contrast, SAE J3400 integrates both charging types into a single shared interface. This fundamental difference has several implications:
NACS reduces the number of physical components required in both vehicles and chargers, leading to lower production costs and improved reliability.
The compact design of NACS makes it easier for users to plug and unplug, particularly in adverse weather conditions or high-traffic charging stations.
Because the same pins are used for both AC and DC charging, vehicle systems must intelligently detect the type of current being delivered. This requires advanced onboard power electronics and safety protocols.
As more automakers adopt NACS, CCS1 infrastructure may gradually decline or require adapters for compatibility. This transition period is expected to shape North America's EV charging landscape for years to come.
Although the NACS system simplifies physical design, it introduces advanced electronic control requirements to ensure safe operation.
Since the same pins are used for both AC and DC charging, vehicles must be capable of automatically identifying the type of charging source connected. This prevents hazardous conditions such as incorrect voltage exposure or electrical mismatch.
The system relies on communication protocols between the vehicle and charging station to manage:
- Voltage and current limits
- Charging state monitoring
- Thermal regulation
- Emergency shutdown procedures
This intelligent communication layer ensures that charging is both safe and efficient under all operating conditions.
The NACS connector includes five primary contact points, each serving a specific function in the charging process. These contacts ensure safe energy transfer, system communication, and physical security.
This contact carries either AC phase current or DC positive current depending on the charging mode. It is one of the main power delivery pathways.
L2 serves as the second power conductor, completing the electrical circuit for both AC and DC charging operations.
The grounding pin provides a critical safety pathway for stray electrical currents. It protects users and equipment by redirecting fault currents away from the vehicle body and charging system.
The Control Pilot is responsible for communication between the vehicle and charging station. It manages:
- Charging authorization
- Power level negotiation
- Charging status monitoring
- Fault detection and shutdown commands
This is one of the most important safety and control components in the connector system.
The Proximity Pilot detects whether the connector is physically attached to the vehicle. It ensures that charging cannot begin unless a secure connection is established and also helps prevent accidental disconnection during operation.
Beyond electrical design, NACS incorporates several mechanical safety mechanisms. The connector includes a locking system that prevents accidental unplugging during charging. This is particularly important in high-power DC fast charging scenarios where electrical arcing or sudden disconnection could cause damage.
The ergonomic shape of the connector also reduces user error, ensuring that the plug can only be inserted in the correct orientation. Combined with electronic verification systems, these features create a multi-layered safety architecture.

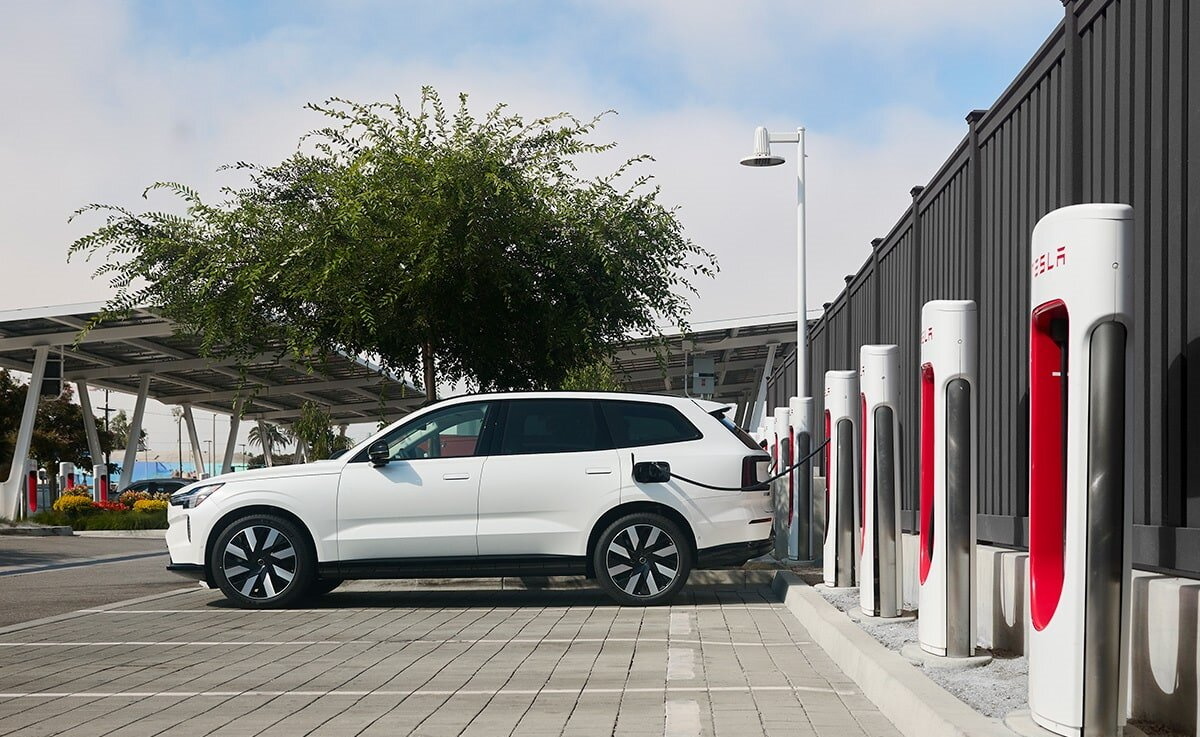

The release and standardization of NACS under SAE J3400 has triggered a significant shift in the EV industry. Multiple automakers have announced plans to adopt the connector in future vehicle models, while charging network operators are upgrading infrastructure to support compatibility.
This transition is not merely a technical upgrade—it represents a structural transformation of the North American EV ecosystem. By moving toward a single standardized connector, the industry aims to reduce fragmentation and improve interoperability across brands and networks.
Charging infrastructure providers benefit from:
- Reduced hardware complexity
- Lower maintenance costs
- Increased vehicle compatibility
- Higher utilization rates
For consumers, the advantages include simplified charging experiences, fewer adapters, and broader access to charging stations.
From an engineering perspective, NACS offers several long-term advantages that make it attractive to manufacturers and infrastructure developers.
The system is designed to support future increases in charging power beyond current limits, making it suitable for next-generation EV platforms.
Reduced resistance and optimized contact design help manage heat generation during high-power charging sessions.
Fewer components and simplified architecture reduce production costs for both vehicles and chargers.
Advanced communication protocols enable smarter energy management, including load balancing and grid interaction.
The formal adoption of SAE J3400 by SAE International is a critical step in establishing long-term stability for the charging ecosystem. Standardization ensures that all manufacturers adhere to consistent technical requirements, improving safety and compatibility across the board.
Standards organizations also play a key role in updating specifications as new technologies emerge, ensuring that the NACS system remains future-ready.
The long-term outlook for NACS suggests continued expansion and dominance in the North American EV market. As more automakers integrate the standard into their vehicles, charging infrastructure will increasingly shift toward universal compatibility.
Over time, this could lead to:
- Gradual phase-out of competing connector types
- Unified national charging infrastructure
- Faster deployment of high-power charging stations
- Improved consumer confidence in EV adoption
However, the transition will require significant coordination between automakers, charging networks, and regulatory bodies.
The North American Charging Standard (NACS), formally known as SAE J3400, represents a major milestone in the evolution of electric vehicle charging technology. Originating from Tesla and now adopted as an industry-wide standard under SAE International, it brings together compact design, high-power capability, and dual AC/DC functionality into a single unified system.
By simplifying hardware architecture, improving user experience, and enabling faster charging speeds, NACS is reshaping the future of EV infrastructure in North America. Its widespread adoption signals a move toward greater standardization, interoperability, and efficiency across the entire electric mobility ecosystem.
As the industry continues to evolve, SAE J3400 is positioned to become the foundation of next-generation charging networks, supporting the continued growth of electric transportation in the years ahead.
