As electric vehicles (EVs) continue to gain traction across global markets, the infrastructure supporting their growth is evolving rapidly. Central to this infrastructure are EV chargers, which come in a variety of types and specifications. Among these, Type 1 and Type 2 chargers are the most widely recognized and used, depending on the region. Understanding the differences between these two charger types is essential for EV owners, prospective buyers, and industry stakeholders alike.
Each EV is equipped with a specific type of connector—either Type 1 or Type 2—commonly referred to as a plug or socket. This connector, located on the vehicle’s body (typically on the side or front), must be compatible with the charging cable in order for the vehicle to charge. Incompatibility between the plug and charger could mean slower charging, or worse, an inability to charge altogether.
In this article, we’ll explore what distinguishes Type 1 and Type 2 EV chargers, from their physical design and charging capabilities to their geographic prevalence and use cases. Whether you’re considering an EV purchase or are simply curious about how EV charging works, this guide will help clarify the nuances between these two crucial charging standards.

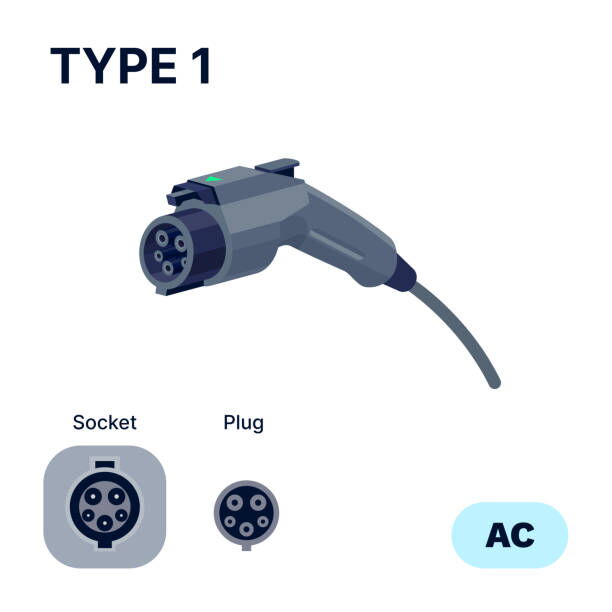

The Type 1 EV charger is most commonly associated with electric vehicles sold in North America and parts of Asia. It uses a 5-pin connector and operates using a single-phase power supply. The Type 1 connector, also known as the SAE J1772 connector, is designed for AC (Alternating Current) charging and supports power outputs typically ranging from 3.6 kW to 7.4 kW.
One distinguishing feature of the Type 1 connector is its rounded design with five contact pins: two for power, one for ground, and two for communication between the vehicle and the charger. This design is relatively simple and effective for the needs of smaller EVs and plug-in hybrids.
However, one drawback is the absence of an automatic locking mechanism. When connected, the plug does not lock into the socket unless manually secured with a clip or latch. This makes it vulnerable to accidental disconnection, especially in public charging scenarios or adverse weather conditions.
Because the Type 1 charger is designed for single-phase AC charging, its power output is inherently limited. The most you can expect from a Type 1 charger is about 7.4 kW, which translates to moderate charging speeds—adequate for overnight home charging but not ideal for fast public charging scenarios.
Type 1 connectors are commonly found on several EV models sold in North America and Japan. Examples include:
Nissan Leaf (earlier models)
Mitsubishi Outlander PHEV
Chevrolet Volt and Spark EV
Ford Focus Electric (earlier models)
Kia Soul EV (some versions)

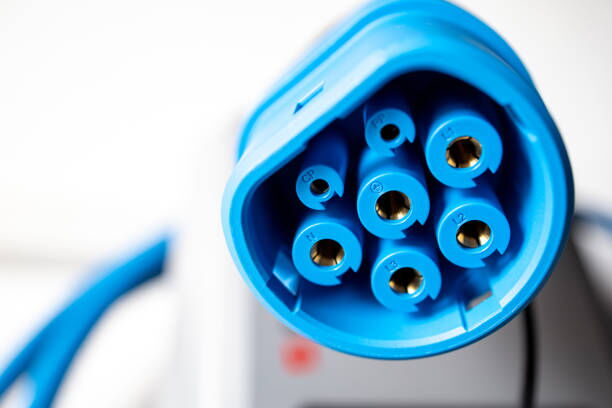

Type 2 EV chargers, also known as Mennekes connectors, have become the standard across Europe and are gaining popularity worldwide. The connector features a 7-pin design that supports both single-phase and three-phase AC charging, making it much more versatile than its Type 1 counterpart.
The Type 2 connector has a more oval shape and seven contact points—three for phase power, one for neutral, one for ground, and two for communication. One major advantage is that it supports an integrated locking mechanism. When plugged in, the vehicle and the charger communicate electronically to secure the plug in place, enhancing safety and reliability.
Thanks to its compatibility with three-phase power supplies, Type 2 chargers can deliver significantly higher charging speeds. Home chargers using single-phase Type 2 cables typically offer up to 7.4 kW, similar to Type 1. However, when connected to a three-phase supply, Type 2 chargers can deliver 11 kW or even 22 kW, substantially reducing the time required to recharge an EV.
In public charging environments, this makes the Type 2 plug ideal for fast and semi-fast charging stations. Many AC chargers in public spaces, especially across Europe, use Type 2 connectors for this reason.
Most modern EVs sold in Europe come with Type 2 connectors. Some popular examples include:
BMW i3 and i8
Audi e-tron
Tesla Model 3, Model S (European versions)
Mercedes-Benz EQ series
Renault Zoe
Hyundai Kona Electric and IONIQ 5
Volkswagen ID.3 and ID.4
Let’s break down the major differences between these two EV charger types across several key aspects:
Type 1: Features five pins and a circular plug. Lacks an automatic locking system.
Type 2: Features seven pins and an oval-shaped plug. Includes an automatic locking mechanism for enhanced safety and stability.
Type 1: Limited to single-phase AC charging, offering speeds of 3.6 kW to 7.4 kW.
Type 2: Compatible with both single-phase and three-phase AC charging, allowing for higher power delivery up to 22 kW in public settings.
Type 1: No built-in locking mechanism; relies on external clips.
Type 2: Includes secure electronic locking, reducing the risk of accidental unplugging.
Type 1: Common in the United States, Canada, Japan, and South Korea.
Type 2: Standard across Europe, and increasingly adopted in other regions as part of global harmonization efforts.
Type 1: Rarely supported in public charging stations outside North America and Asia.
Type 2: Widely supported in public charging stations, especially in Europe, making it more convenient for travel and long-distance EV use.
The question of which charger type is “better” depends on several factors, including your location, vehicle type, and personal charging habits.
You own an EV or plug-in hybrid designed for North American or Asian markets.
You primarily charge your vehicle at home using a single-phase power supply.
You have no immediate need for fast charging or public charging infrastructure.
You live in or travel frequently in Europe.
You require access to fast public charging stations.
You drive a newer EV that supports three-phase charging for higher power levels.
You prefer the convenience and safety of a locking connector mechanism.
In the long term, Type 2 chargers are generally more future-proof, thanks to their widespread adoption and higher charging capacity. The shift toward Type 2 standards is already evident, with many global automakers phasing out Type 1 connectors for international markets.
As the EV market expands and evolves, charging standards are also advancing. While Type 1 and Type 2 remain dominant for AC charging, Direct Current (DC) fast charging solutions are gaining ground, particularly for long-distance travel and commercial EVs.
For DC charging, standards like CHAdeMO (popular in Japan) and CCS (Combined Charging System) are widely used. Interestingly, the CCS standard builds upon Type 1 or Type 2 designs by adding two additional DC pins, allowing for ultra-fast charging through a single, combined connector.
Governments and automakers are increasingly favoring harmonized charging standards to support international EV adoption. As such, it’s likely that Type 2 and CCS will continue to become more dominant in global markets, gradually replacing legacy systems like Type 1 and CHAdeMO.
Understanding the differences between Type 1 and Type 2 EV chargers is crucial not only for making informed decisions as a car buyer but also for ensuring compatibility, efficiency, and convenience when charging your electric vehicle. While both types serve the same fundamental purpose—charging your EV—their designs, regional usage, and capabilities vary significantly.
Type 1 chargers are ideal for users in North America and parts of Asia who charge mostly at home and don’t need fast charging speeds.
Type 2 chargers offer greater versatility, faster charging capabilities, and are becoming the global standard, especially across Europe and other international markets.
As electric mobility continues to evolve, understanding these charging standards will empower consumers and businesses alike to stay ahead of the curve and make better decisions for a more sustainable future.
