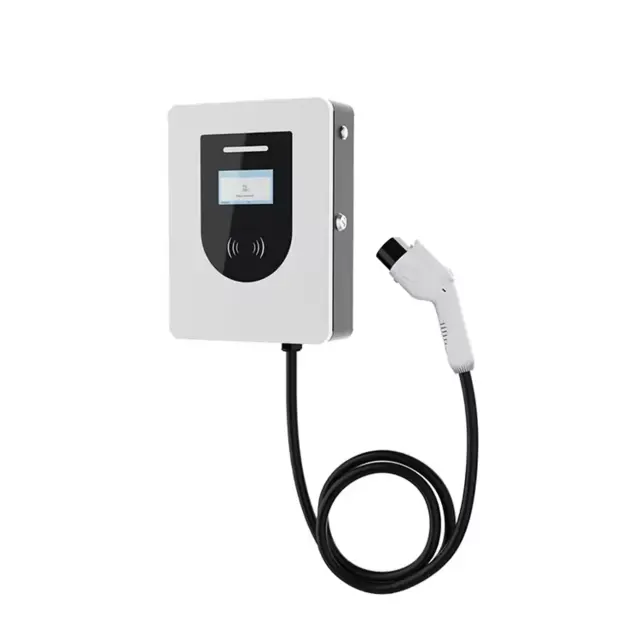

11kW AC EV Chargers, 16A, 380V, OCPP1.6, Multiple Protection
Key Specifications / Features
Model no.: ACEVC-20240815-01
Hits: 2
Equipped with the OCPP 1.6 interface, these AC EV car chargers deliver robust performance with an 11kW output power and 16A input/output current. Designed for durability and convenience, they feature an IP54 protection rating to ensure resistance to dust and water. The 5-meter cable length offers flexibility for various installation scenarios. Whether for home or commercial use, our AC EV chargers are engineered to provide a seamless and high-performance charging experience for your electric vehicle.
Request a quote
Tags
Detail Information
380V AC EV Chargers, 16A Current, 11kW Output, IP54, Natural Cooling.
| Product Item: | AC EV Chargers |
| Interface Standard: | OCPP1.6 |
| Output Current: | AC |
| Output Power: | 11kW |
| Input Voltage: | 380V±10% |
| Rated Intput Current: | 16A |
| Rated Output Current: | 16A |
| Way of Communication: | Ethernet/4G Optional/Offline |
| Size(H*W*D): | 380*280*106 mm |
| Weight: | ≤ 6.5 kg |
| IP Protection: | IP54 |
| Cooling: | Natural Cooling |
| Operating Temperature: | -20°C to +50°C |
| Storage Temperature: | -20°C to +50°C |
| Screen Size: | 4.3-inch Color Touch Screen |
| Length of Charging Plug: | 5 Meter |
| Multiple Protection: | With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection. |
