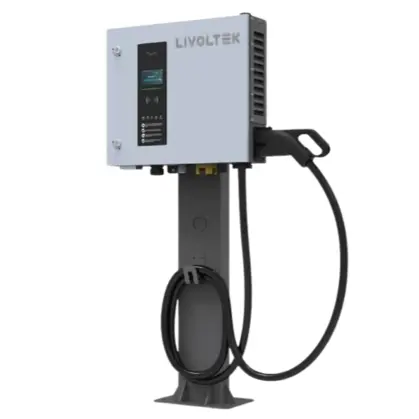

30kW DC EV Charger, OCPP 1.6J, IK10 & IP54, 3P+N+PE
Key Specifications / Features
Model no.: DCEVC-20240910-06
Hits: 1
As a leading three-phase DC EV charger supplier in China, we provide a robust charger featuring 30kW rated power and a CCS2 connector for efficient and fast charging. Operating with a voltage range of 150V DC to 1000V DC, this charger supports 3P+N+PE configurations for reliable performance. Built to withstand tough environments, it offers IK10 impact resistance and IP54 protection against dust and water. Equipped with OCPP 1.6J for smart charging management, this charger is an ideal solution for commercial and public EV charging applications, ensuring durability and top-tier performance.
Request a quote
Tags
Detail Information
| Product Item: | DC EV Charger |
| Power Specifications | |
| Input Connection: | Three-phase: 3P+N+PE |
| Input Voltage: | 400V AC ± 10% |
| Frequency: | 50Hz or 60Hz |
| THDi: | ≤5% |
| Power Factor: | ≥0.98 |
| Output Voltage: | 150V DC - 1000V DC |
| Max. Output Current: | 100A (125A CHAdeMO) |
| Rated Power: | 30kW |
| User Interface & Control | |
| LCD Display: | 4.3-inch Color Touch Screen |
| User Authentication: | RFID(ISO/IEC 14443), (APP/Credit Card Customization) |
| LED Indicator: | Green, Blue, Red |
| Charger Connector: | CCS2 (CCS1/CHAdeMO Optional) |
| Energy Measuring: | DC meter, with 1% accuracy |
| Communication | |
| Backend: | Ethernet, Bluetooth, Wi-Fi (4G Optional) |
| Charging Protocol: | ISO 15118, DIN 70121 |
| Backend Protocol: | OCPP 1.6J |
| Protection | |
| Residual Current Device: | Yes |
| Internal Fuse: | Yes |
| Electrical Protection: | Over/under voltage Protection, Overcurrent Protection, OverTemperature Protection, Grounding Protection,Surge Protection, Short Circuit Protection,Fault Self-check, In sulation Detection and Other Multiple Protection Functions. |
| Environmental | |
| Operating Temperature: | -30°C - +50°C |
| Storage Temperature: | -40°C - +75°C |
| Operating Humidity: | Max. 93% RH, Non-Condensing |
| Operating Altitude: | ≤2000m |
| IP Level: | IP54 |
| IK Level: | IK10 |
| Cooling Method: | Fan Cooling |
| Mechanical | |
| Product Dimension(W*D*H): | 640mm*160mm*550mm |
| Package Dimension(W*D*H): | 808mm*438mm*748mm |
| Charging Cable Length: | 5m (customizable) |
| Weight: | 80kg (Net)/85.7kg Gross) |
| Mounting: | Wall-mount and Stand-mount |
| Certifications | |
| Safety: | CE |
