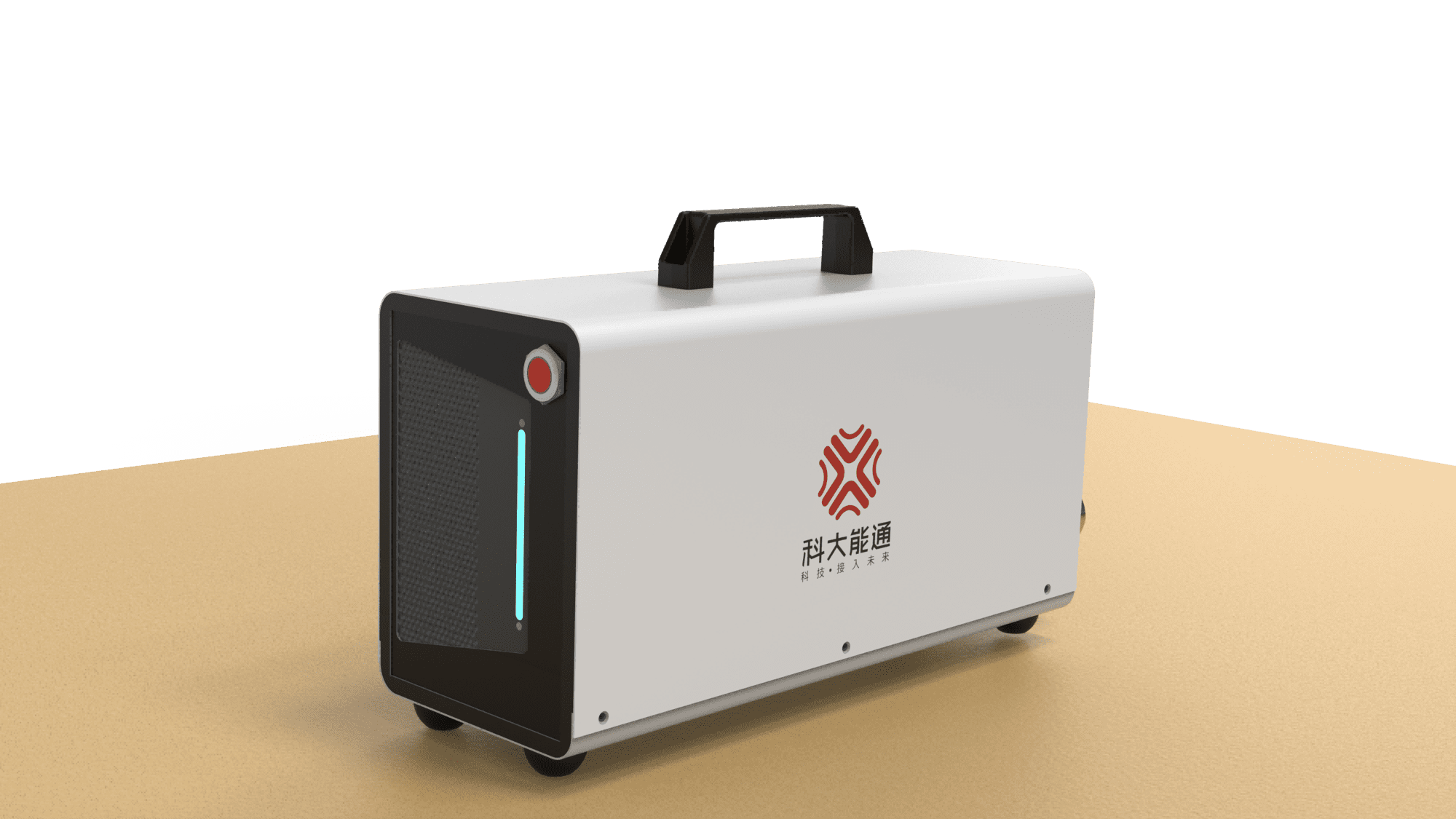

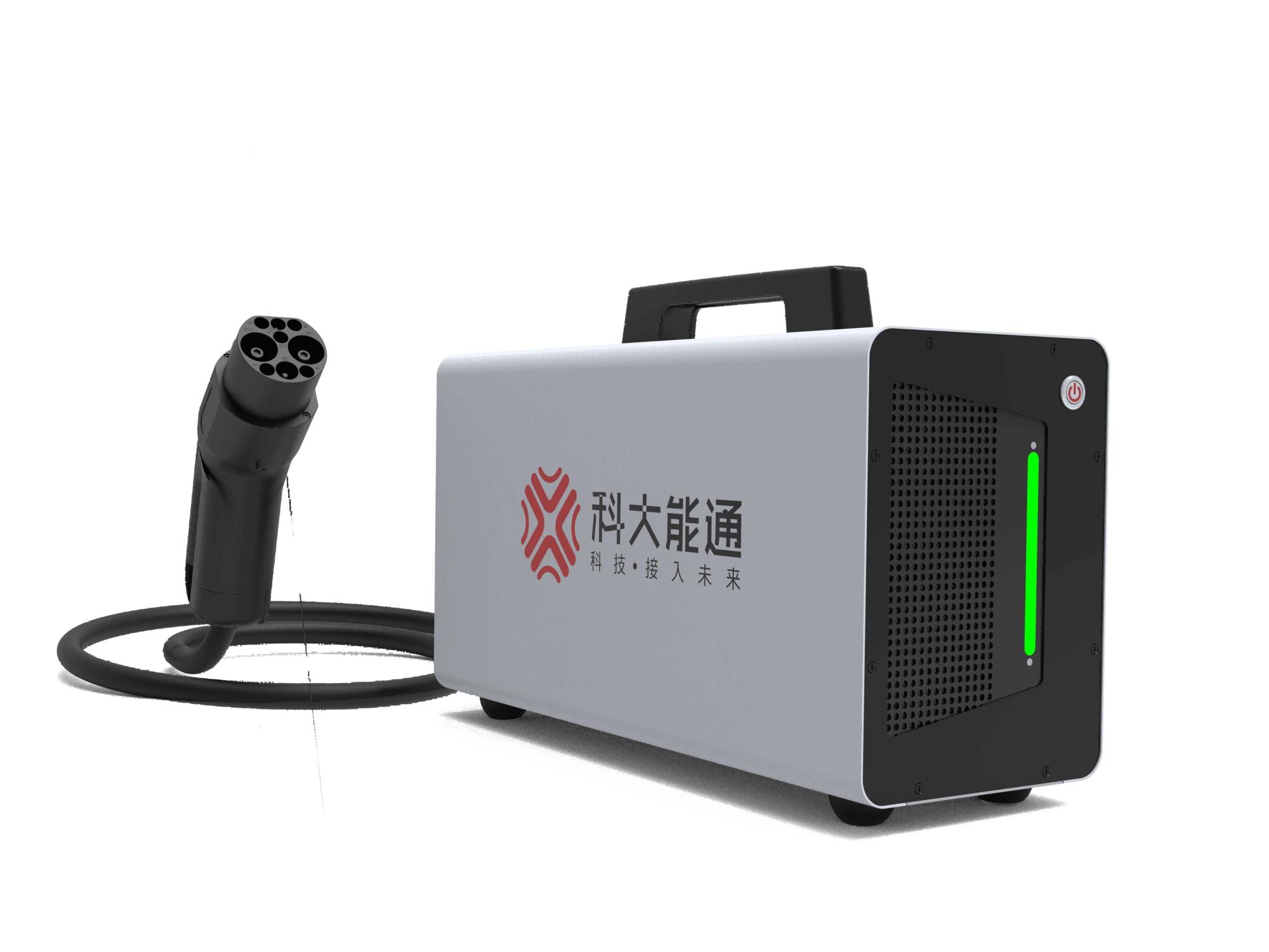

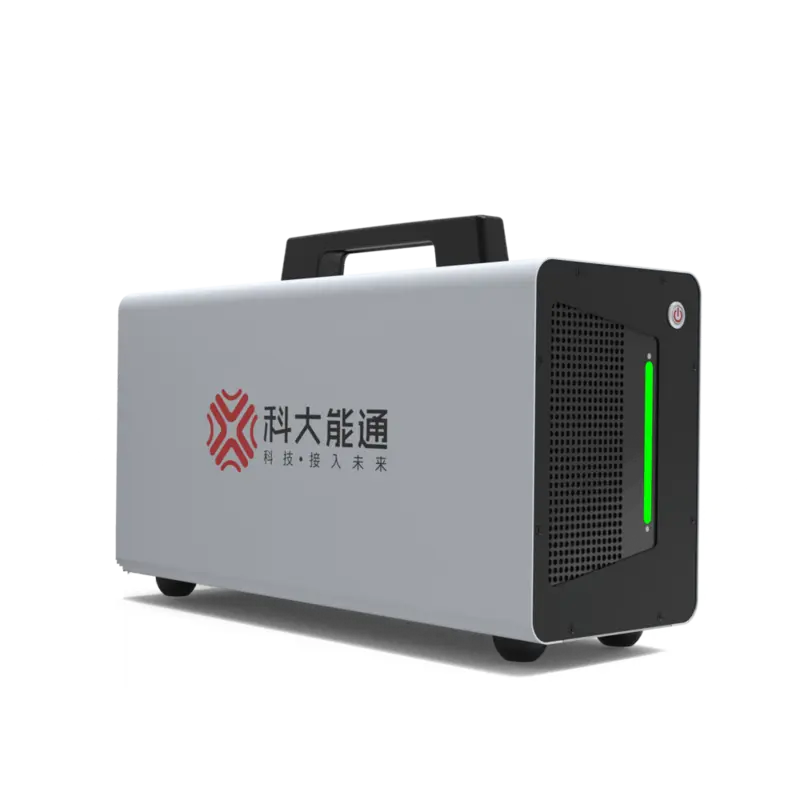

Portable DC EV Charger, 7kW, IP54, 220V AC, 50-60 Hz

Name: Portable DC EV Charger, 7kW, IP54, 220V AC, 50-60 Hz
SKU: dcevc-20240913-05
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

Model No.: DCEVC-20240913-05

As a leading portable DC EV charger factory in China, we offer a 7kW charger with IP54 protection, designed for reliable outdoor use. With a 220V AC input and a maximum output of 750V DC, it delivers efficient charging for a range of electric vehicles. Equipped with 4G communication and supporting both 50Hz and 60Hz frequencies, it ensures seamless connectivity. The charger features a compact, lightweight design with one-button charging, making it easy and convenient to use, whether at home or on the go.

Request a quote

Detail Information

Product Item:	Portable DC EV Charger
Power Specification:	7kW
Maximum Output Voltage:	750V DC
Input Voltage:	220V AC
Operating Temperature:	-30°C to 60°C
Input Frequency:	50Hz, 60Hz
IP Rating:	IP54
Altitude:	≤2000m
Charging Interface:	GB/T 20234.3
Communication Protocol:	GB/T 27930
Ambient Humidity:	RH5% - 95%
Communication Mode:	4G (optional)
Dimension (WHD):	391217.4154.4mm
Startup Mode:	Plug and Play/Swipe/Scan/NFC/Bluetooth
Features:	Compact, lightweight design with one-button charging for easy use. It includes automatic insulation, connection monitoring, and alarm functions for safety. It supports live power input for local charging. Thickened metal shell, IP54 rated for outdoor non-rainy use.
