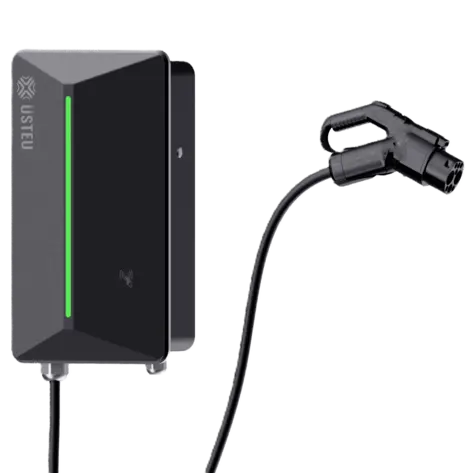

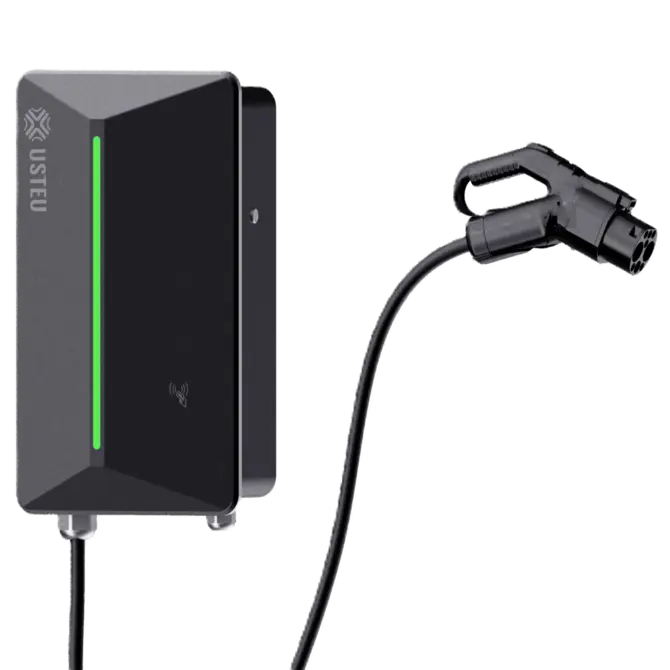

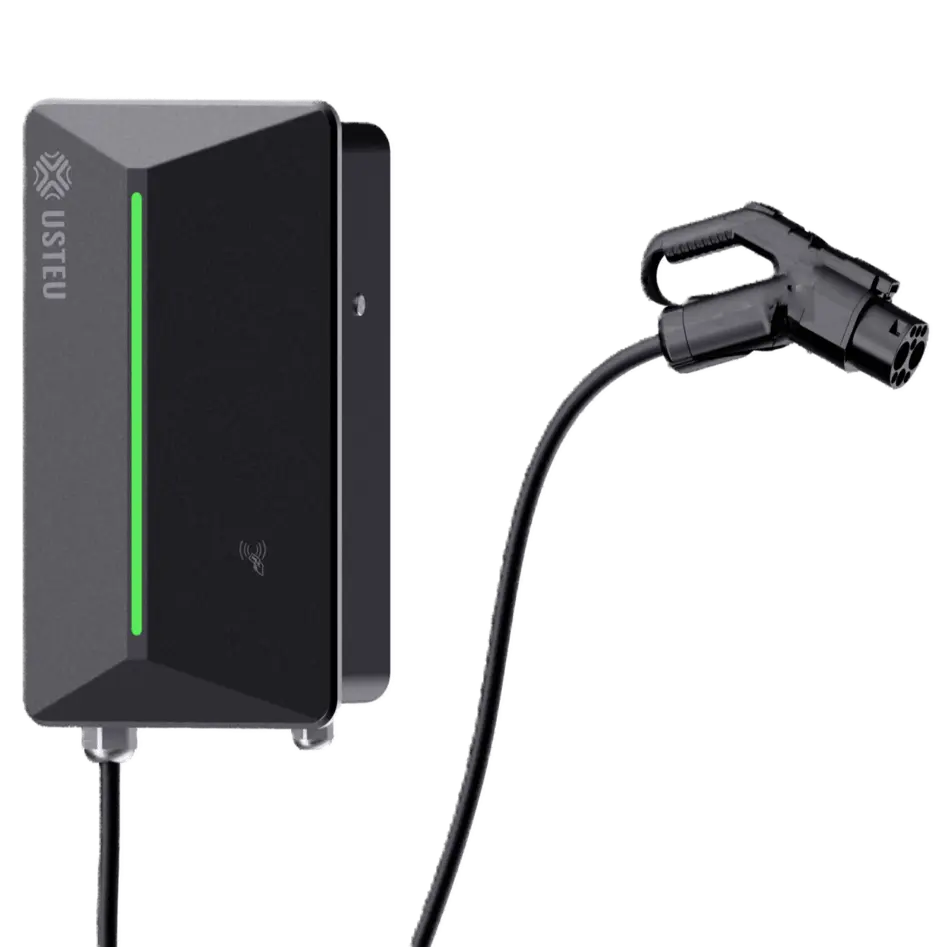

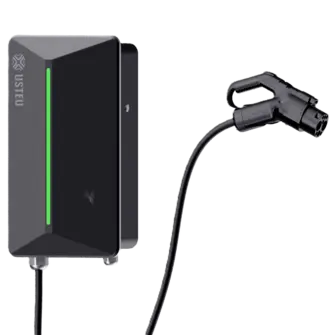

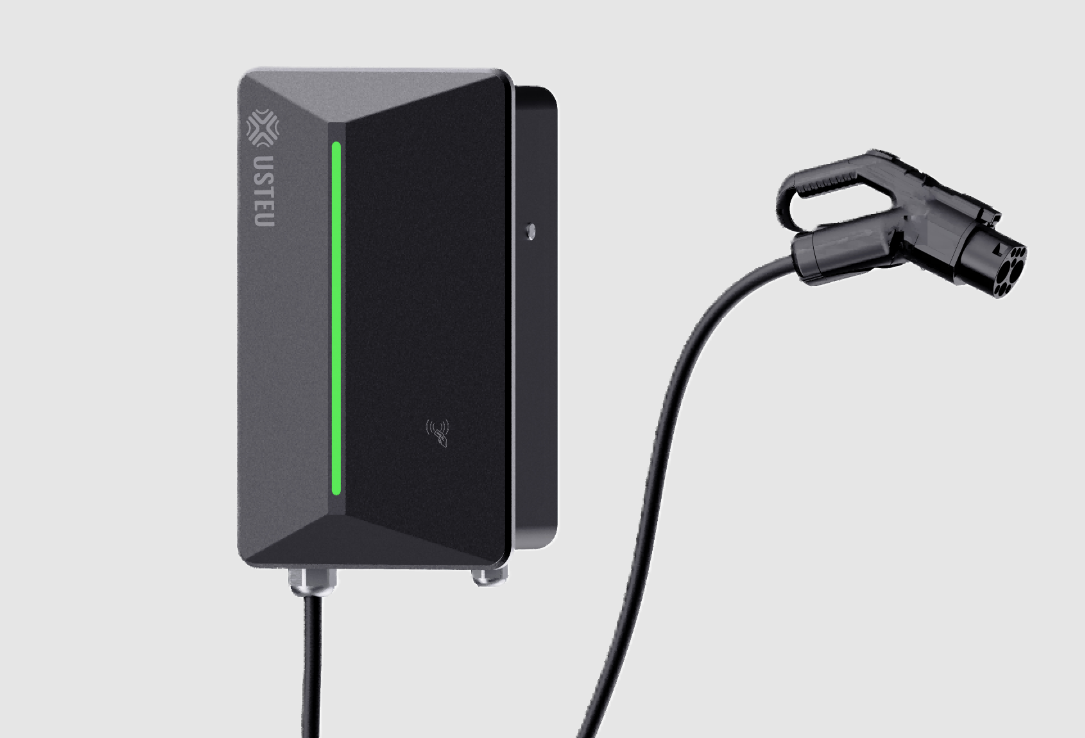

Home DC EV Charging Pile, IP55, 380V AC, DC 200V-750V
Key Specifications / Features
Model No.: DCEVC-20240913-06
Hits: 47
As a leading DC EV charger manufacturer in China, we offer a 7kW charger with flexible wall and pole mounting options and IP55 protection for outdoor use. The charger supports a wide range of voltages from DC 200V to 750V, ensuring compatibility with various EV models. It features convenient charging options, including plug-and-play, swipe card, NFC, and app-based scanning, along with remote reservation capabilities. Built with a durable, thickened metal shell, it delivers robust performance in diverse environments, supported by 4G or Ethernet connectivity for seamless operation.
Request a quote
Tags
Detail Information
| Product Item: | Home DC EV Charging Pile |
| Power Specification: | 7kW |
| Output Voltage: | DC 200V-750V |
| Input Voltage: | 380V AC |
| Operating Temperature: | -30°C to 60°C |
| Input Frequency: | 50Hz, 60Hz |
| IP Rating: | IP55 |
| Altitude: | ≤2000m |
| Charging Interface: | GB/T 20234.3 |
| Communication Protocol: | GB/T 27930 |
| Ambient Humidity: | RH5% - 95% |
| Communication Mode: | 4G (optional) |
| Mounting Method: | Wall Mount, Pole |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Dimension (W*H*D): | 520*310*165mm |
