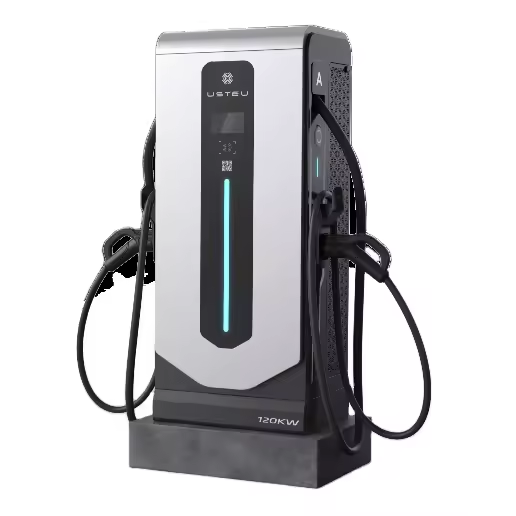

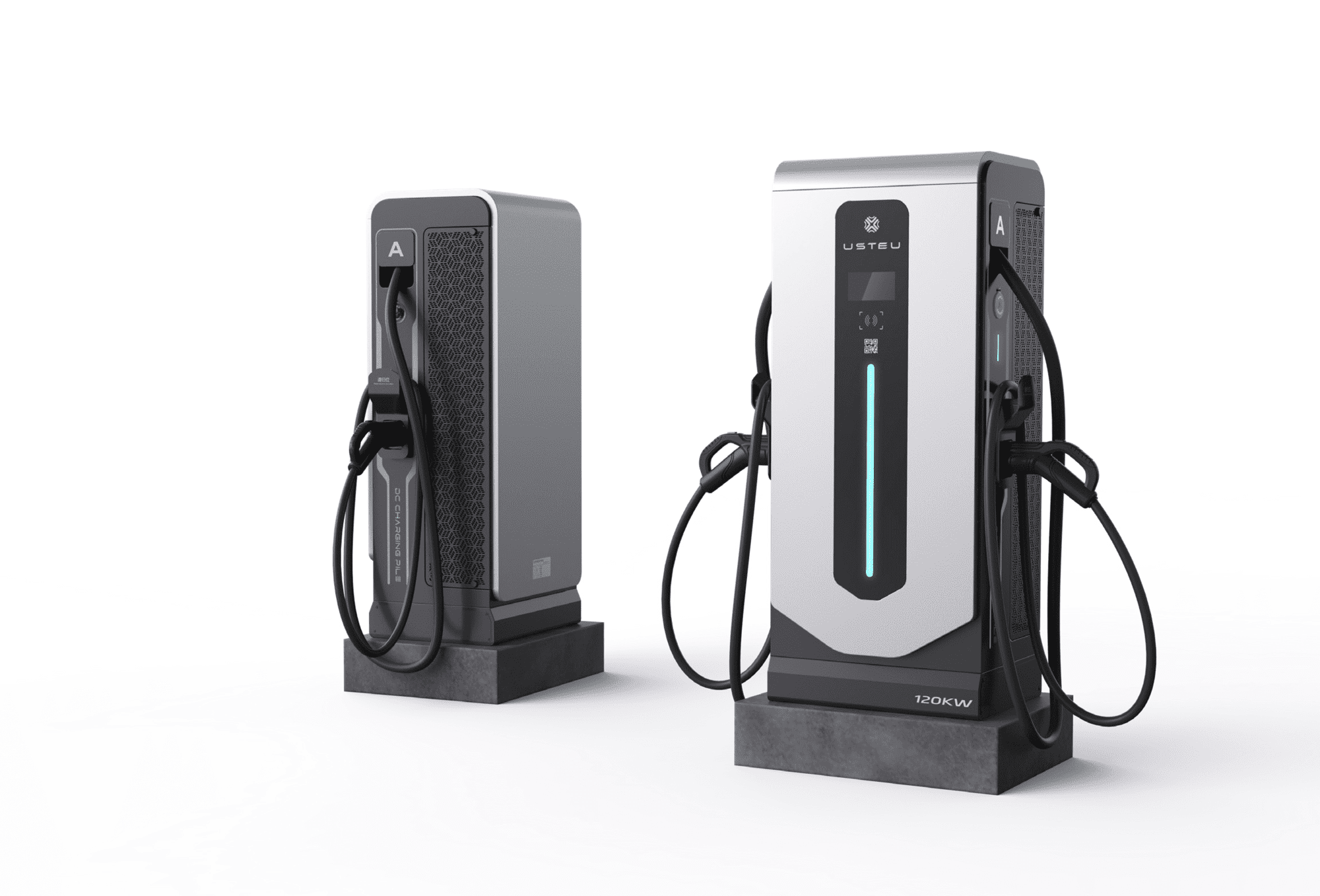

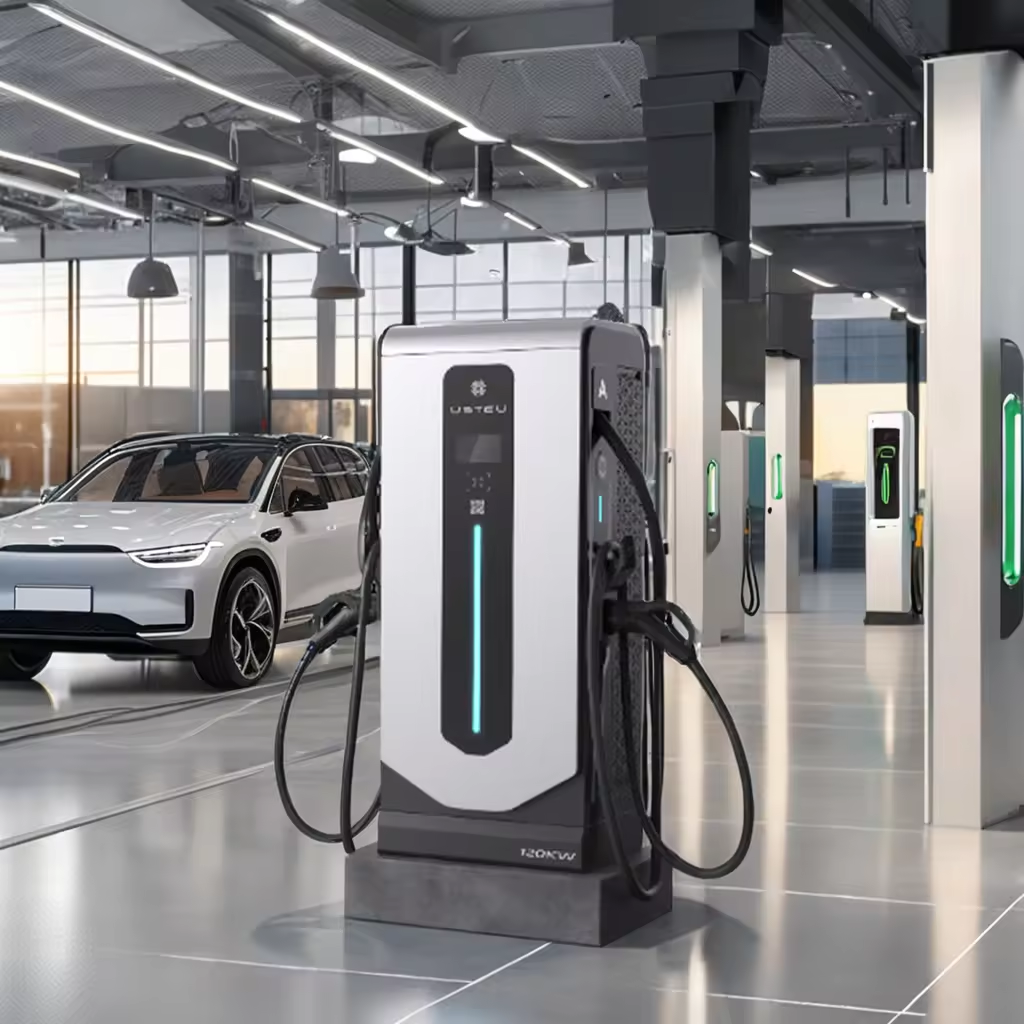

Commercial Rapid DC EV Charging Stations, OCPP1.6, 120kW
Key Specifications / Features
Model no.: DCEVC-20240815-01
Hits: 2
As a leading Commercial DC EV charging station manufacturer from China, we offer advanced rapid charging solutions with cutting-edge technology. Our stations feature the OCPP 1.6 interface for seamless integration, delivering a powerful 120kW output to efficiently charge electric vehicles. Designed with a frequency range of 45-60Hz, our chargers ensure reliable performance under various conditions. For enhanced connectivity, we provide optional Ethernet and 4G communication modules, catering to diverse installation environments. Committed to quality and innovation, we deliver robust and versatile DC charging stations that meet the highest industry standards.
Request a quote
Tags
Detail Information
| Product Item: | Commercial DC EV Rapid Charging Stations |
| Interface Standard: | OCPP1.6 |
| Output Current: | AC |
| Way of Communication: | Ethernet/4G Optional |
| Output Power: | 120kW |
| IP Protection: | IP55 |
| Input Voltage: | 380V±10% |
| Power Factor: | ≧0.99 |
| Rated Output Voltage: | 150-1000V DC |
| Output MaxCurrent of a Single Plug: | 200A |
| Output Constant Power: | 300-1000V DC |
| Rated Frequency: | 45-60Hz |
| Output Efficiency: | 96% |
| Certification: | CE |
| Screen Size: | 7-inch |
| Length of Charging Plug: | 5 Meters * 2 |
| Operating Temperature: | -25°C to +55°C |
| Storage Temperature: | -35°C to +65°C |
