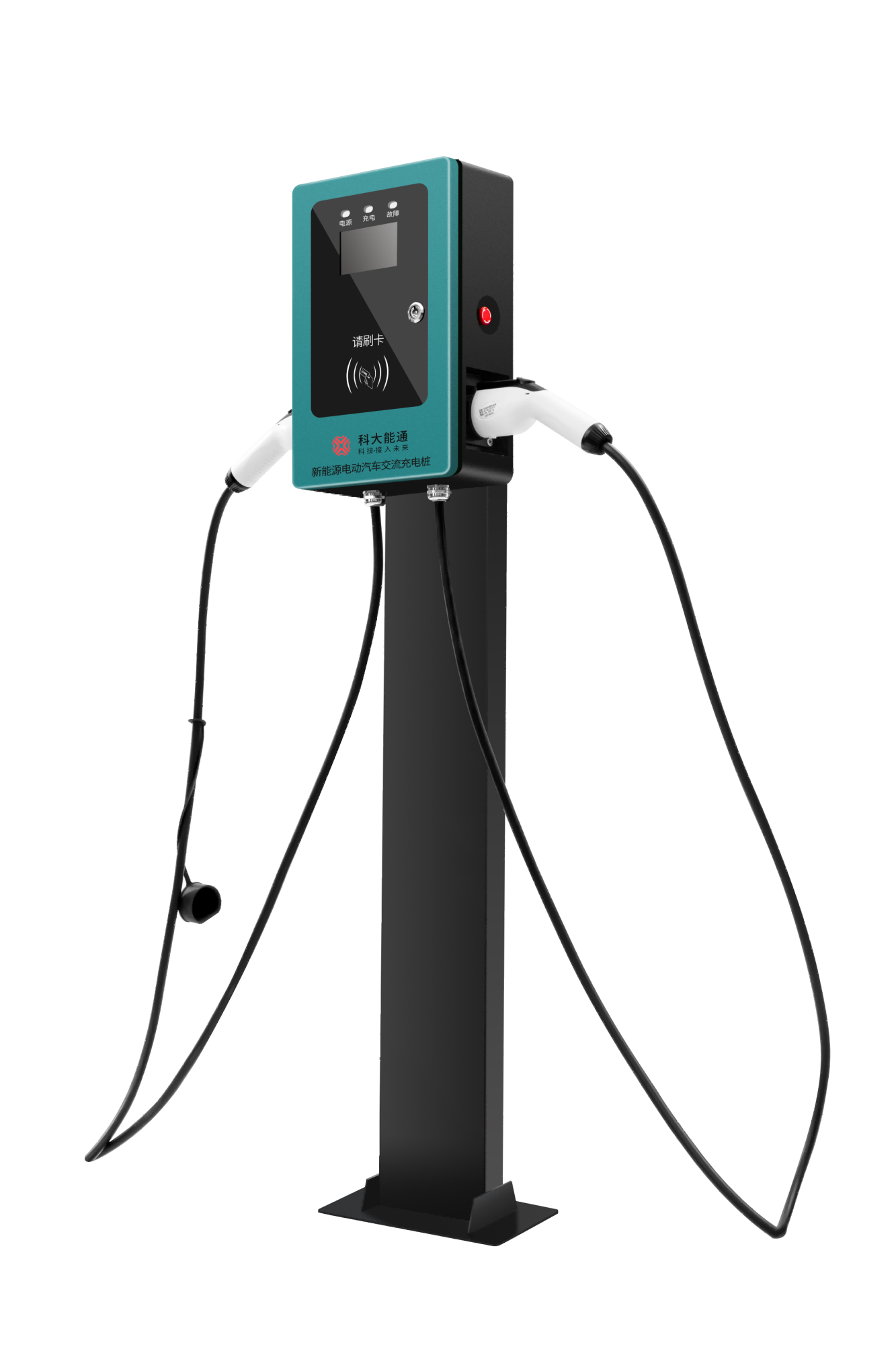

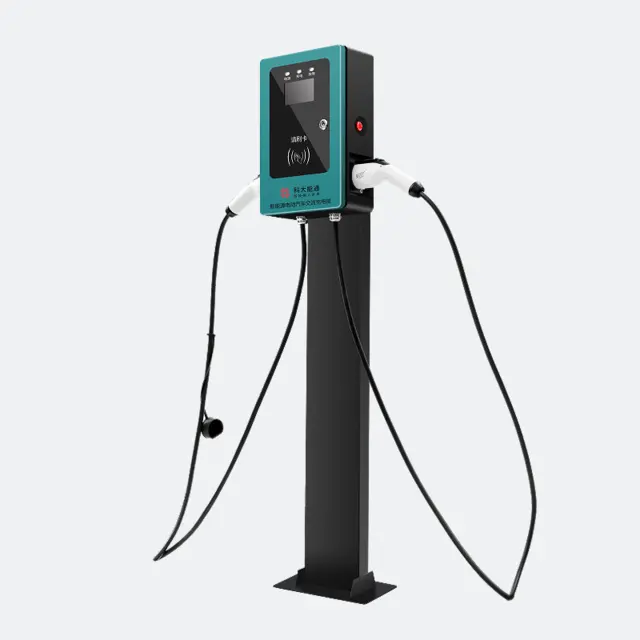

Commercial Dual Connector AC EV Charging Pile
Key Specifications / Features
Model no.: ACEVC-20240913-04
Hits: 6
As a trusted supplier of dual port EV AC charging piles in China, we offer versatile solutions with wall and pole mounting options to suit various installation needs. Supporting both 50Hz and 60Hz frequencies, our chargers feature an anti-UV coating and an IP55 protection rating, ensuring durability in diverse environments. With convenient plug-and-play functionality, along with optional Swipe/NFC and Bluetooth capabilities, users enjoy a seamless charging experience. Built for reliability and ease of use, our charging piles are ideal for residential, commercial, and public EV charging stations.
Request a quote
Tags
Detail Information
Chinese National Standard
| Product Item: | Commercial AC EV Charging Pile |
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Voltage: | 220V AC, 380V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 220V AC, 380V AC |
| Protection Class: | IP55 |
| Charging Interface: | GB/T 20234.2 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Communication Mode: | 4G/Ethernet |
| Dimension (W*H*D): | 400*270*128mm |
| Mounting Type: | Wall, Pole |
European Standard
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Voltage: | 230V AC, 400V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 230V AC, 400V AC |
| Protection Class: | IP55 |
| Charging Interface: | IEC 62196 Type 2 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Dimension (W*H*D): | 400*270*128mm |
| Mounting Type: | Wall, Pole |
American Standard
| Power Specification: | 3.8kW, 7.6kW, 9.6kW, 12kW, 14.4kW, 19.2kW |
| Input Voltage: | 240V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 240V AC |
| Protection Class: | IP55 |
| Charging Interface: | IEC 62196 Type 1 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Dimension (W*H*D): | 400*270*128mm |
| Mounting Type: | Wall, Pole |
