Fast DC EV Charging Station, 100 kWh, LFP, IP54, OCPP 1.6J
Key Specifications / Features
Model no.: DCEVC-20240910-05
Hits: 1

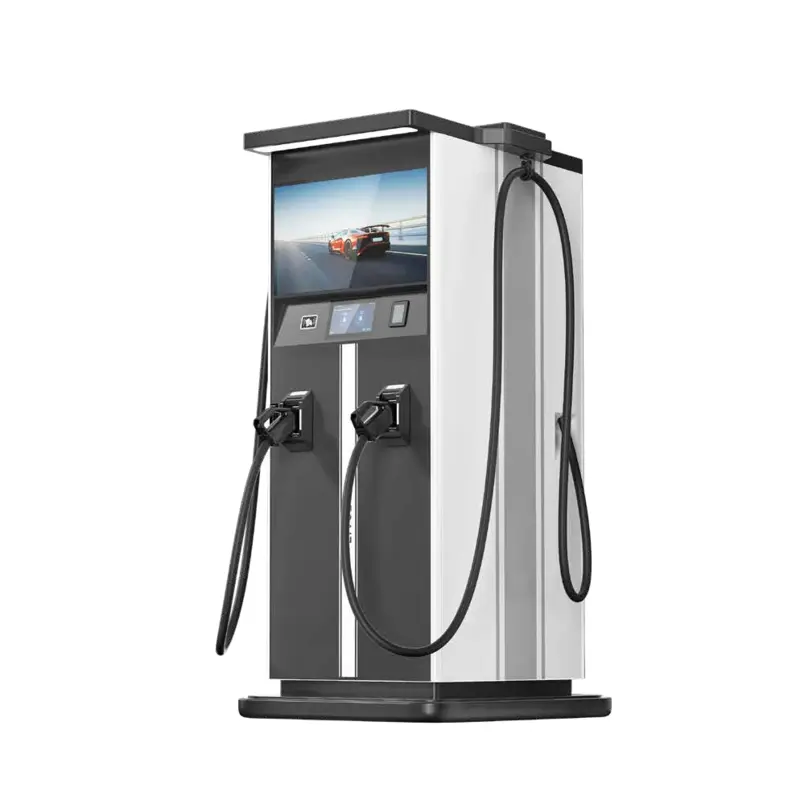

The Traditional Fast DC EV Charger is a dual port DC charger with an integrated energy storage system, offering peak charging power of up to 120kW. With just a 40kW input and a 100kWh battery capacity, it delivers powerful charging without overloading the grid. The BESS120 features Plug & Play functionality, allowing seamless connection to the existing grid without the need for expensive construction or complex upgrades. This versatile charger can be set up wherever it's needed, providing reliable EV charging without requiring a grid upgrade.
Request a quote
Tags
Detail Information
| Product Items | DC EV Charger |
| Energy Storage | |
| Battery Capacity: | 100 kWh |
| Energy Chemistry: | LFP |
| Max. recharge Power: | 40 kW |
| Battery Efficiency: | ≥94.5% in normal situations |
| Output/charge point | |
| Supported Connector Types: | CCS1, CCS2, CHAdeMO, GB/T |
| Connectors: | 2 |
| Charging Power (DC): | DC Max. 120 kW intelligent distribution |
| Voltage: | 200 - 1000V DC |
| Output Efficiency: | ≥95% (20-100% Load) |
| Cable: | 250A, 5m (7m Optional) |
| Input/Power Connection | |
| Voltage: | 3 Phase 400V AC ± 15% |
| Power (AC): | ≤40 kW |
| Frequency: | 50 / 60 Hz ± 1% |
| Max Current: | 63 A |
| Environmental Specification | |
| Installation Location: | Outdoor |
| Protection Rating: | IP54 |
| Operating Temperature: | -20°C - 50°C(over 45°C derating) |
| Noise Emission: | ≤ 75 dB |
| User Interface & Connectivity | |
| Connectivity: | 4G / Ethernet |
| Communications: | OCPP 1.6J, support update to OCPP 2.0.1 |
| User Interface: | 10.1 inch Touch screen, Charging LED Indicators, Customizable Advertising Screens(＞20 inch) |
| Credit Card Reader: | Standard |
| Payment/authorization: | RFID (ISO 14443 A/B), APP, Contactless NFC Customized |
| Other Features | |
| Dimensions(h*w*d): | 2,130 x 900 x 1,200 mm |
| Weight: | 1,450 kg |
| Cooling Method: | Force Fan Cooling |
| Standard Warranty: | 3 years, extend + 1 year / + 2 years |
| Firmware Upgrade: | Local (USB) / OTA |
| Standard: | CE & IEC &UN38.3 expected complete 2024 |
| Protection | |
| Multiple Protection: | Overvoltage Protection, Undervoltage Protection, Overcurrent Protection, Over Temperature Protection, Grounding Protection,Surge Protection, Short Circuit Protection,Fault Self-check, In sulation Detection and Other Multiple Protection Functions. |
