120kW DC EV Fast Charging Station, OCPP1.6, 200A, Two Plugs
Key Specifications / Features
Model No.: DCEVC-20240815-09
Hits: 22
As a premier manufacturer of floor-mounted DC EV chargers, we offer a high-performance solution featuring dual guns for versatile charging. Our charger delivers a robust 120kW output power with a 200A output current, ensuring efficient and rapid charging. Equipped with the OCPP1.6 interface, it provides seamless integration and connectivity. The DC output voltage ranges from 150-1000V, and it operates with a 380V±10% input voltage. Engineered for durability and high-demand usage, this charger is ideal for commercial applications, providing reliable and efficient electric vehicle charging solutions.
Request a quote
Tags
Detail Information

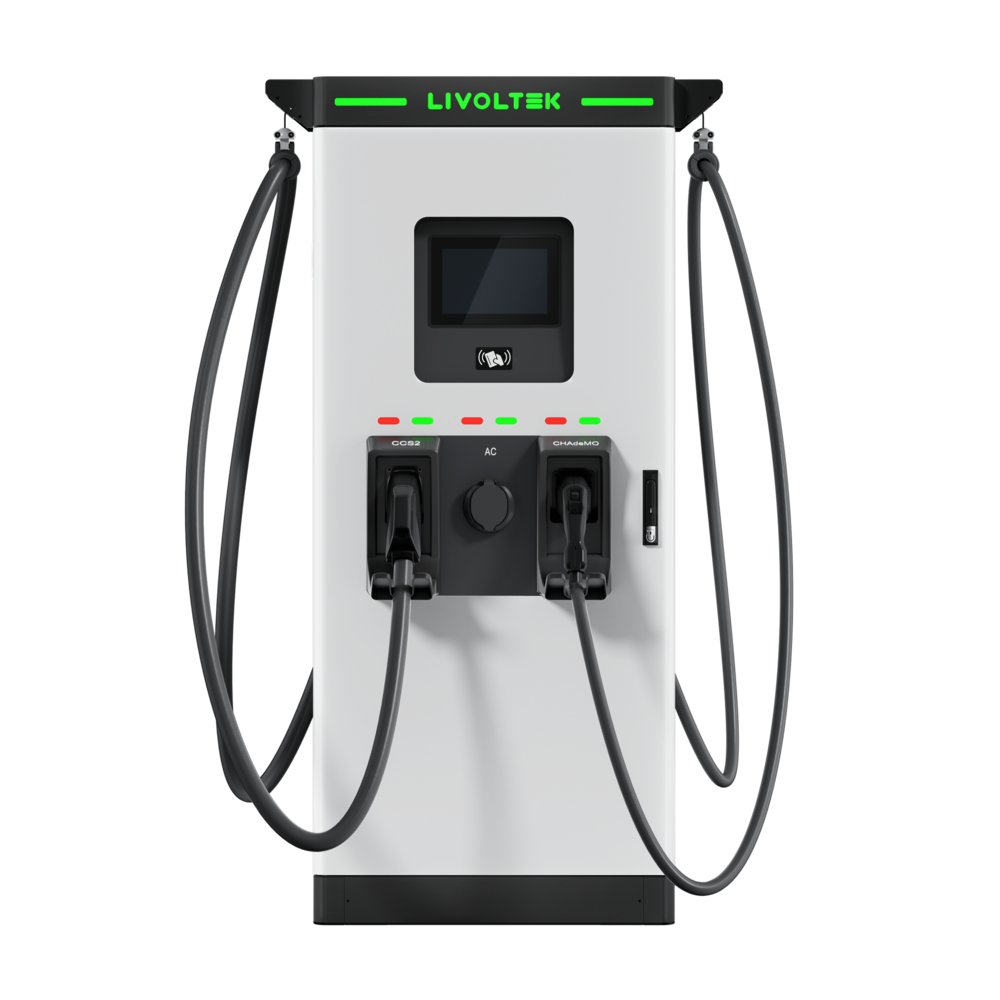

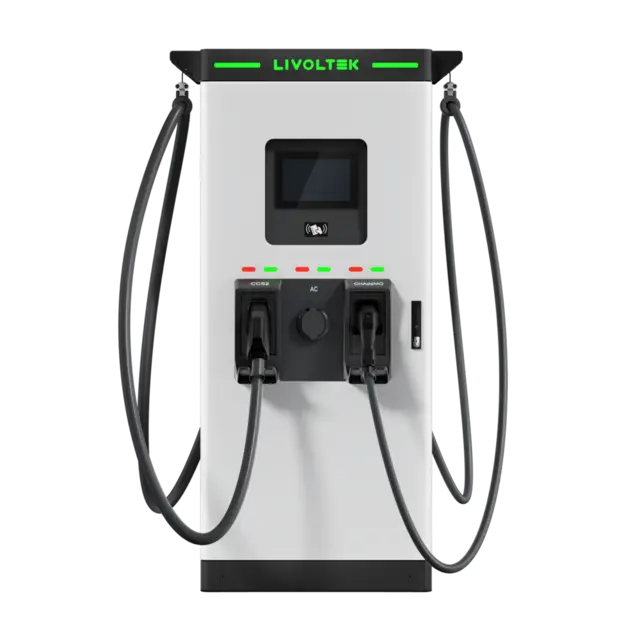

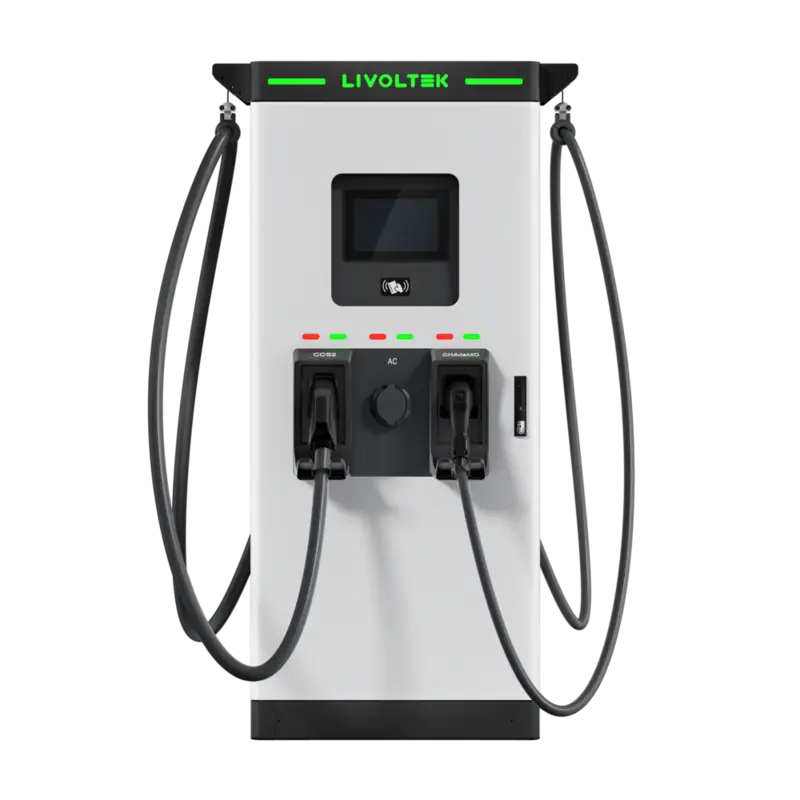

Floor-Mounted DC EV Charger Station, 120kW, 200A, OCPP1.6
| Product Item: | 200A Floor-Mounted DC EV Charger |
| Interface Standard: | OCPP1.6 |
| Output Power: | 120kW |
| Rated Input Voltage: | 380V±10% |
| Rated Output Voltage: | 150-1000VDC |
| IP Degree: | IP55 |
| Output Max Current of a Single plug: | 200A |
| Output Constant Power: | 300-1000VDC |
| Rated Frequency: | 45-60Hz |
| Output Efficiency: | 96% |
| Screen Size: | 7-inch |
| Way of Communication: | Ethernet/4G Optional |
| Length of Charging Plug: | 5m*2 |
| Size(H*W*D): | 1800*730*514mm |
| Cooling: | Force Fan Cooling |
| Operating Temperature: | -25°C to +55°C |
| Storage Temperature: | -35°C to +65°C |
| Multiple Protection: | With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection. |
