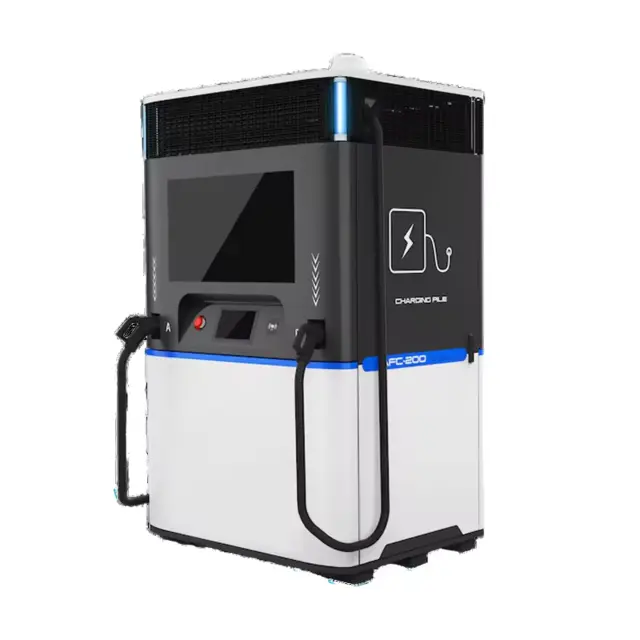

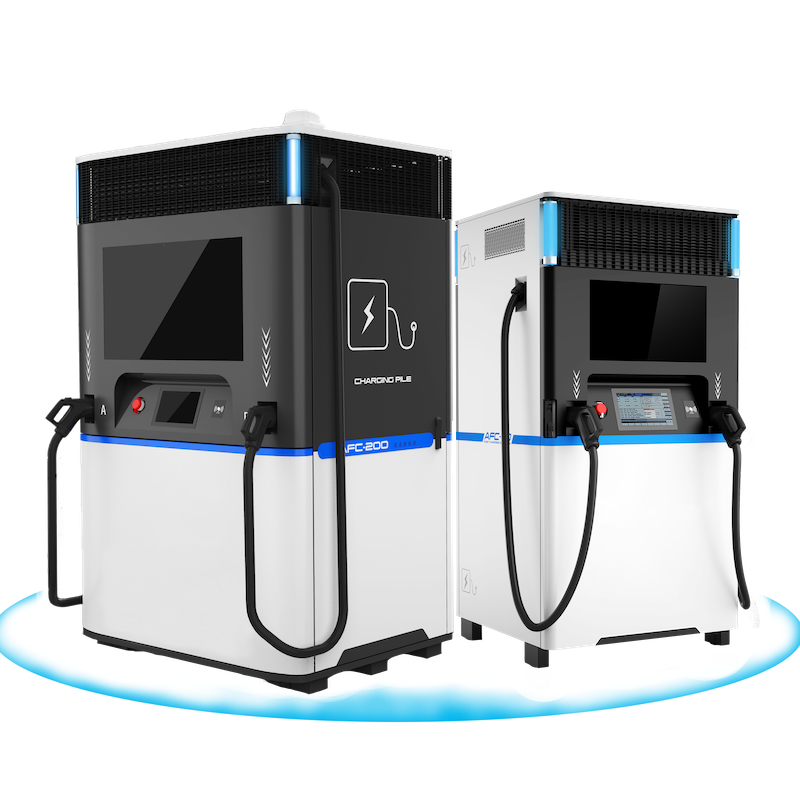

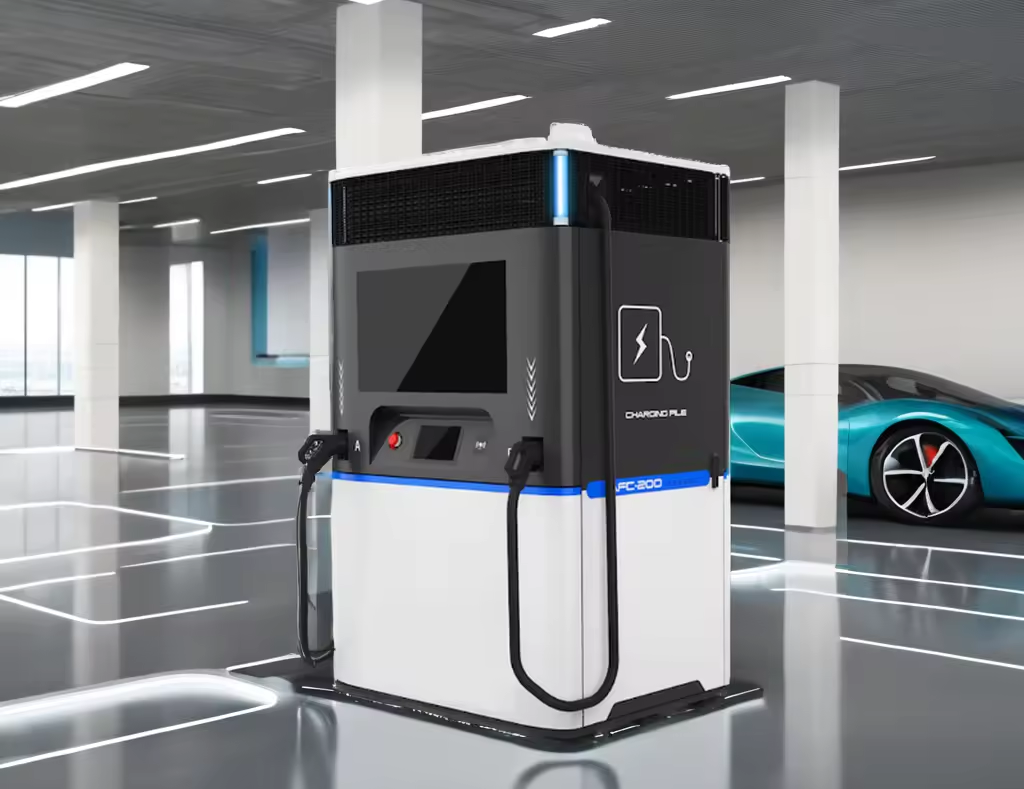

Battery-integrated DC EV Charger, CCS2, 204kW, 193kWh, IP54
Key Specifications / Features
Model No.: DCEVC-20240815-10
Hits: 64
As a leading supplier of battery-integrated DC EV chargers from China, we offer a cutting-edge solution with advanced features. Our charger boasts a powerful 204kW output and incorporates liquid cooling for efficient thermal management. Equipped with a CCS2 interface, it supports a flexible power range from 20kW to 100kW. The integrated 193kWh battery ensures extended operation, while the 220V/380V compatibility and IP54 protection provide durability and versatility. Ideal for high-demand environments, this charger combines performance and reliability to meet the needs of modern electric vehicle charging infrastructure.
Request a quote
Tags
Detail Information
204kW Battery-integrated DC EV Charger, 193kWh, CCS2 Interface Standard
| Product Item | Battery-integrated DC EV Charger |
| DC-side Parameters | |
| Cell Type | Lithium Iron Phosphate |
| Cell Capacity | 105Ah |
| Cycly Life | ﹥3,500 times @80% |
| Battery Capacity | 193kWh |
| Fire Protection System (optional) | Automatic Perfluorohexanone fire extinguishing system |
| AC-side Parameters | |
| Rated Power | 20kW-100kW |
| Rated Voltage | 380V AC |
| Voltage Range | 285-475V AC |
| Power Factor Range | ﹥0.98 |
| THD(total harmonic distortion) | ﹤3% |
| Rated Frequency | 50Hz |
| System Parameters | |
| Altitude | ≦2000 |
| Storage Temperature | -40°C to +70°C |
| Operating Temperature | -25°C to +50°C |
| Operating Humidity | 5% - 95% RH, no condensation |
| Cooling Mode | Liquid Cooling |
| Communication Interface | LAN/RS485 |
| IP Protection | IP54 |
| EMC Lever | CLASS A |
| Noise Control | ﹤55dB |
| Certification | CE/UL/CQC |
| Dimension | 1 3*1.1*1.98 m |
| Weight | 2600 KG |
| Interface Standard | CCS2 |
| Multiple Protection | With Over Voltage Protection, Under Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection. |
