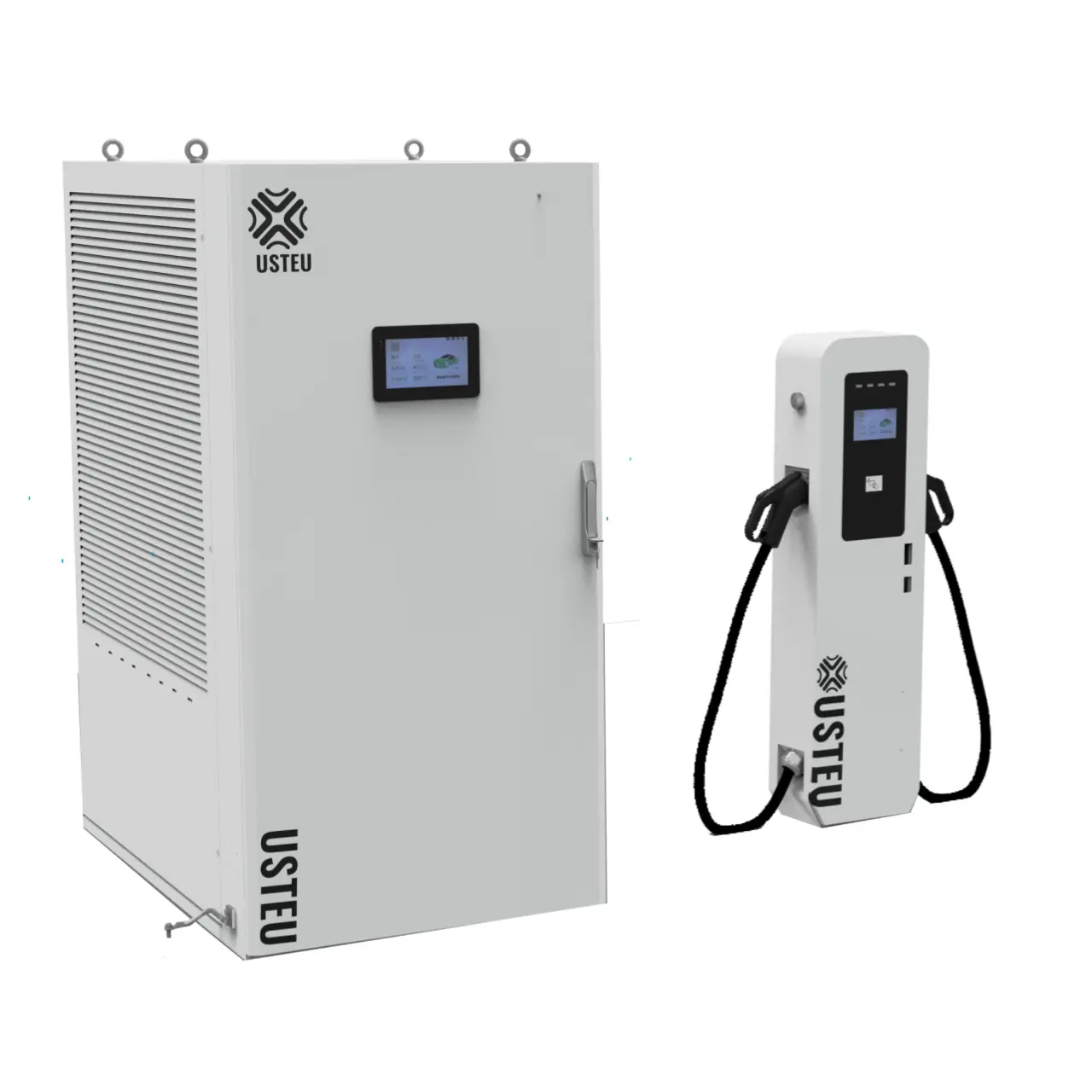

Split DC EV Charger, 480kW, 380V AC, 1000V DC Max, IP55
Key Specifications / Features
Model no.: DCEVC-20240919-02
Hits: 16
We offer high-performance split DC charging stacks with IP55 protection, ensuring durability in various conditions. These chargers deliver up to 480kW of power, with a maximum input voltage of 380V AC and a maximum output voltage of 1000V DC. Designed for efficiency, the stack supports a maximum output current of 480A and features a 1-in-8-out configuration, making it ideal for high-demand applications. Built for reliability and versatility, our charging stacks are perfect for large-scale EV charging infrastructure. As a leading charging stack manufacturer in China, we are committed to delivering innovative and high-quality solutions.
Request a quote
Tags
Detail Information
| Product Item: | Split DC EV Charger |
| Rated Power: | 480kW |
| Charging Terminals: | 4 |
| Charging Plug: | 8 |
| Power Distribution Method: | 1 In 8 Out |
| Charging Operation Mode: | Swipe, Touch Screen, APP |
| Rated Input Voltage: | 380V AC |
| Rated Input Current: | ≤760A |
| Rated Output Voltage: | 1000V DC Max |
| Rated Output Current: | 480A Max |
| Ambient Temperature: | -30°C - 60°C |
| Low Voltage Auxiliary Power Supply: | 12V DC |
| Voltage Regulation Accuracy: | ≤±0.5% |
| Stabilization Accuracy: | ≤±1% |
| Peak Efficiency: | ≥95% |
| Power Factor: | ≥0.99% |
| Display Media: | Main cabinet 10-inch screen, charging terminal 7-inch screen |
| Dielectric Strength: | ≥2500V AC |
| Insulation: | ≥10MΩ |
| Communication Interface: | NIC, 4G |
| Altitude: | ≤2000m |
| Mainframe Cabinet Dimensions(W*H*D): | 1830*1735*1000mm |
| Charging Terminal Dimensions(W*H*D): | 1400*220*450mm |
| Features: | |
| 1. The central control unit utilizes an automotive-grade microcomputer chip. | |
| 2. Incorporates energy bus-type, fully intelligent power distribution technology. | |
| 3. Features intelligent flexible charging technology for optimal performance. | |
| 4. Coated with nano-paint, providing excellent durability and rust resistance. | |
