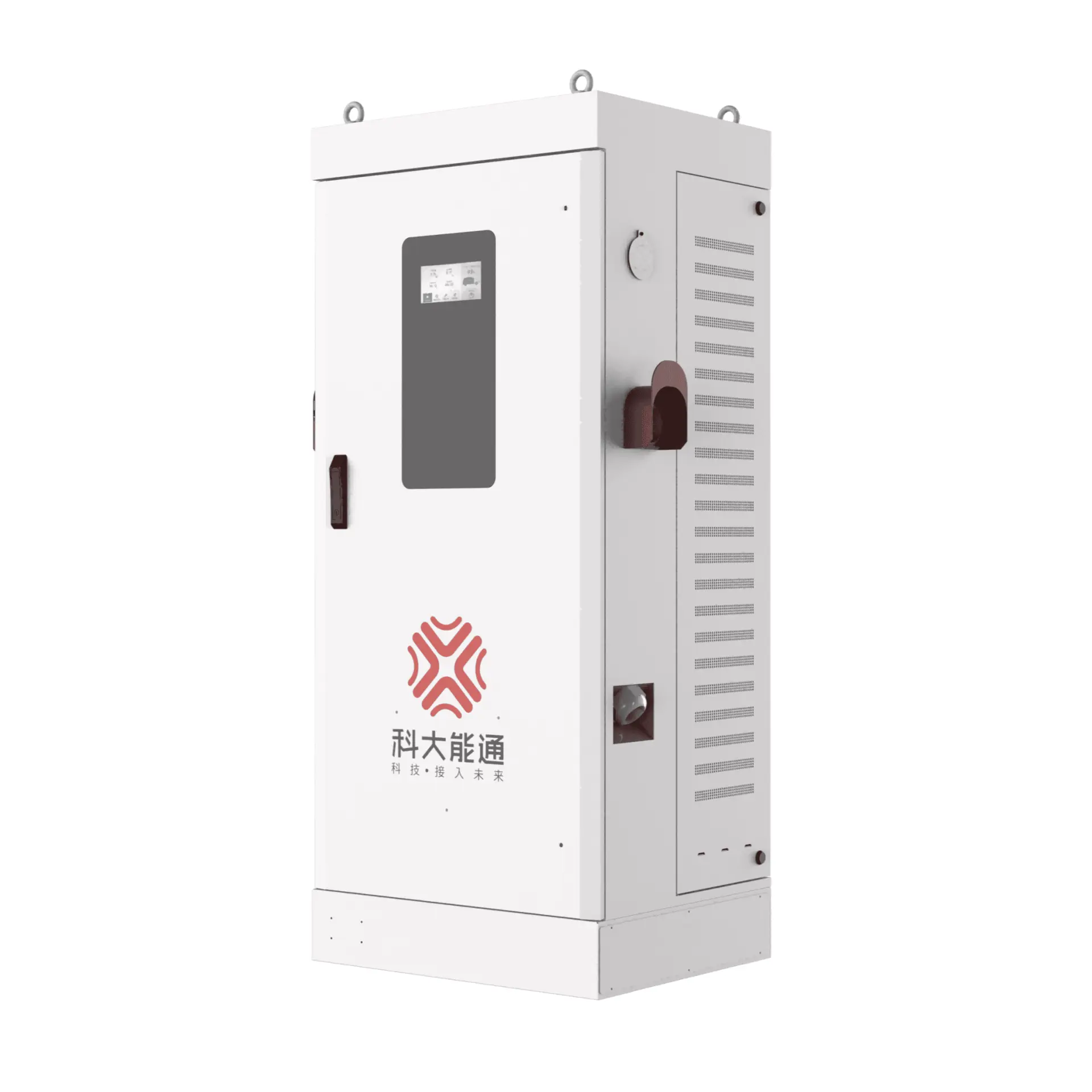

Integrated DC Charging Pile, IP55, 20kW, 30kW, 40kW, 60kW
Key Specifications / Features
Model no.: DCEVC-20240919-01
Hits: 17
This EV charger features a robust metal shell with IP55 protection, ensuring durability and safety in various environments. Equipped with OTA remote upgrade functionality, it allows seamless software updates for improved performance. Charging options include swipe card, NFC, plug-and-play, app scanning, and remote reservation, providing flexibility and convenience. The charger’s advanced intelligent control system enables adaptive charging for different vehicle types, including passenger cars, commercial vehicles, and sanitation trucks. Additionally, it offers comprehensive charge protection, safeguarding against emergencies, overheating, over-voltage, short circuits, and more for reliable and safe operation.
Request a quote
Tags
Detail Information
| Chinese Standard | |
| Product Item： | Integrated DC Charging Pile |
| Power Specification: | 20kW, 30kW, 40kW, 60kW |
| Input Voltage: | 380V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | DC 50V-1000V |
| Protection Class: | IP55 |
| Charging Interface: | GB/T 20234.3 |
| Operating Temperature: | -30°C - 60°C |
| Ambient Humidity: | RH5%-95% |
| Altitude: | ≤2000m |
| Startup Mode: | Plug and Play, Swipe, Scan, NFC, Bluetooth |
| Communication Mode: | GB/T27930 |
| Dimension (W*H*D): | 650*393*145mm |
| European Standard | |
| Power Specification: | 20kW, 30kW, 40kW, 60kW |
| Input Voltage: | 400V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | DC 50V-1000V |
| Protection Class: | IP55 |
| Charging Interface: | CCS2 |
| Operating Temperature: | -30°C to +60°C |
| Ambient Humidity: | RH5%-95% |
| Altitude: | ≤2000m |
| Startup Mode: | Plug and Play, Swipe, Scan, NFC, Bluetooth |
| Communication Mode: | DIN SPEC 70121, ISO 15118 |
| Dimension (W*H*D): | 650*393*145mm |
| American Standard | |
| Power Specification: | 20kW, 30kW, 40kW, 60kW |
| Input Voltage: | 480V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | DC 50V-1000V |
| Protection Class: | IP55 |
| Charging Interface: | CCS1 |
| Operating Temperature: | -30°C - 60°C |
| Ambient Humidity: | RH5%-95% |
| Altitude: | ≤2000m |
| Startup Mode: | Plug and Play, Swipe, Scan, NFC, Bluetooth |
| Communication Mode: | IS0 15118 |
| Dimension (W*H*D): | 650*393*145mm |
| Japanese Standard | |
| Power Specification: | 30kW, 60kW |
| Input Voltage: | 400V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | DC 50V-1000V |
| Protection Class: | IP55 |
| Charging Interface: | CHAdeMO |
| Operating Temperature: | -30°C - 60°C |
| Ambient Humidity: | RH5%-95% |
| Altitude: | ≤2000m |
| Startup Mode: | Plug and Play, Swipe, Scan, NFC, Bluetooth |
| Communication Mode: | CHAdeMO |
| Dimension (W*H*D): | 650*393*145mm |
Features:
1. Equipped with OTA remote upgrade capability.
2. Constructed with a reinforced metal shell, offering IP55-level protection.
3. Supports multiple charging options, including card swipe, NFC induction, plug-and-play, app scanning, and remote reservation.
4. Utilizes advanced flexible intelligent control technology for adaptive charging, compatible with various vehicle types such as passenger cars, commercial vehicles, and sanitation trucks.
5. Charge Protection: Includes emergency stop, over-temperature, leakage, over-voltage, under-voltage, short-circuit, grounding, overload, and thunderstorm protection.
