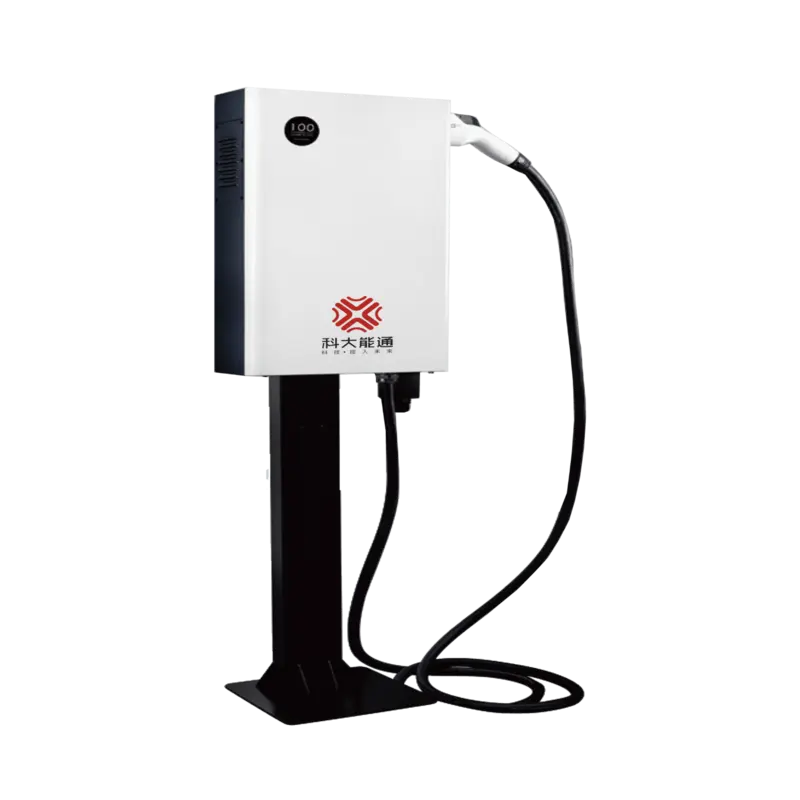

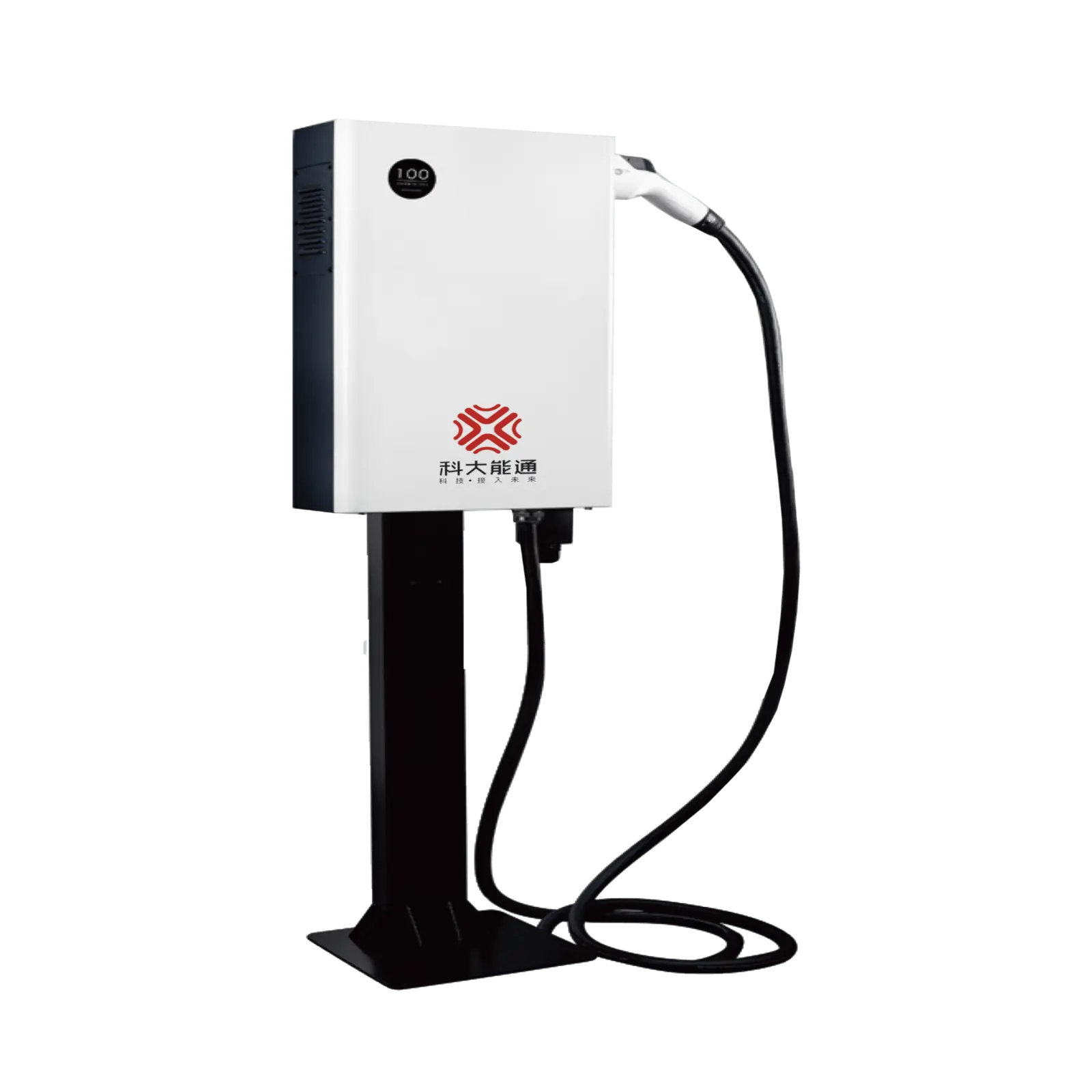

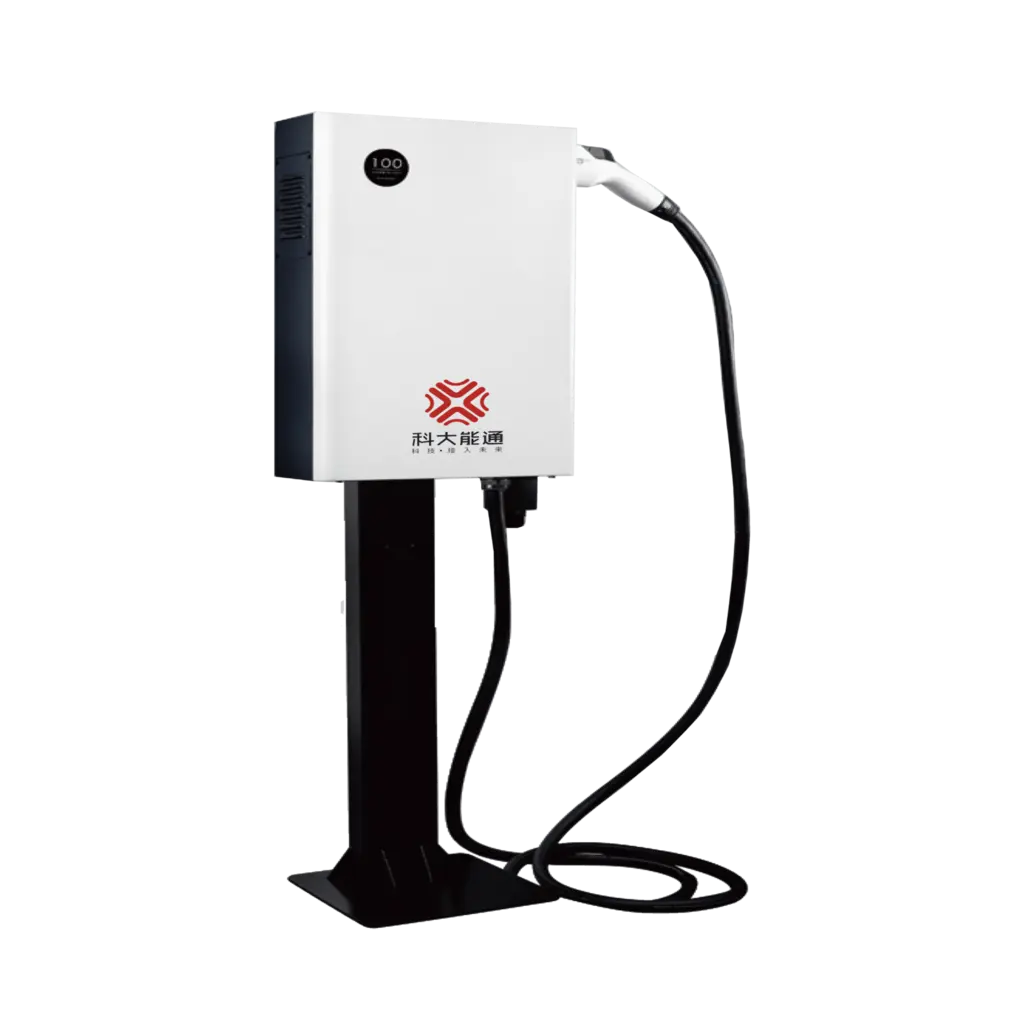

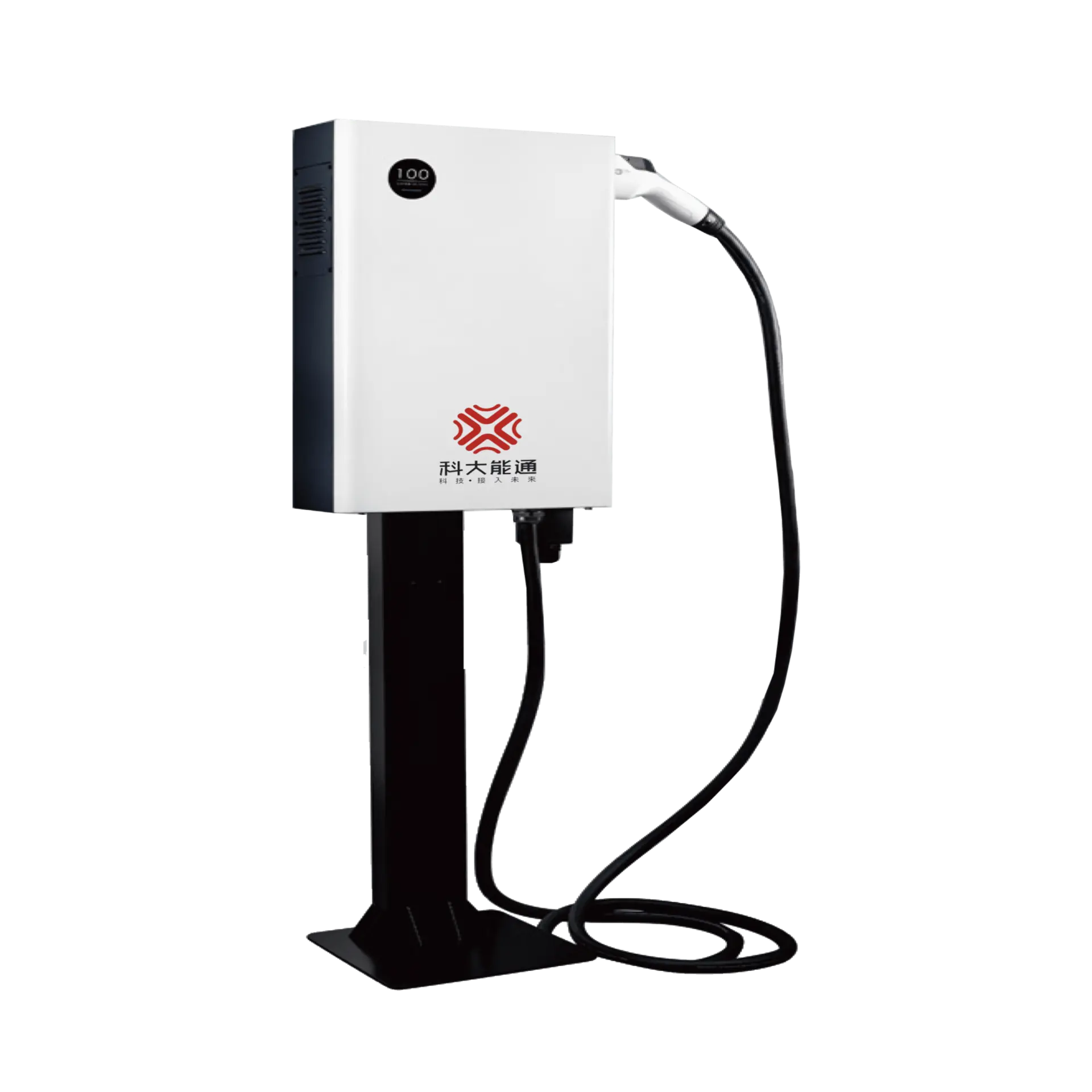

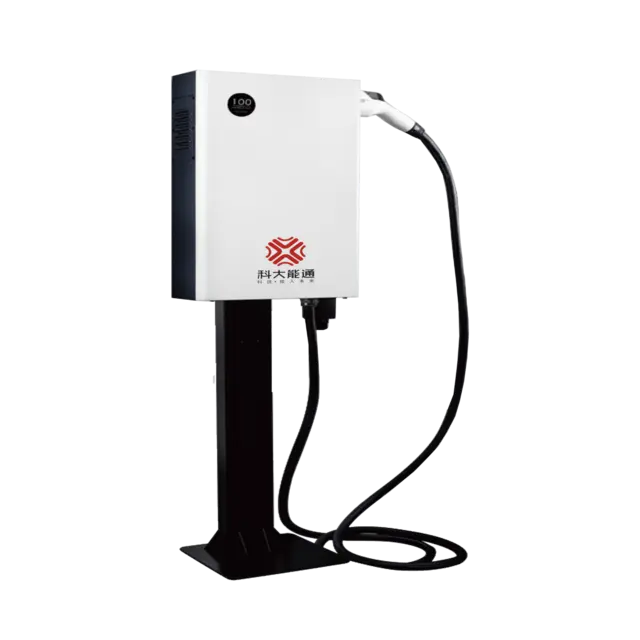

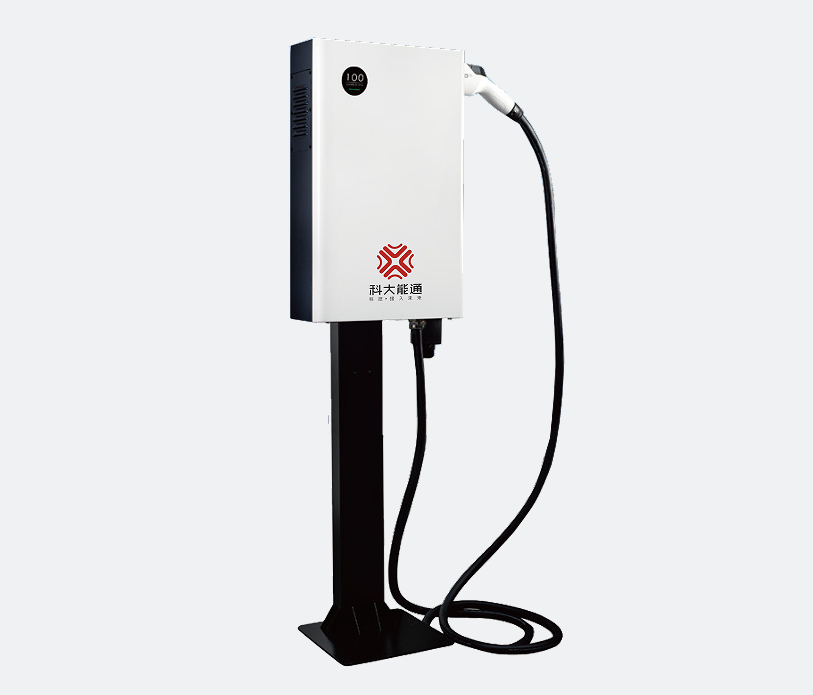

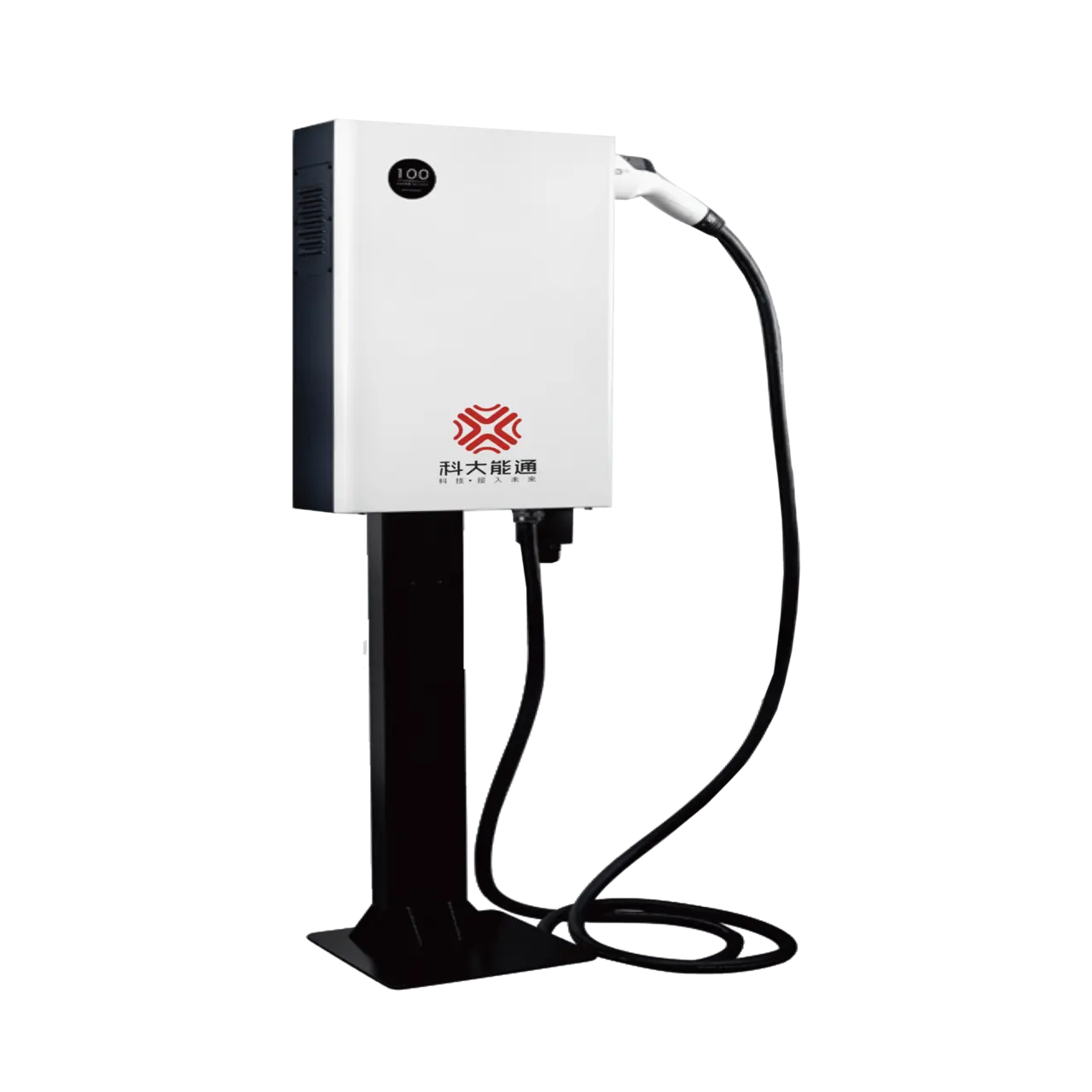

Dual DC EV Charger, 21kW, 380V AC, IP55, Wall Mount, Pole
Key Specifications / Features
Model No.: DCEVC-20240913-07
Hits: 66
As a leading supplier of 21kW dual DC EV chargers in China, we offer chargers with 380V AC input and a wide DC output range of 200V to 1000V, supporting 50-60Hz frequency. Built with a thickened metal shell, the charger has an IP55 protection rating, ensuring reliable performance in various conditions. It features multiple charging options, including plug-and-play, swipe card, NFC, app scanning, and remote reservation for user convenience. Additionally, the charger is equipped with essential safety protections such as short-circuit, over-current, leakage, and lightning protection, ensuring safe and efficient operation.
Request a quote
Tags
Detail Information
| Product Item: | DC EV Charger |
| Power Specification: | 21kW |
| Output Voltage: | DC 200V - 1000V |
| Input Voltage: | 380V AC |
| Operating Temperature: | -30°C to 60°C |
| IP Rating: | IP55 |
| Input Frequency: | 50Hz, 60Hz |
| Altitude: | ≤2000m |
| Charging Interface: | GB/T20234.3 |
| Communication Protocol: | GB/T27930 |
| Ambient Humidity: | RH5% - 95% |
| Communication Mode: | 4G (optional) |
| Mounting Method: | Wall Mount, Pole |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Dimension (W*H*D): | 650*393*145mm |
