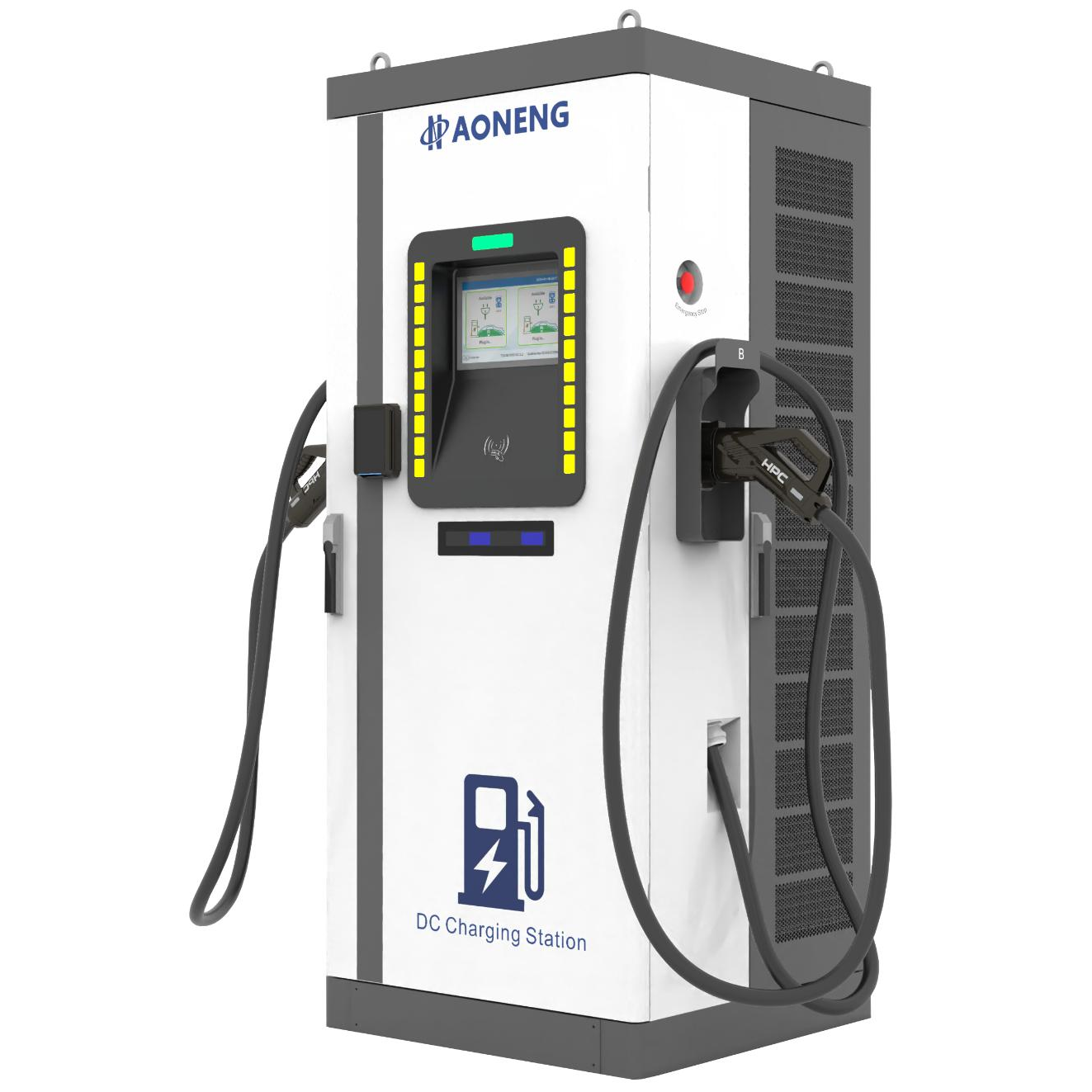

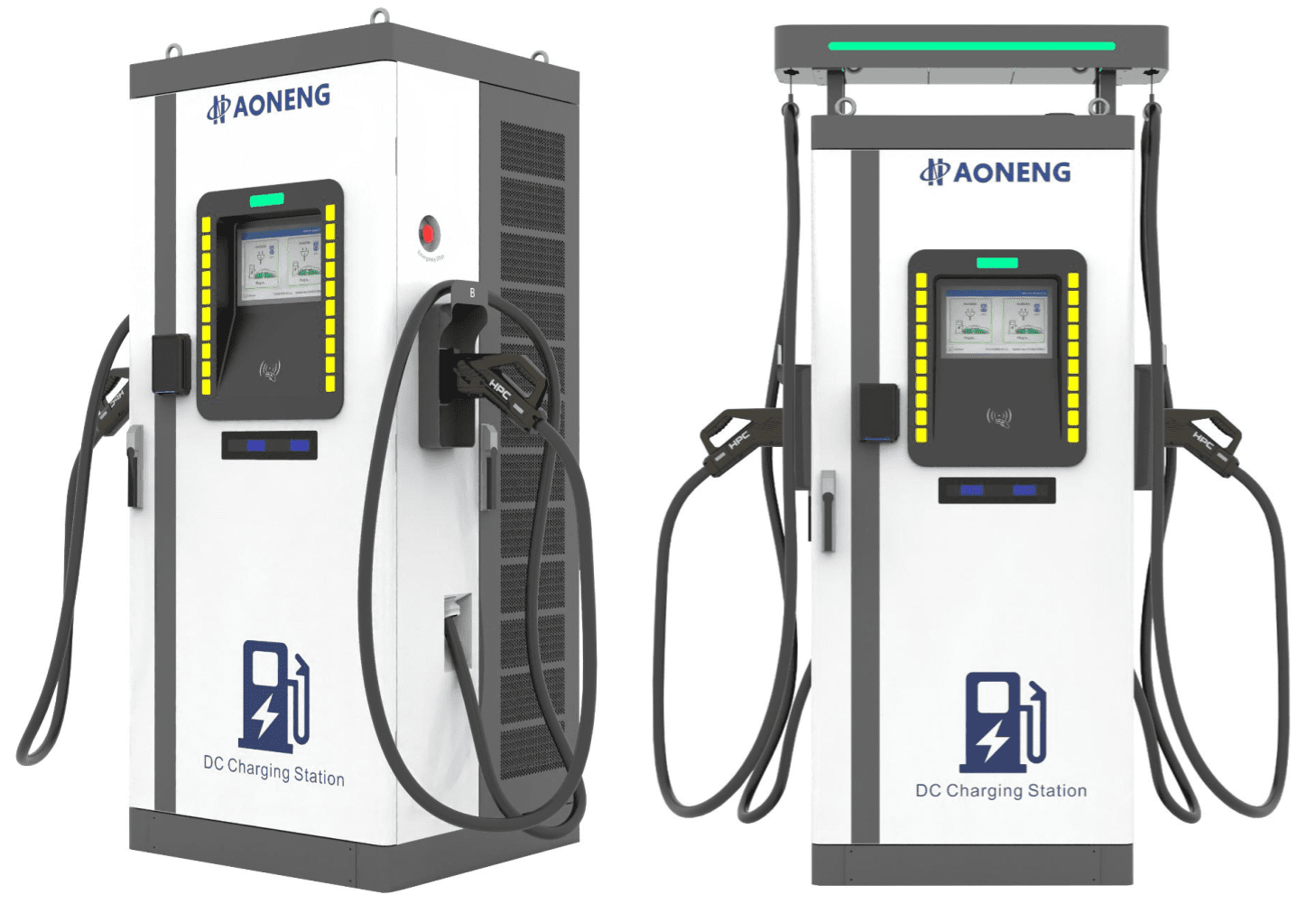

Ultra-Fast DC EV Charger, CCS COMBO 2, 50Hz, 60Hz, IP55
Key Specifications / Features
Model no.: DC-EVC-20240909-03
Hits: 1
We manufacture ultra-fast DC EV charging stations designed for high performance and reliability. Our chargers come with an IP55 rating for durability, CCS COMBO 2 compatibility, and operate at 50/60 Hz frequency with a 3P+N+PE voltage configuration. With a rated power range of 120KW to 360KW, these stations ensure rapid, efficient charging for electric vehicles. Built to withstand various environments, our charging solutions provide fast, dependable power to meet the increasing demand for EV infrastructure. As a leading EV charging station manufacturer in China, we are committed to delivering cutting-edge solutions.
Request a quote
Tags
Detail Information
Technical Specifications:
| Product Item | Ultra-Fast DC EV Charger |
| Input | |
| Model No | ANDCE 1 - 360 HP |
| Voltage | 3P+N+PE (L1, L2, L3, N, PE) |
| Frequency | 50Hz/60 Hz |
| Power Factor | ≥ 0.99 |
| THDi | ≤ 5% |
| Output | |||||
| Rated Power: | 120KW | 180KW | 240KW | 300KW | 360KW |
| Output Voltage: | 200-1000V DC | 200-1000V DC | 200-1000V DC | 200-1000V DC | 200-1000V DC |
| Output Current Max |
Single connector： 250 A @below 480V Dual connector： 2x200 A @below 300V |
Single connector： 250 A @below 720V Dual connector： 2x250 A @below 360V |
Single connector： 250 A @below 960V Dual connector： 2x250 A @below 480V (Optional 375 A) |
Single connector： 375 A @below 800V Dual connector： 2x375 A @below 400V |
Single connector： 375 A @below 960V Dual connector： 2x375 A @below 480V |
| Rated Input Current | 185A | 277A | 373A | 466A | 559A |
| Input cable size (mm²) | 3x95+2x50 | 3x150+2x70 | 3x185+2x95 | 3x240+2x150 | 3x300+2x150 |
| HMI | |
| Human-computer Interaction | 10.1-inch LCD Touchscreen |
| Charging Method | QR Code, RFID, NFC, Credit Card, Plug in and charge (EVCCID) |
| Others | |
| Noise | ≤ 65 dB |
| Cooling Method | Forced air-cooled |
| IP Protection | IP55 |
| Dimension Charger | 800(W)*800(D)*1900(H)mm(WXDXH) |
| Cable Management Device | 1000(W)*280(D)*250(H)mm(WXDXH) |
| Efficiency | ≥ 96% |
| Connector: | CCS COMBO 2 |
| Cable Length: | 4.5 meters, others as required |
| Optional Features: | |
| 1. Cable Management Device | |
| 2. Credit Card Payment System | |
| 3. PTB Meter | |
