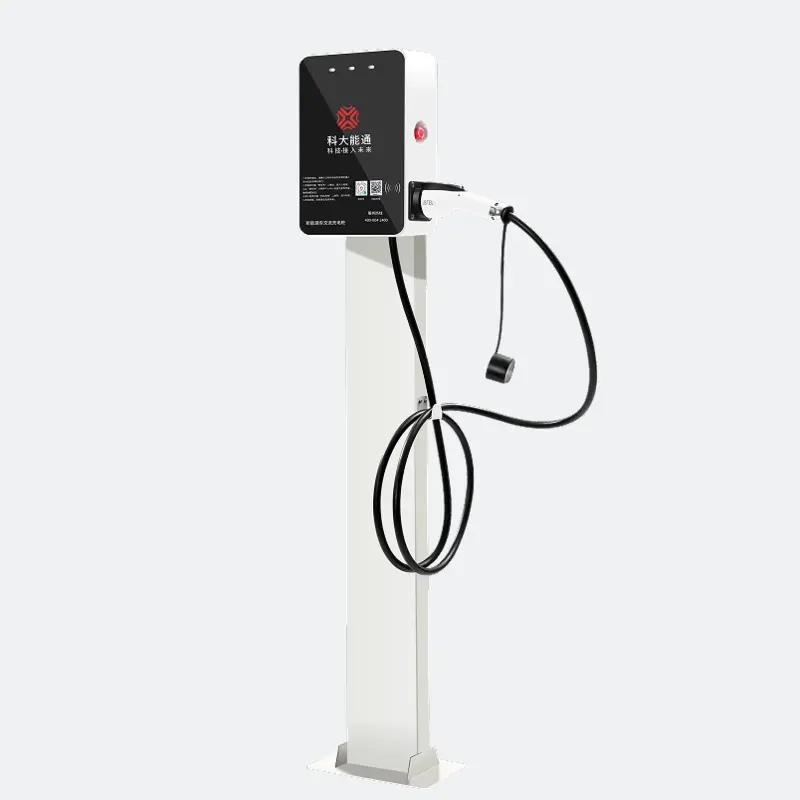

Operational AC EV Charging Pile, 230V, 240V, 400V, 50-60 Hz
Key Specifications / Features
Model no.: ACEVC-20240913-03
Hits: 22
As a leading manufacturer of operational AC charging piles in China, we provide high-quality chargers with IP55 protection, ensuring reliable performance in various conditions. Compatible with IEC 62196 Type 1 and Type 2 connectors, our chargers support both 50Hz and 60Hz frequencies, making them versatile for different electrical systems. They are equipped with OTA remote upgrade functionality for seamless updates and enhanced user experience. Designed for durability and efficiency, these charging piles deliver optimal performance for long-term use in both residential and commercial applications.
Request a quote
Tags
Detail Information
China National Standard
| Product Item: | AC EV Charging Pile |
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Voltage: | 220V AC, 380V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 220V AC, 380V AC |
| Protection Class: | IP55 |
| Charging Interface: | GB/T 20234.2 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Communication Mode: | 4G/Ethernet |
| Dimension (W*H*D): | 348*220*105mm |
| Mounting Type: | Wall, Pole |
European Standard
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Voltage: | 230V AC, 400V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 230V AC, 400V AC |
| Protection Class: | IP55 |
| Charging Interface: | IEC 62196 Type 2 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Dimension (W*H*D): | 350*238*105mm |
| Mounting Type: | Wall, Pole |
American Standard
| Power Specification: | 3.8kW, 7.6kW, 9.6kW, 12kW, 14.4kW, 19.2kW |
| Input Voltage: | 240V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 240V AC |
| Protection Class: | IP55 |
| Charging Interface: | IEC 62196 Type 1 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Dimension (W*H*D): | 350*238*105mm |
| Mounting Type: | Wall, Pole |
