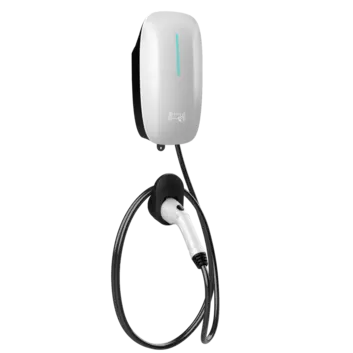

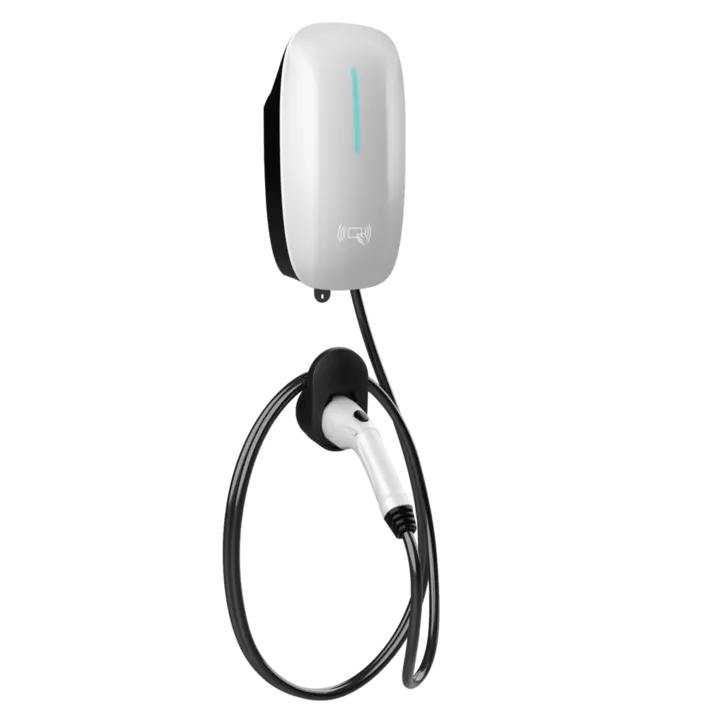

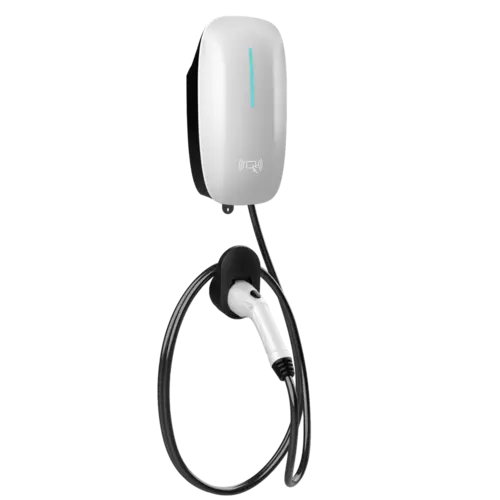

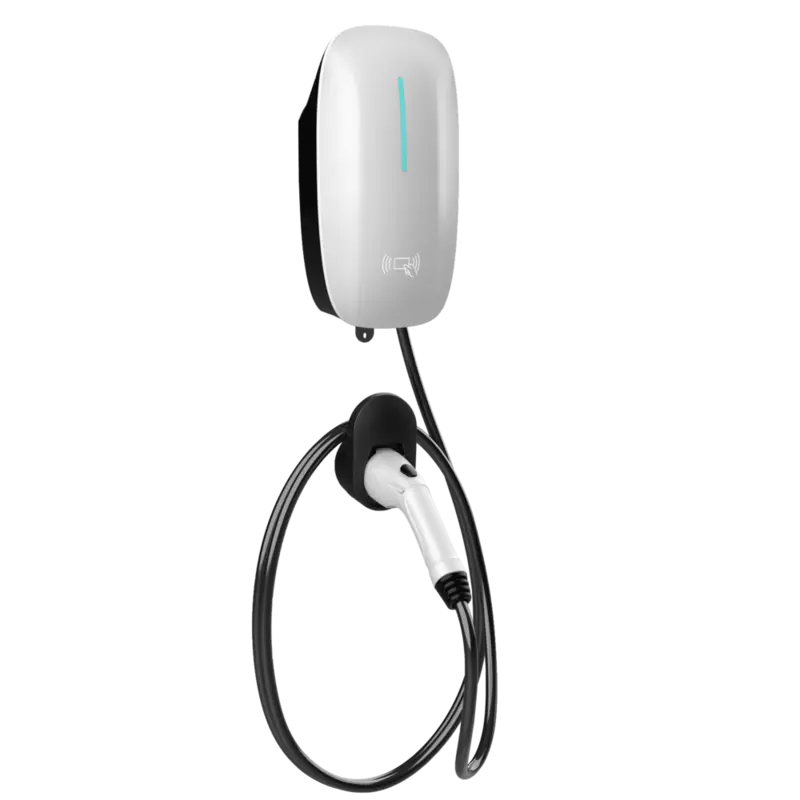

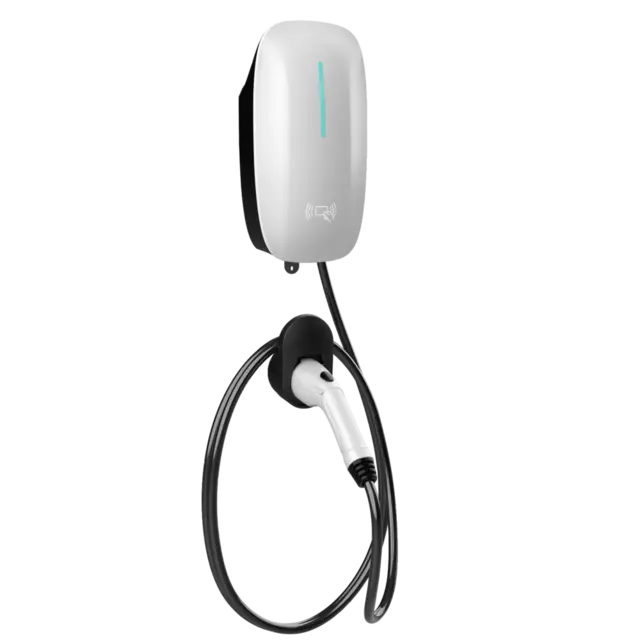

Home AC EV Charging Pile, 220V, 240V, 400V, 50Hz, 60Hz, IP55
Key Specifications / Features
Model no.: ACEVC-20240913-01
Hits: 2
As a leading home AC EV charging pile manufacturer from China, we offer chargers with IP55 protection and input frequencies of 50Hz/60Hz. Our units are equipped with optional 4G, Bluetooth, Swipe/NFC capabilities, and an anti-UV process for enhanced durability. Featuring an advanced injection-molded shell, they provide strong environmental adaptability and a long service life. With OTA remote upgrade functionality, our chargers ensure seamless performance and easy maintenance. Crafted with precision and designed for reliability, these charging piles are built to meet the demands of modern EV users.
Request a quote
Tags
Detail Information
Chinese National Standard
| Product Item: | Home AC EV Charging Pile |
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Voltage: | 220V AC, 380V AC |
| Input Frequency: | 50Hz, 60Hz |
| Output Voltage: | 220V AC, 380V AC |
| Protection Class: | IP55 |
| Charging Interface: | GB/T 20234.2 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Ambient Humidity: | RH5% - 95% |
| Communication Mode: | 4G/Ethernet |
| Dimension (W*H*D): |
358*190*27mm |

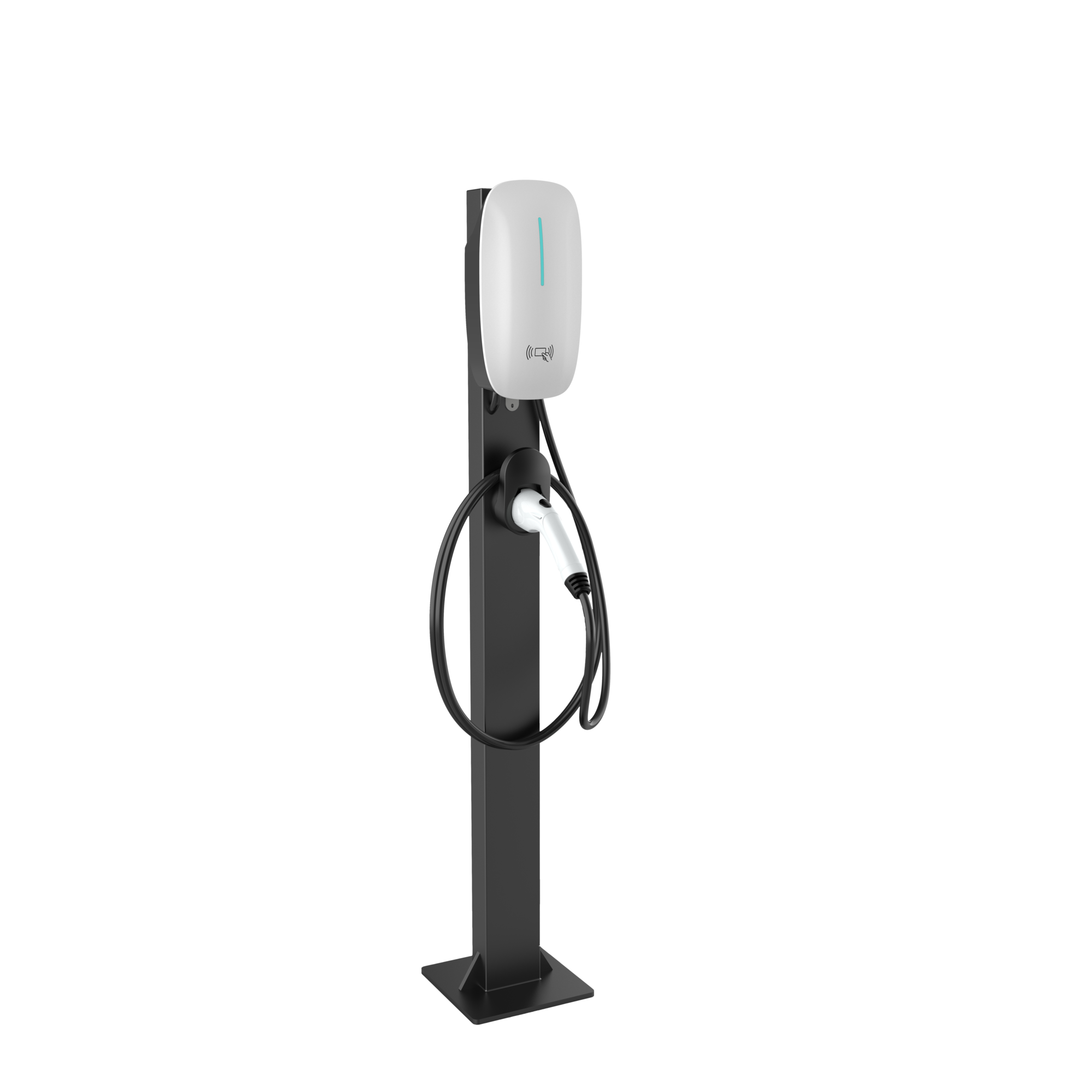

| Mounting Type: | Wall, Pole |
European Standard
| Power Specification: | 3.5kW, 7kW, 11kW, 21kW |
| Input Frequency: | 50Hz, 60Hz |
| Input Voltage: | 220V AC, 400V AC |
| Output Voltage: | 220V AC, 400V AC |
| Charging Interface: | IEC 62196 Type 2 |
| Ambient Humidity: | RH5% - 95% |
| Protection Class: | IP55 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Dimension (W*H*D): | 358*190*27mm |
| Mounting Type: | Wall, Pole |
American Standard
| Power Specification: | 7kW, 9.6kW, 11kW, 18kW |
| Input Frequency: | 50Hz, 60Hz |
| Input Voltage: | 240V AC |
| Output Voltage: | 120V AC, 240V AC |
| Charging Interface: | IEC 62196 Type 1 |
| Ambient Humidity: | RH5% - 95% |
| Protection Class: | IP55 |
| Operating Temperature: | -30°C to 60°C |
| Working Altitude: | ≤4500m |
| Startup Mode: | Plug and Play/Swipe/Scan/NFC/Bluetooth |
| Dimension(W*H*D): | 358*190*27mm |
| Mounting Type: | Wall, Pole |
Features: Optional 4G, Bluetooth, and Swipe/NFC smart charging configurations, with a sleek design, Equipped with OTA remote upgrade functionality and an advanced injection-molded casing, UV-resistant, environmentally durable, and built with precision for a long service life.
