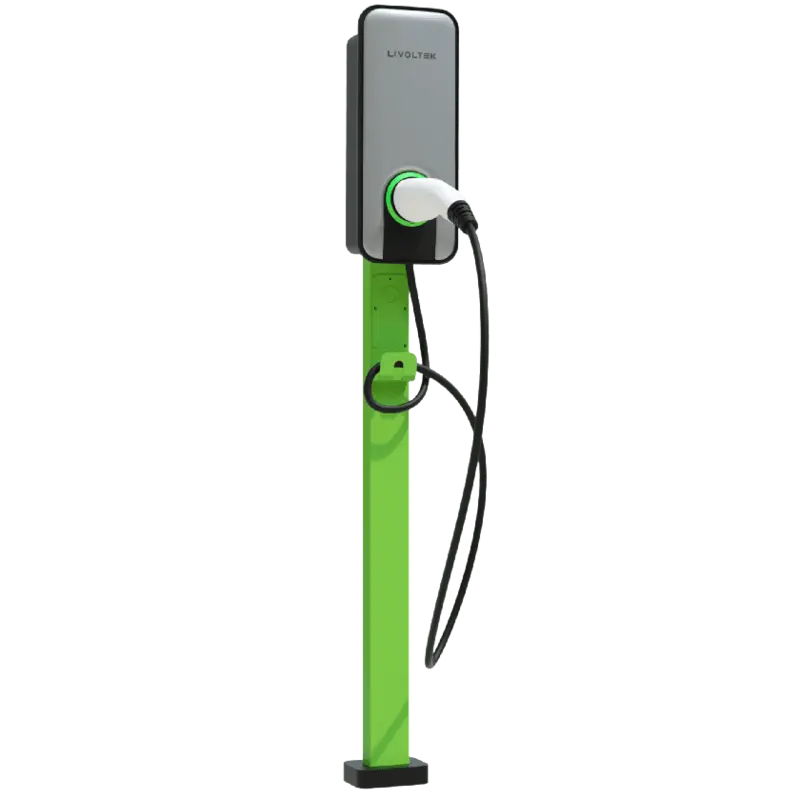

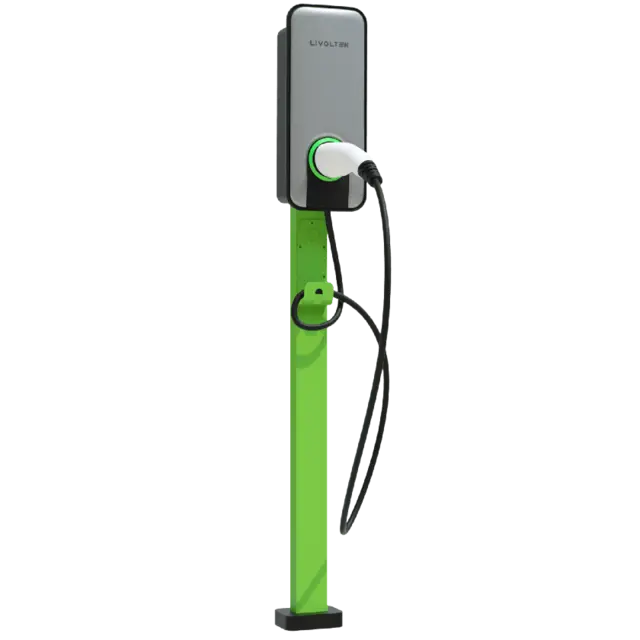

Home AC EV Charger, Three-phase, 11kW, 50Hz, 60Hz, IP54
Key Specifications / Features
Model no.: ACEVC-20240910-01
Hits: 4

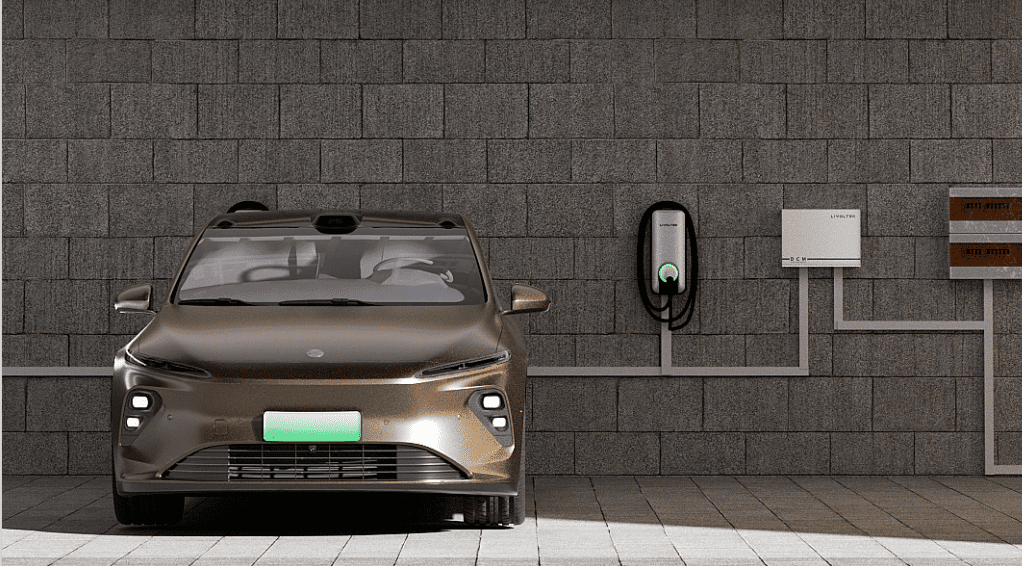

As a leading manufacturer of three-phase residential AC EV chargers in China, we offer an 11kW charger designed for efficient and reliable home charging. Operating at 400V AC ±10%, it supports both 50Hz and 60Hz frequencies, ensuring compatibility with various grid systems. The charger features IP54 protection, safeguarding against dust and water, and utilizes natural cooling for quiet, energy-efficient performance. Built for durability and optimal functionality, this charger delivers a seamless charging experience for electric vehicles in residential settings.
Request a quote
Tags
Detail Information
| Product Item: | AC EV Fast Charger |
| Interface Standard: | OCPP1.6 |
| IP Degree: | IP54 |
| Output Current: | AC |
| Output Power: | 11kW |
| Input Voltage: | 220V±10% |
| Current Range: | 6A-16A |
| Rated Voltage: | 230V AC±10% |
| Rated Frequency: | 50Hz, 60Hz |
| Charger Connector: | Type 2 |
| Way of Communication: | Bluetooth, Wi-Fi/Ethernet/4G Optional |
| Screen Size: | 4.3-inch Color Touch Screen |
| Length of Charging Plug: | 5M |
| Way of Installation: | Wall Mounted (Column Optional) |
| Size(H*W*D): | 170*400*110mm |
| Weight: | ≤3.8kg |
| Operating Temperature: | -30°C to +50°C |
| Storage Temperature: | -40°C to +70°C |
| Standby Power Consumption: | <5W |
| Electricity Measurement: | Build-in Metering Chip |
| Residual Current Protection: | 6mA DC RCD Internal |
| Multiple Protection: | With Over Voltage Protection, Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, and Short Circuit Protection. |
