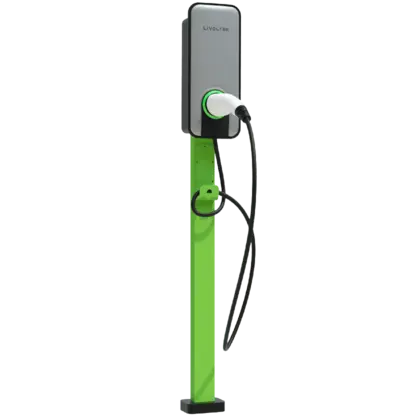

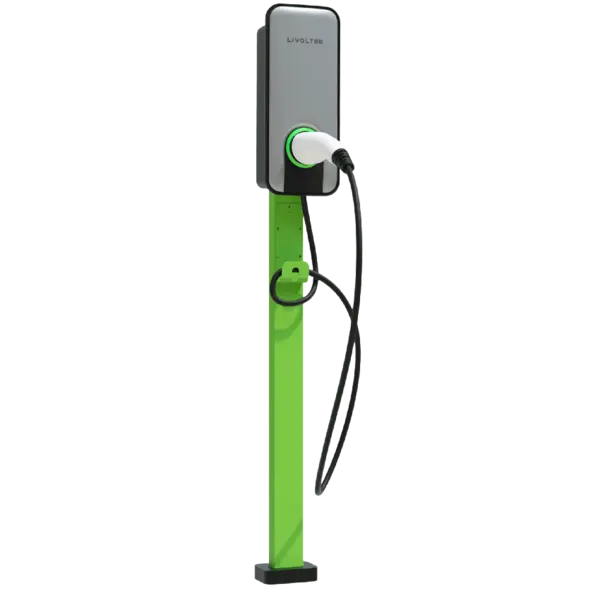

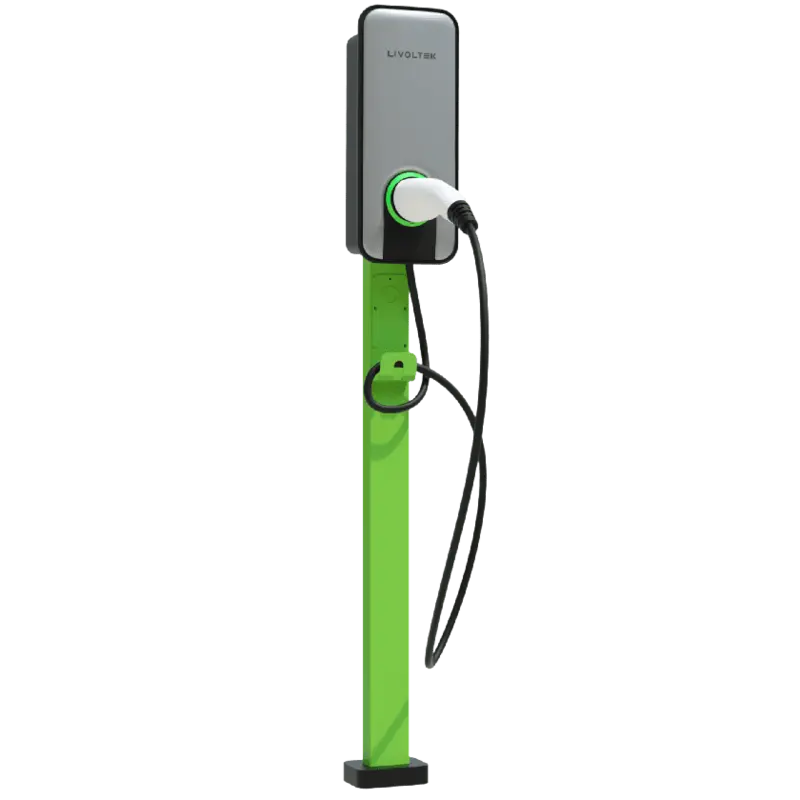

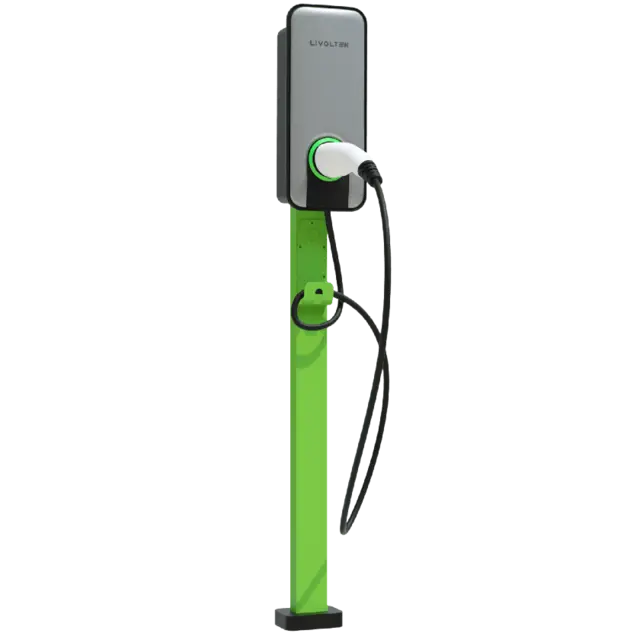

Three-phase Residential AC EV Charger, 22kW, 400V AC, IP54
Key Specifications / Features
Model no.: ACEVC-2024010-02
Hits: 1
As a trusted supplier of home AC EV chargers in China, we provide a high-performance, three-phase charger with a 22kW rated power output. Designed for residential use, it operates at 400V AC ±10% and supports both 50Hz and 60Hz frequencies. The charger features IP54 protection, ensuring resistance to dust and water, while its natural cooling system enhances energy efficiency and quiet operation. With a sleek wall-mounted design, this charger offers convenient and reliable home charging for electric vehicles, combining durability and performance for optimal charging at home.
Request a quote
Tags
Detail Information
| Product Item: | Home AC EV Fast Charger |
| Interface Standard: | OCPP1.6 |
| IP Protection: | IP54 |
| Output Current: | AC |
| Output Power: | 22kW |
| Input Voltage: | 220V±10% |
| Current Range: | 6A-32A |
| Rated Voltage: | 400V AC±10% |
| Rated Frequency: | 50Hz, 60Hz |
| Charger Connector: | Type 2 |
| Way of Communication: | Bluetooth, Wi-Fi/Ethernet/4G Optional |
| Screen Size: | 4.3-inch Color Touch Screen |
| Length of Charging Plug: | 5 Meter |
| Way of Installation: | Wall Mounted (Column Optional) |
| Size(H*W*D): | 170*400*110mm |
| Weight: | ≤5.1kg |
| Operating Temperature: | -30°C to +50°C |
| Storage Temperature: | -40°C to +70°C |
| Standby Power Consumption: | <5W |
| Multiple Protection: | With Over Voltage Protection, Voltage Protection, Overcurrent Protection, Grounding Protection, Surge Protection, Short Circuit Protection. |
| Electricity Measurement: | Build-in Metering Chip |
| Residual Current Protection: | 6mA DC RCD Internal |
