As electric vehicles (EVs) become increasingly popular, the need for efficient and rapid charging solutions is more pressing than ever. DC Fast Charging, a pivotal technology in the EV charging landscape, promises to address these needs by significantly reducing charging times. This article explores the intricacies of DC Fast Charging, detailing how it works, its various types, and its practical applications.
DC Fast Charging is a game-changer in the world of electric vehicle infrastructure. Unlike standard Level 1 and Level 2 chargers, which use alternating current (AC) and require the vehicle's onboard charger to convert it to direct current (DC), DC Fast Charging bypasses this step by delivering DC power directly to the vehicle's battery. Here’s a closer look at the process:
DC Fast Chargers utilize high-voltage power sources, typically ranging from 400V to 800V, depending on the charger and the vehicle’s requirements. This high voltage allows for rapid energy transfer, which is essential for quick charging.
The charging station itself converts the AC power from the grid into DC power. This is a crucial step because electric vehicle batteries are designed to store and use direct current. By handling the conversion at the charging station, DC Fast Charging minimizes the time the vehicle spends connected to the charger.
The connection between the charger and the vehicle is made through a high-power cable that is typically equipped with specialized connectors. These connectors are designed to handle high current and ensure a secure and efficient connection.
Once connected, the charger and the vehicle’s battery management system communicate to establish optimal charging parameters. This includes factors like the current level, voltage, and maximum allowable charge rate, ensuring that the battery is charged safely and efficiently.
The DC power is then delivered directly to the battery at a high rate, significantly reducing the time required to achieve a full charge. Depending on the vehicle and charger, this process can replenish 80% of the battery’s capacity in as little as 20 to 30 minutes.
The rate at which an EV accepts charge can vary based on its design and state of charge. DC Fast Chargers are designed to accommodate a wide range of acceptance rates, ensuring compatibility with various EV models.
The charging curve refers to the rate at which the battery receives power over time. Initially, the charging rate is high, but it gradually decreases as the battery approaches full charge to protect battery health. This curve is managed by the vehicle’s battery management system and the charger.

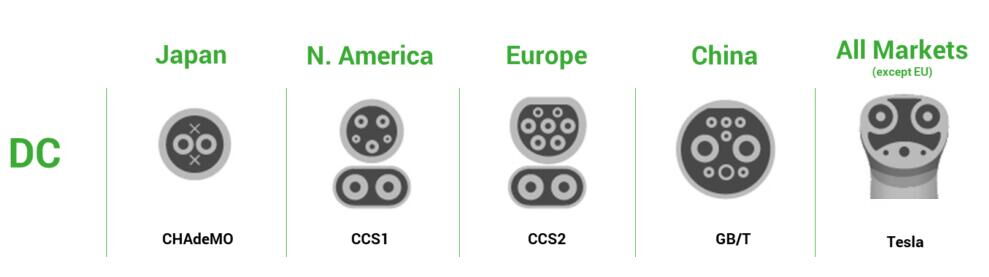

DC Fast Charging is essential for the rapid recharging of electric vehicles (EVs), offering significant advantages over traditional AC charging. However, it’s important to note that there isn’t a one-size-fits-all solution when it comes to DC fast charging. Different regions and automakers have adopted various charging standards, each with its unique features and capabilities. Here’s an in-depth look at the most prominent types of DC fast charging systems:
CHAdeMO, which stands for “CHArge de MOve,” is a fast-charging standard that was developed in Japan and is widely adopted in Asia. This standard is supported by several major automakers, including Nissan and Mitsubishi, and provides a reliable and efficient method for rapid charging. The CHAdeMO system typically supports charging rates up to 62.5 kW, allowing for a substantial charge within a relatively short amount of time. Although it was once one of the dominant DC fast-charging standards, its adoption is gradually being replaced by other systems in regions like Europe and North America.
The Combined Charging System (CCS) is rapidly becoming the global standard, particularly in Europe and North America. CCS integrates both AC and DC charging capabilities into a single connector, making it incredibly versatile and convenient. This hybrid system supports much higher charging rates, with some versions reaching up to 350 kW, allowing for ultra-fast recharging. Many EV manufacturers, including BMW, Volkswagen, and Ford, have adopted CCS for their vehicles. The widespread adoption of CCS is a significant step toward standardizing fast-charging infrastructure worldwide, ensuring compatibility across a range of electric vehicles.
Tesla has created its own proprietary DC fast-charging network known as the Tesla Supercharger. Exclusive to Tesla vehicles, this network offers some of the fastest charging rates available today. Tesla’s Supercharger stations are strategically placed to ensure that drivers can quickly recharge their cars while on long trips. Depending on the version of the Supercharger, Tesla’s system can deliver charging rates up to an impressive 250 kW, providing a substantial charge in a short period. Tesla has continued to expand its Supercharger network globally, making it a central element of the Tesla ownership experience. However, because this network is specific to Tesla cars, its use is limited to non-Tesla vehicles unless adapters are used or Tesla opens the network to other manufacturers in the future.
In China, the GB/T standard is used for DC fast charging and has become the predominant charging system in the Chinese electric vehicle market. Unlike CHAdeMO or CCS, the GB/T connectors are specific to China and are not widely used outside of the country. With charging rates that can reach up to 240 kW, GB/T provides fast recharging times for vehicles in China, supporting the country’s rapidly growing EV fleet. Automakers like BYD, NIO, and Geely rely on the GB/T standard for their electric vehicles, making it an integral part of China’s EV infrastructure.
DC Fast Charging is ideal for scenarios where quick turnaround is essential, such as long-distance travel or busy urban environments. It is typically found at highway rest stops, dedicated charging stations, and some urban locations.
To use DC Fast Charging, simply locate a compatible charging station, connect your vehicle, and follow the on-screen instructions or app prompts. Most DC Fast Chargers are user-friendly and offer payment options through various methods, including credit cards or mobile apps.
Not all electric vehicles are compatible with DC Fast Chargers. Compatibility depends on the vehicle’s charging port and the standards supported by the charger. While many modern EVs are equipped to handle DC Fast Charging, older models or those with proprietary charging systems might not be compatible.
The kilowatt (kW) output of DC fast chargers can vary widely depending on factors such as the charger’s location, the specific make and model, and the overall design. Generally, DC fast chargers fall into two main categories: standalone and split systems.

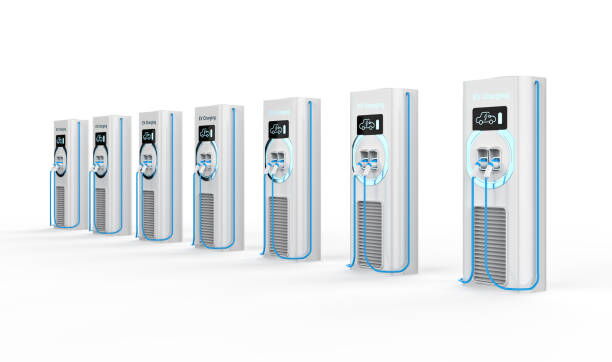

Standalone DC fast chargers consist of a single unit and typically offer power outputs ranging from 50 kW to 250 kW. These chargers are commonly found in public charging stations and are designed for a wide range of vehicles, providing relatively quick charging times.
On the other hand, split DC fast charging stations have a two-part design: one unit for the user interface and another for the power delivery system. These chargers usually provide higher power outputs, ranging from 175 kW to 350 kW. Split chargers are ideal for faster charging needs, typically found in high-traffic areas or commercial applications where quick turnaround times are essential.
DC Fast Charging represents a significant advancement in EV infrastructure, enabling rapid and efficient charging that supports the growing adoption of electric vehicles. By delivering high-voltage DC power directly to the battery, this technology minimizes charging times and enhances the convenience of owning an EV. As the EV market continues to expand, the evolution of DC Fast Charging and its infrastructure will play a crucial role in shaping the future of transportation.
