Introduction

The rise of electric vehicles (EVs) has transformed the global transportation landscape, offering a sustainable and efficient alternative to traditional fossil-fuel-powered vehicles. Among the various technological aspects of EVs, the State of Charge (SOC) holds a pivotal role. SOC is a metric that not only informs drivers about the battery's current charge level but also influences decisions related to EV charging, driving, and overall energy management.

In this detailed exploration, we’ll uncover the intricacies of SOC, the methods used to determine it, its impact on battery performance and health, challenges in its accurate measurement, and its future potential in the EV ecosystem and beyond.



EV Charging Management Software

What is SOC?

SOC, or State of Charge, represents the amount of energy remaining in an EV’s battery, expressed as a percentage of the battery's total capacity. A fully discharged battery reflects an SOC of 0%, while a fully charged one displays 100%.

For EV drivers, SOC serves as a critical indicator of the battery's available energy. This information:

1. Enables Driving Range Estimation

SOC helps determine how far the vehicle can travel before requiring a recharge.

2. Supports Trip Planning

It allows drivers to plan charging stops effectively, reducing range anxiety.

3. Ensures Battery Health

By adhering to optimal SOC ranges, drivers can prolong battery life and enhance overall vehicle performance.

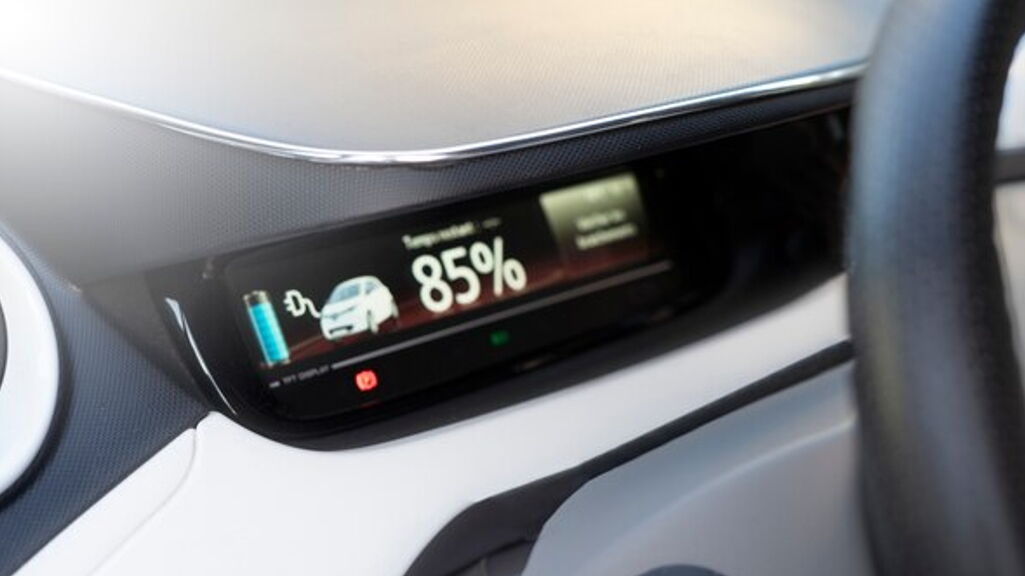

Modern EVs integrate SOC monitoring systems into their dashboards, mobile apps, and even voice assistant features, providing real-time updates to drivers. This seamless integration ensures that users are always informed about their vehicle’s charge status, even while on the move.

How SOC is Determined

Accurate SOC measurement is fundamental to EV functionality. Various methodologies are used, each with its own advantages and challenges.

1. Coulomb Counting

Principle: This technique calculates SOC by measuring the flow of electric charge (in amperes) into and out of the battery over time.

Advantages: It provides dynamic, continuous updates and is relatively simple to implement.

Challenges: Over time, errors may accumulate due to factors such as sensor drift, temperature variations, or inconsistencies in battery behavior.

2. Open Circuit Voltage (OCV)

Principle: OCV measures the battery's voltage when it is at rest (no load applied) and correlates it directly with the SOC.

Advantages: OCV offers a quick and straightforward assessment of remaining energy.

Challenges: External factors, such as temperature fluctuations and battery aging, can affect accuracy.

3. Hybrid Methods

Many modern EVs combine Coulomb Counting and OCV with advanced algorithms to enhance SOC accuracy. These hybrid systems account for real-world conditions, such as temperature, aging effects, and driving patterns.

4. Machine Learning and Predictive Models

Emerging technologies use AI-powered predictive models to refine SOC estimates further. These systems analyze historical data, battery usage patterns, and environmental conditions to improve accuracy.

The Crucial Role of SOC in EVs

SOC is more than just a numerical indicator; it is a cornerstone of EV performance, safety, and sustainability. Below are some key roles SOC plays:

1. Preventing Battery Damage

Optimal Range: Batteries perform best when their SOC is maintained between 20% and 80%. Operating outside this range—by either fully charging or deeply discharging—can lead to cell degradation.

BMS Intervention: The Battery Management System (BMS) relies on SOC data to protect battery cells, ensuring they are neither overcharged nor discharged to critically low levels.

2. Maximizing Vehicle Performance

SOC directly influences the power delivery and acceleration capabilities of an EV. Most batteries provide optimal performance within specific SOC ranges, typically between 20% and 80%, though this may vary depending on battery chemistry.

3. Estimating Driving Range

SOC is integral to determining the EV’s driving range.

While range depends on several factors—such as battery capacity, vehicle weight, and driving habits—SOC provides a baseline for accurate trip planning.

4. Improving Energy Efficiency

Regenerative Braking: SOC is critical in managing regenerative braking systems, which recover energy during deceleration. Efficient SOC management ensures that recovered energy is effectively stored, extending driving range.

Energy Optimization: By maintaining precise SOC readings, energy waste is minimized, and overall vehicle efficiency improves.

5. Ensuring Safe Charging Practices

SOC data is essential during charging sessions. The BMS adjusts the charging rate dynamically based on SOC, employing techniques like:

Trickle Charging: A slower charge rate used when the battery nears full capacity.

Fast Charging Control: Regulating current and voltage during rapid charging to prevent overheating and overcharging.

The BMS also ensures uniform voltage across individual cells, which is vital for battery health and safety.

Impact on Battery Health

SOC management is instrumental in maintaining long-term battery health. Proper handling of SOC can:

Prolong Battery Life: Avoiding extremes—such as full charges and deep discharges—reduces stress on battery cells.

Enhance Safety: Maintaining an optimal SOC range reduces risks of thermal runaway and other safety hazards.

Improve Resale Value: A well-maintained battery with healthy SOC habits enhances the resale value of the vehicle.

SOC Challenges

Despite its importance, SOC management presents several challenges:

Measurement Accuracy: External factors, such as temperature, driving conditions, and battery aging, can impact SOC readings.

Dynamic Driving Conditions: Frequent acceleration, deceleration, and varying loads make it difficult to predict SOC consistently.

Battery Variability: Differences in battery chemistries and designs necessitate customized SOC algorithms, adding complexity.

Future Innovations in SOC Management

Advancements in technology are paving the way for more sophisticated SOC systems. Innovations include:

1. AI-Powered SOC Algorithms

Machine learning models that analyze real-time and historical data to improve prediction accuracy.

2. Integrated IoT Sensors

These sensors provide continuous monitoring of battery health, environmental conditions, and SOC.

3. Smart Grid Connectivity

SOC data can be integrated with smart grids, enabling dynamic energy management and optimized charging schedules.

4. Bidirectional Charging Solutions

SOC plays a key role in vehicle-to-grid (V2G) systems, allowing EVs to feed power back to the grid during peak demand periods.

SOC in EV Charging Stations

Charging infrastructure is evolving to enhance SOC management. Modern EV chargers incorporate:

Dynamic Charging Profiles

Adjusting current and voltage based on SOC to ensure efficient and safe charging.

Real-Time Updates

Providing drivers with SOC insights through mobile apps or station displays.

Ultra-Fast Charging

SOC data ensures that fast chargers operate safely, avoiding overcharging or overheating the battery.

SOC Beyond EVs

The principles of SOC extend to various other applications, including:

Home Energy Storage Systems: SOC monitoring ensures efficient utilization of stored energy in residential setups.

Renewable Energy Storage: SOC is critical in managing energy from solar panels and wind turbines, ensuring optimal performance.

Industrial Applications: Large-scale battery systems used in factories and warehouses rely on SOC to optimize operations and reduce costs.

Conclusion

State of Charge is a fundamental aspect of the EV ecosystem. It empowers drivers to make informed decisions, enhances battery safety, and optimizes vehicle performance. As the EV industry continues to grow, innovations in SOC management—driven by AI, IoT, and smart grid integration—promise to unlock new possibilities for sustainable and efficient energy use.

By understanding and leveraging SOC effectively, the future of electric mobility can be even brighter, ensuring a harmonious blend of technology, efficiency, and sustainability.
