What is a Level 3 Charger for Electric Vehicles?
On this page
As electric vehicles (EVs) gain popularity worldwide, the demand for faster, more efficient charging solutions has surged. Level 3 chargers, often known as "DC fast chargers," represent the pinnacle of charging technology for EVs, offering an unprecedented speed advantage over Level 1 and Level 2 chargers. This article explores what a Level 3 charger is, how it works, and why it plays a crucial role in the EV landscape.
Whereas Level 1 chargers use a standard 120-volt outlet and provide around 2–5 miles of range per hour, and Level 2 chargers use 240 volts to add about 10–25 miles per hour, Level 3 chargers are capable
Each connector type has advantages and is typically compatible with specific EV brands, leading to distinct Level 3 charger brand names like Tesla Superchargers, CHAdeMO chargers, or DC Fast Chargers. However, as the market continues to evolve, some companies are working on universal charging solutions to address this compatibility issue.
The higher power levels and direct delivery reduce energy losses and expedite the charging process. This efficiency is especially beneficial for high-capacity EV batteries, which would take significantly longer to charge on standard AC-based chargers.
Moreover, new technological advancements are already paving the way for even faster, more powerful Level 3 chargers. Ultra-fast charging stations, capable of delivering up to 350 kW, are already in operation in some locations, offering the promise of charging an EV to 80% capacity in under 20 minutes. As EV batteries and charging technology evolve, the efficiency and accessibility of Level 3 chargers will only improve, making EVs more practical and appealing to a wider audience.
What is a Level 3 Charger?

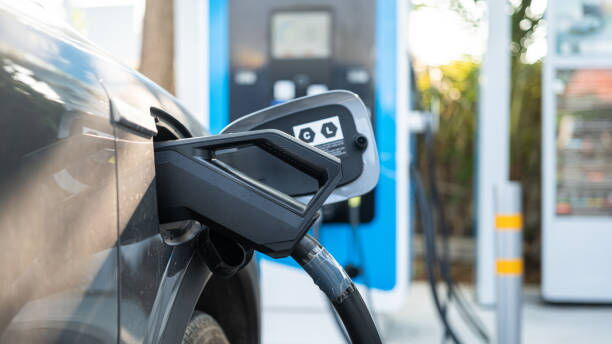

A Level 3 charger is a high-powered charging device specifically engineered to deliver rapid charging for electric vehicles. Unlike Level 1 and Level 2 chargers, which utilize alternating current (AC) and offer modest charging speeds, Level 3 chargers supply direct current (DC) at much higher voltages, significantly reducing the time required to charge an EV. This feature makes them ideal for EV drivers who need quick top-ups, especially during long trips.Whereas Level 1 chargers use a standard 120-volt outlet and provide around 2–5 miles of range per hour, and Level 2 chargers use 240 volts to add about 10–25 miles per hour, Level 3 chargers are capable
Types of Level 3 Charging Connectors
Unlike Level 1 and Level 2 chargers that commonly use the SAE J1772 connector—except for Tesla, which uses its proprietary design—Level 3 chargers lack a standard connector and instead support several connector types, each with different capabilities:1. Tesla Supercharger Connector

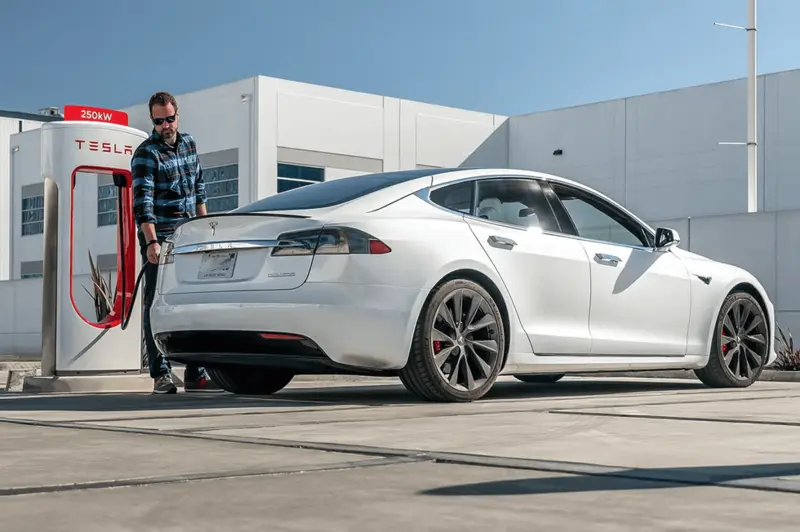

Tesla's Supercharger network uses a proprietary connector for fast charging, exclusive to Tesla vehicles. Tesla owners benefit from access to an extensive Supercharger network, known for its reliability and widespread availability across North America, Europe, and Asia.2. CHAdeMO Connector
The CHAdeMO connector, originally developed in Japan, is widely used by certain Asian automakers, including Nissan and Mitsubishi. Known for its reliability, CHAdeMO can deliver up to 62.5 kW of power, although newer versions now support higher output levels to accommodate faster charging needs.3. Combined Charging System (CCS)

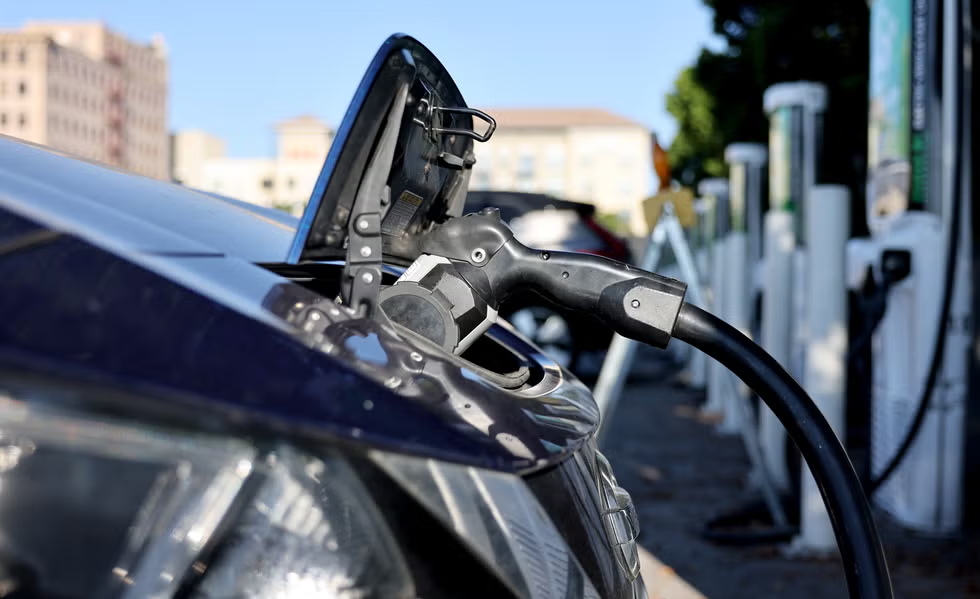

The Combined Charging System, or CCS, has emerged as a popular option in Europe and North America. This connector builds on the SAE J1772 standard used in Level 1 and 2 chargers by adding two additional pins for DC fast charging. CCS supports higher power outputs, with some stations delivering up to 350 kW, which is more than sufficient for the fastest charging EVs currently available.Each connector type has advantages and is typically compatible with specific EV brands, leading to distinct Level 3 charger brand names like Tesla Superchargers, CHAdeMO chargers, or DC Fast Chargers. However, as the market continues to evolve, some companies are working on universal charging solutions to address this compatibility issue.
Level 3 Charging Technology: How It Works
The key differentiator for Level 3 chargers is their ability to deliver DC power directly to the vehicle's battery at high voltages, usually 400–800 volts or even higher in some advanced systems. While Level 1 and Level 2 chargers must rely on the car’s onboard charger to convert AC from the grid into DC, a Level 3 charger performs this AC-to-DC conversion within the charging station itself, allowing for a much faster, more direct power transfer.The higher power levels and direct delivery reduce energy losses and expedite the charging process. This efficiency is especially beneficial for high-capacity EV batteries, which would take significantly longer to charge on standard AC-based chargers.
Advantages of Level 3 Charging
Level 3 chargers are designed to provide a rapid boost of power, making them essential for EV drivers who need to recharge quickly while on the road. Here are some key benefits of Level 3 charging:1. Speed and Convenience
The primary advantage of Level 3 chargers is their speed. With the ability to add hundreds of miles of range in under an hour, they are ideal for drivers making long trips who need to charge quickly before continuing their journey.2. Increased Accessibility for Long-Distance Travel
Level 3 chargers are often strategically located along highways and major routes, making it convenient for EV drivers to find a fast-charging station when they need it most. This network expansion enhances the feasibility of long-distance travel in electric vehicles.3. Efficient Energy Delivery
Since Level 3 chargers bypass the need for an onboard AC-to-DC converter, they can deliver energy more efficiently, translating into less time and energy wasted during the charging process. This advantage not only benefits EV owners but also supports grid efficiency, as more energy is transferred directly to where it is needed.Limitations and Considerations
Despite their benefits, there are a few limitations and considerations associated with Level 3 chargers:1. Cost and Accessibility
Level 3 chargers are significantly more expensive to install and operate than Level 1 or 2 chargers due to their high power output and infrastructure requirements. As a result, they are typically installed in high-traffic areas where frequent use can justify the investment.2. Battery Wear Over Time
Although Level 3 chargers offer unmatched convenience, frequent high-power charging can accelerate battery degradation in some EVs. To maintain battery health, EV manufacturers often recommend limiting fast charging to instances when it is truly needed, using Level 1 or Level 2 charging for everyday needs.3. Compatibility Issues
The lack of a universal standard for Level 3 connectors can be inconvenient for EV drivers. While Tesla owners can easily access the Supercharger network, other EV owners must check if a specific fast-charging station is compatible with their vehicle’s connector type (CHAdeMO or CCS).The Role of Level 3 Chargers in the Future of EVs
As the demand for electric vehicles continues to rise, the role of Level 3 chargers will likely expand significantly. Government incentives and private investments are helping to build an extensive network of Level 3 chargers, especially along highways and in urban centers, which will encourage more people to make the switch to electric vehicles.Moreover, new technological advancements are already paving the way for even faster, more powerful Level 3 chargers. Ultra-fast charging stations, capable of delivering up to 350 kW, are already in operation in some locations, offering the promise of charging an EV to 80% capacity in under 20 minutes. As EV batteries and charging technology evolve, the efficiency and accessibility of Level 3 chargers will only improve, making EVs more practical and appealing to a wider audience.
